GSV50

Toyota CAMRY-VISTA-AURION · 2011 · 5,992 parts · 373 categories
GSV50 ×

← Back to categories

5,992 items

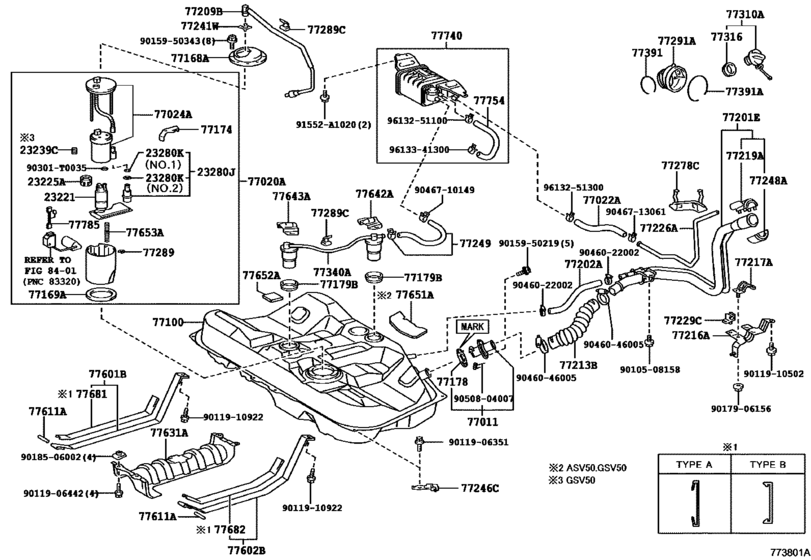

Fuel Tank & Tube ([04.2015 - ] FUEL TANK (1504- )) 90
#OEMPart name
23221 23220-31510 Pump, Fuel
23225 23225-21010 Spacer, Fuel Pump
23239 23239-21010 Seal, Fuel Pump Filter
23280 23280-38020 Valve Assy, Fuel Main
23280 90301-04013 Ring, O(For Fuel Pump)
23280 90301-15024 Ring, O(For Fuel Pump)
77011 77011-02040 Pipe Sub-Assy, Fuel Tank Filler, Lower
77011 77011-06010 Pipe Sub-Assy, Fuel Tank Filler, Lower
77020 77020-06411 Tube Assy, Fuel Suction W/pump & Gage
77022 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77024 77024-06280 Plate Sub-Assy, Fuel Suction
77100 77001-06092 Tank Assy, Fuel
77100 77001-06071 Tank Assy, Fuel
77168 77168-33050 Plate, Fuel Tank Vent Tube Set
77169 77169-33020 Gasket, Fuel Pump Bracket
77174 77174-33050 Support, Fuel Suction, No.1
77178 77178-0A010 Gasket, Fuel Tank Filler Pipe, Lower
77178 77178-YC010 Gasket, Fuel Tank Filler Pipe, Lower
77179 77179-33010 Gasket, Fuel Tank Evap/vent Tube
77201 77201-06110 Pipe Sub-Assy, Fuel Tank Filler
77201 77201-06111 Pipe Sub-Assy, Fuel Tank Filler
77201 77300-12020 Cap Assy, Fuel Tank
77201 77201-06130 Pipe Sub-Assy, Fuel Tank Filler
77201 77201-06131 Pipe Sub-Assy, Fuel Tank Filler
77202 95312-13024 Hose, Fuel, No.1 (For Breather Tube)
77202 95313-13024 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77209 77209-33040 Tube Sub-Assy, Fuel Pump
77213 77213-06030 Hose, Fuel Tank To Filler Pipe
77213 77213-33050 Hose, Fuel Tank To Filler Pipe
77213 77213-33120 Hose, Fuel Tank To Filler Pipe
77216 77216-06080 Support, Fuel Tank Filler Pipe, No.1
77216 77216-06090 Support, Fuel Tank Filler Pipe, No.1
77217 77217-06070 Support, Fuel Tank Filler Pipe, No.2
77217 77217-06080 Support, Fuel Tank Filler Pipe, No.2
77219 77219-06080 Cover, Fuel Tank Filler Pipe
77226 77226-06050 Tube, Fuel Tank Breather, No.6
77226 77226-06111 Tube, Fuel Tank Breather, No.6
77226 77226-33040 Tube, Fuel Tank Breather, No.6
77229 77229-33090 Clamp, Breather Tube
77241 77241-33011 Clip, Tube Joint
77246 77246-33020 Support, Fuel Main Tube
77248 77248-06090 Holder, Fuel Tank Filler Pipe Cover
77249 77249-33090 Hose, Fuel Emission
77278 77278-06040 Protector, Fuel Tank Filler Pipe, No.2
77278 77278-33030 Protector, Fuel Tank Filler Pipe, No.2
77289 77289-52090 Holder, Fuel Tank Pipe Setting
77289 90464-00745 Clamp, Fuel Tube, No.4
77291 77291-06120 Shield, Fuel Tank Filler Pipe
77310 77300-52030 Cap Assy, Fuel Tank
77316 77316-52040 Gasket, Fuel Tank Cap
77340 77340-33020 Valve Assy, Fuel Cut Off W/tube
77391 77391-12020 Ring, Fuel Inlet Box
77391 77391-06110 Ring, Fuel Inlet Box
77391 77391-33040 Ring, Fuel Inlet Box
77601 77601-06020 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-06020 Band Sub-Assy, Fuel Tank, No.1 Lh
77611 90250-08019 Pin (For Fuel Tank Band)
77631 77631-06050 Protector, Fuel Tank, Lower Center
77642 77642-33040 Protector, Fuel Tank, No.2
77643 77643-33030 Protector, Fuel Tank, No.3
77651 77651-06030 Cushion, Fuel Tank, No.1
77652 77652-06070 Cushion, Fuel Tank, No.2
77653 77652-06040 Cushion, Fuel Tank, No.3
77681 77681-32060 Seat, Fuel Tank Band, Rh
77681 77681-YC010 Seat, Fuel Tank Band, Rh
77740 77740-33160 Canister Assy, Charcoal
77754 77754-33030 Hose, Fuel(For Charcoal Canister)
77785 77785-33100 Harness, Fuel Pump
90301 90301-T0035 Ring, O(For Fuel Pump)
91552 91552-A1020 New Genuine Part
9010508158 90105-08158 Plug(For Fuel Sub-Tank)
9011906351 90119-06351 New Genuine Part
9011906442 90119-06442 BOLT WWASHER
9011910502 90119-10502 BOLT WWASHER
9011910922 90119-10922 BOLT WWASHER
9011910922 90080-11654 New Genuine Part
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9015950343 90159-50343 SCREW, W-WASHER
9017906156 90179-06156 Nut (For Transmission Control Cable)
9018506002 90185-06002 NUT CLIP
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046005 90460-46005 Clamp (For Fuel Filler Pipe)
9046710149 90467-10149 Clip, No.2(For Idle-Up Hose)
9046713061 90467-13061 Crip (For Fuel Tank Filler Pipe)
9050804007 90508-04007 New Genuine Part
9613251100 96132-51100 Clip (For Hose)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
9613341300 96133-41300 Clip(For Air Hose No.6)
