Search › Model › GSV50
GSV50

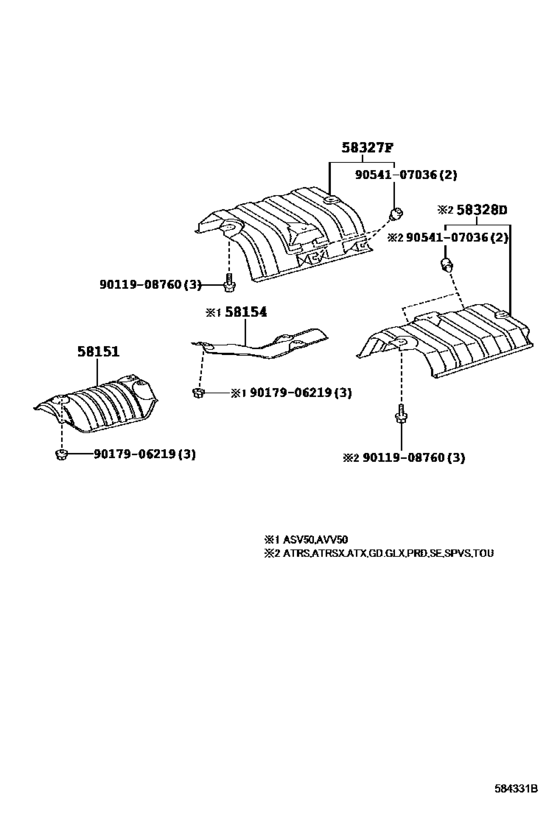

Floor Insulator ([10.2011 - ] (1110- )) 7
| # | OEM | Part name |
|---|---|---|
| 58151 | 58152-06070 | Insulator, Front Floor Heat, No.1 |
| 58327 | 58327-06040 | Insulator, Main Muffler Heat, Rh |
| 58328 | 58328-06030 | Insulator, Main Muffler Heat, Lh |
| 9011908760 | 90119-08760 | Bolt |
| 9017906219 | 90179-06219 | Nut |
| 9017906219 | 90182-A0005 | Nut |
| 9054107036 | 90541-07036 | CUSHION |
| OEM | Part name | Category |
|---|---|---|
| 58152-06070 | Insulator, Front Floor Heat, No.1 | Floor Insulator ([10.2011 - ] (1110- )) |
| 58327-06040 | Insulator, Main Muffler Heat, Rh | Floor Insulator ([10.2011 - ] (1110- )) |
| 58328-06030 | Insulator, Main Muffler Heat, Lh | Floor Insulator ([10.2011 - ] (1110- )) |
| 90119-08760 | Bolt | Floor Insulator ([10.2011 - ] (1110- )) |
| 90179-06219 | Nut | Floor Insulator ([10.2011 - ] (1110- )) |
| 90182-A0005 | Nut | Floor Insulator ([10.2011 - ] (1110- )) |
| 90541-07036 | CUSHION | Floor Insulator ([10.2011 - ] (1110- )) |
