Search › Model › GSV50

GSV50

Toyota CAMRY-VISTA-AURION · 2011 · 5,992 parts · 373 categories

← Back to categories

5,992 items

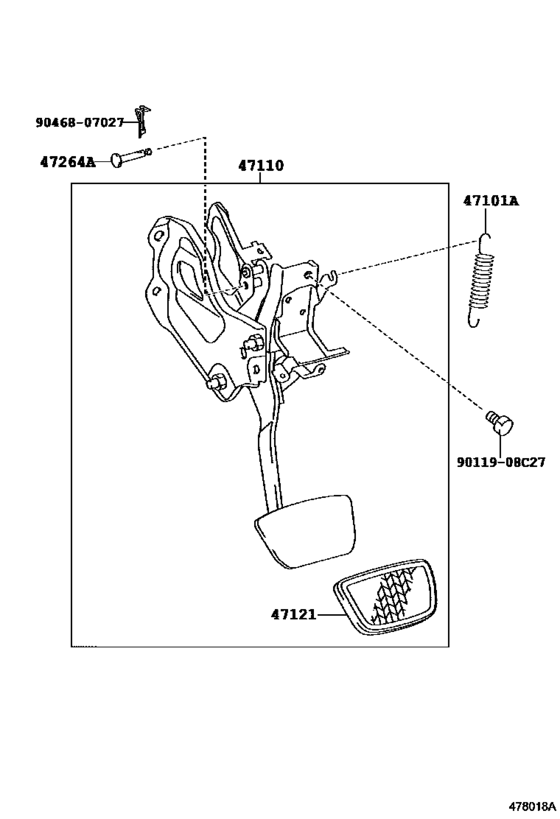

Brake Pedal & Bracket ([02.2012 - ] (1110- )ASV50..ARL ; (1202- )AVV50,GSV50.. ARL) 7

#	OEM	Part name
47101	90507-12046	Spring(For Brake Pedal Return)
47110	47110-33420	Support Assy, Brake Pedal
47110	47110-33421	Support Assy, Brake Pedal
47121	47121-53010	Pad, Brake Pedal
47264	90249-06180	Pin(For Push Rod)
9011908	90119-08C27	BOLT WWASHER
9046807027	90468-07027	Clip(For Push Rod Clevis Pin)

OEM	Part name	Category
47110-33420	Support Assy, Brake Pedal	Brake Pedal & Bracket ([02.2012 - ] (1110- )ASV50..ARL ; (1202- )AVV50,GSV50.. ARL)
47110-33421	Support Assy, Brake Pedal	Brake Pedal & Bracket ([02.2012 - ] (1110- )ASV50..ARL ; (1202- )AVV50,GSV50.. ARL)
47121-53010	Pad, Brake Pedal	Brake Pedal & Bracket ([02.2012 - ] (1110- )ASV50..ARL ; (1202- )AVV50,GSV50.. ARL)
90119-08C27	BOLT WWASHER	Brake Pedal & Bracket ([02.2012 - ] (1110- )ASV50..ARL ; (1202- )AVV50,GSV50.. ARL)
90249-06180	Pin(For Push Rod)	Brake Pedal & Bracket ([02.2012 - ] (1110- )ASV50..ARL ; (1202- )AVV50,GSV50.. ARL)
90468-07027	Clip(For Push Rod Clevis Pin)	Brake Pedal & Bracket ([02.2012 - ] (1110- )ASV50..ARL ; (1202- )AVV50,GSV50.. ARL)
90507-12046	Spring(For Brake Pedal Return)	Brake Pedal & Bracket ([02.2012 - ] (1110- )ASV50..ARL ; (1202- )AVV50,GSV50.. ARL)

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 373
Collected: 2026-08-02
