Search › Model › GSV50
GSV50

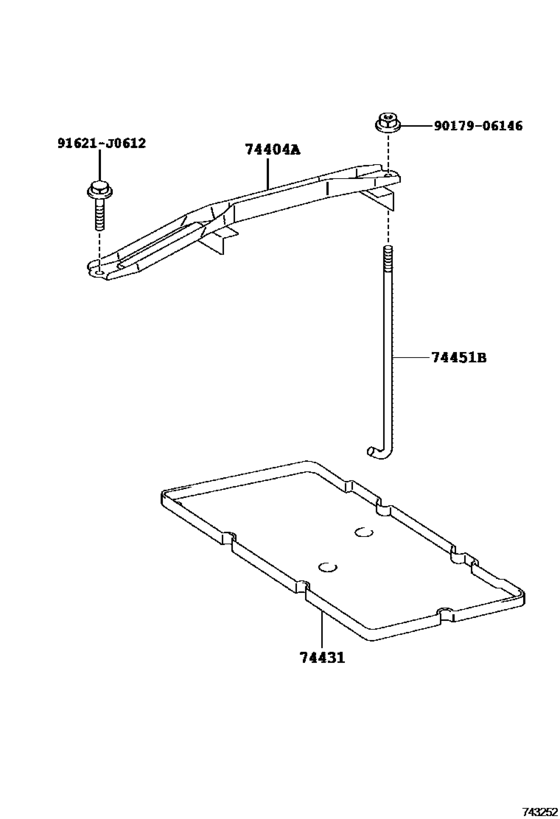

Battery Carrier ([10.2011 - ] (1110- )ASV50,GSV50) 5
| # | OEM | Part name |
|---|---|---|
| 74404 | 74404-06140 | Clamp Sub-Assy, Battery |
| 74431 | 74431-06040 | Tray, Battery |
| 74451 | 74452-33010 | Bolt, Battery Clamp |
| 91621 | 91621-J0612 | BOLT W-WASHER |
| 9017906146 | 90179-06146 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 74404-06140 | Clamp Sub-Assy, Battery | Battery Carrier ([10.2011 - ] (1110- )ASV50,GSV50) |
| 74431-06040 | Tray, Battery | Battery Carrier ([10.2011 - ] (1110- )ASV50,GSV50) |
| 74452-33010 | Bolt, Battery Clamp | Battery Carrier ([10.2011 - ] (1110- )ASV50,GSV50) |
| 90179-06146 | Nut | Battery Carrier ([10.2011 - ] (1110- )ASV50,GSV50) |
| 91621-J0612 | BOLT W-WASHER | Battery Carrier ([10.2011 - ] (1110- )ASV50,GSV50) |
