GSU55

Toyota HIGHLANDER-KLUGER · 2013 · 4,008 parts · 211 categories

← Back to categories

4,008 items

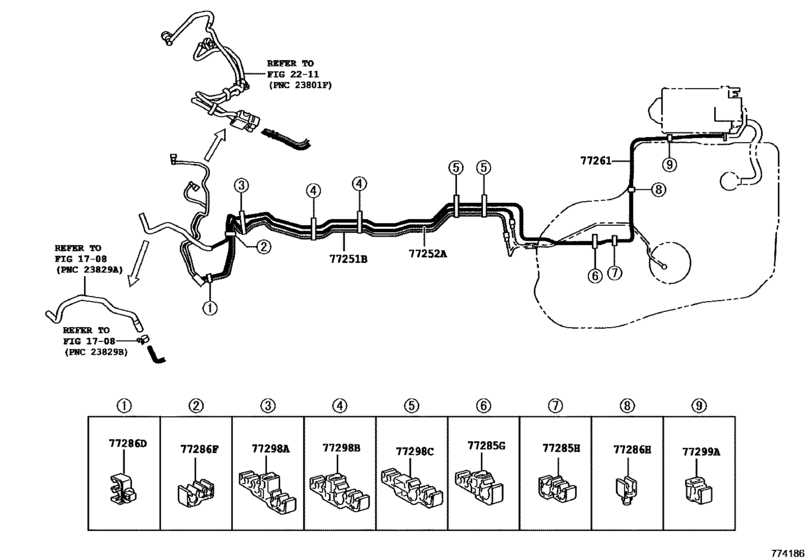

Fuel Tank & Tube ([11.2016 - ] FUEL TUBE (1611- )GSU5#) 12

#	OEM	Part name
77251	77251-0E160	Tube, Fuel Main
77252	77252-0E050	Tube, Fuel Main, No.2
77261	77261-0E140	Tube Sub-Assy, Fuel Emission
77285	77298-0E150	Clamp, Fuel Tube, No.1
77285	77298-0E160	Clamp, Fuel Tube, No.1
77286	77286-0E070	Clamp, Fuel Tube, No.2
77286	77286-0E080	Clamp, Fuel Tube, No.2
77286	77286-0E090	Clamp, Fuel Tube, No.3
77298	77298-0E120	Clamp, Fuel Tube, No.4
77298	77298-0E130	Clamp, Fuel Tube, No.4
77298	77298-0E140	Clamp, Fuel Tube, No.4
77299	77299-0E040	Clamp, Fuel Tube, No.5

OEM	Part name	Category
77251-0E160	Tube, Fuel Main	Fuel Tank & Tube ([11.2016 - ] FUEL TUBE (1611- )GSU5#)
77252-0E050	Tube, Fuel Main, No.2	Fuel Tank & Tube ([11.2016 - ] FUEL TUBE (1611- )GSU5#)
77261-0E140	Tube Sub-Assy, Fuel Emission	Fuel Tank & Tube ([11.2016 - ] FUEL TUBE (1611- )GSU5#)
77286-0E070	Clamp, Fuel Tube, No.2	Fuel Tank & Tube ([11.2016 - ] FUEL TUBE (1611- )GSU5#)
77286-0E080	Clamp, Fuel Tube, No.2	Fuel Tank & Tube ([11.2016 - ] FUEL TUBE (1611- )GSU5#)
77286-0E090	Clamp, Fuel Tube, No.3	Fuel Tank & Tube ([11.2016 - ] FUEL TUBE (1611- )GSU5#)
77298-0E120	Clamp, Fuel Tube, No.4	Fuel Tank & Tube ([11.2016 - ] FUEL TUBE (1611- )GSU5#)
77298-0E130	Clamp, Fuel Tube, No.4	Fuel Tank & Tube ([11.2016 - ] FUEL TUBE (1611- )GSU5#)
77298-0E140	Clamp, Fuel Tube, No.4	Fuel Tank & Tube ([11.2016 - ] FUEL TUBE (1611- )GSU5#)
77298-0E150	Clamp, Fuel Tube, No.1	Fuel Tank & Tube ([11.2016 - ] FUEL TUBE (1611- )GSU5#)
77298-0E160	Clamp, Fuel Tube, No.1	Fuel Tank & Tube ([11.2016 - ] FUEL TUBE (1611- )GSU5#)
77299-0E040	Clamp, Fuel Tube, No.5	Fuel Tank & Tube ([11.2016 - ] FUEL TUBE (1611- )GSU5#)

Source: Public OEM parts-catalog data
Variants: 2 / 25
Category: 211
Collected: 2026-08-03
