Search › Model › GSU55

GSU55

Toyota HIGHLANDER-KLUGER · 2013 · 4,008 parts · 211 categories

4,008 items

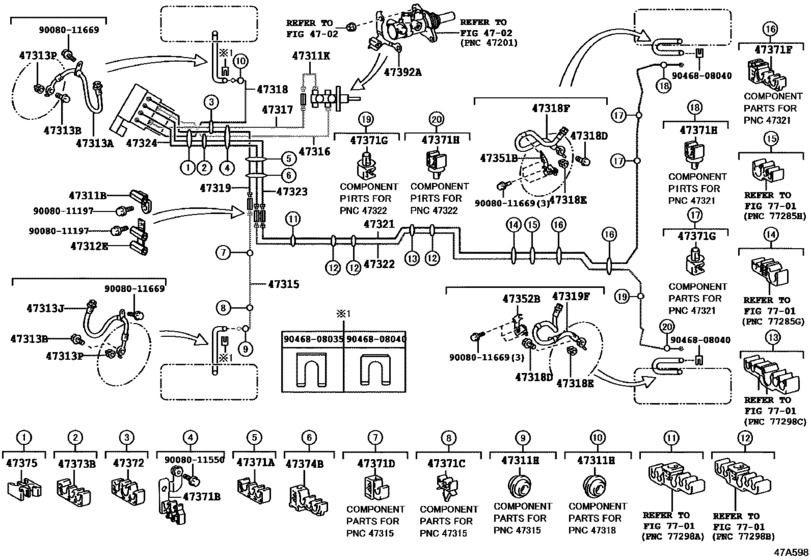

Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL) 40

#	OEM	Part name
47311	90412-10272	Way, No.1(For Front Brake Tube)
47311	90412-A0015	Way, No.1(For Front Brake Tube)
47311	90480-25033	Grommet(For Brake Tube)
47311	47311-48050	Tube, Brake Master Cylinder To Way
47312	90412-10293	Way, No.1(For Front Brake Tube)
47312	90412-A0013	Way, No.2(For Front Brake Tube)
47313	90947-A2093	Hose, Flexible, No.1(For Front)
47313	90401-A0001	Bolt, Union(For Front Flexible Hose)
47313	90947-A2094	Hose, Flexible, No.2(For Front)
47313	47389-50021	Gasket(For Front Flexible Hose)
47315	47315-0E062	Tube, Front Brake, No.5
47316	47316-0E140	Tube, Front Brake, No.6
47317	47317-0E140	Tube, Front Brake, No.7
47318	47318-0E130	Tube, Front Brake, No.8
47318	90947-A2095	Hose, Flexible(For Rear Rh)
47319	47319-0E150	Tube, Front Brake, No.9
47321	47321-0E120	Tube, Rear Brake, No.1
47322	47322-0E120	Tube, Rear Brake, No.2
47323	47323-0E150	Tube, Rear Brake, No.3
47324	47324-0E150	Tube, Rear Brake, No.4
47351	47351-0E010	Bracket, Flexible Hose, No.1
47352	47352-0E010	Bracket, Flexible Hose, No.2
47371	90080-46357	Clamp, Brake Tube, No.1
47371	90949-04057	Clamp, Brake Tube, No.8
47371	90949-01C00	Clamp, Height Control Tube No.10
47371	90949-A1020	Clamp, Brake Tube, No.8
47371	90080-46359	Clamp, Brake Tube, No.8
47371	90949-01D17	Clamp(For Clutch Master Cylinder Tube)
47371	90949-01E01	Clamp, Brake Tube, No.9
47372	90464-A0006	Clamp, Brake Tube, No.1
47373	90464-A0007	Clamp, Brake Tube, No.2
47374	90949-01C95	Clamp, Brake Tube, No.8
47375	90464-00876	Clamp, Brake Tube, No.1
47392	47392-48010	Way, Brake Tube, No.2
9008011197	90080-11197	New Genuine Part
9008011550	90080-11550	New Genuine Part
9008011669	90080-11669	New Genuine Part
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9046808040	90468-08040	CLIP

OEM	Part name	Category
47311-48050	Tube, Brake Master Cylinder To Way	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
47315-0E062	Tube, Front Brake, No.5	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
47316-0E140	Tube, Front Brake, No.6	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
47317-0E140	Tube, Front Brake, No.7	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
47318-0E130	Tube, Front Brake, No.8	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
47319-0E150	Tube, Front Brake, No.9	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
47321-0E120	Tube, Rear Brake, No.1	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
47322-0E120	Tube, Rear Brake, No.2	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
47323-0E150	Tube, Rear Brake, No.3	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
47324-0E150	Tube, Rear Brake, No.4	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
47351-0E010	Bracket, Flexible Hose, No.1	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
47352-0E010	Bracket, Flexible Hose, No.2	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
47389-50021	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
47392-48010	Way, Brake Tube, No.2	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
90080-11197	New Genuine Part	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
90080-11550	New Genuine Part	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
90080-11669	New Genuine Part	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
90080-46357	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
90080-46359	Clamp, Brake Tube, No.8	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
90401-A0001	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
90412-10272	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
90412-10293	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
90412-A0013	Way, No.2(For Front Brake Tube)	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
90412-A0015	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
90464-00876	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
90464-A0006	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
90464-A0007	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
90468-08035	CLIP	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
90468-08040	CLIP	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
90480-25033	Grommet(For Brake Tube)	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
90947-A2093	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
90947-A2094	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
90947-A2095	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
90949-01C00	Clamp, Height Control Tube No.10	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
90949-01C95	Clamp, Brake Tube, No.8	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
90949-01D17	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
90949-01E01	Clamp, Brake Tube, No.9	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
90949-04057	Clamp, Brake Tube, No.8	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
90949-A1020	Clamp, Brake Tube, No.8	Brake Tube & Clamp ([11.2016 - ] (1611- )LIMD..ARL)
