Search › Model › GSU45

GSU45

Toyota HIGHLANDER-KLUGER · 2007 · 4,715 parts · 200 categories

← Back to categories

4,715 items

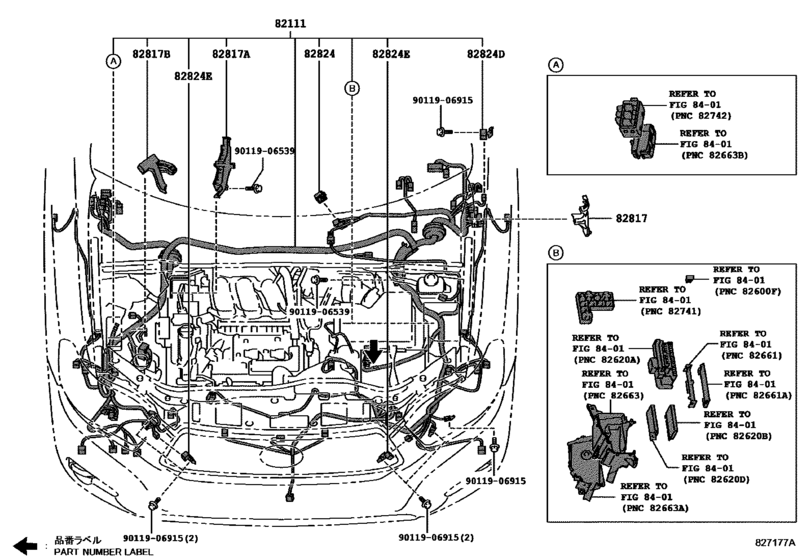

Wiring & Clamp ([07.2010 - ] ENGINE ROOM (1007- )RUS) 12

#	OEM	Part name
82111	82111-48S90	Wire, Engine Room Main
82111	82111-48S91	Wire, Engine Room Main
82111	82111-48T00	Wire, Engine Room Main
82111	82111-48T01	Wire, Engine Room Main
82817	82817-48A80	Protector, Wiring Harness, No.1
82817	82817-48A90	Protector, Wiring Harness, No.2
82817	82817-48B70	Protector, Wiring Harness, No.3
82824	82824-22070	Connector, Wiring Harness
82824	82824-48010	Connector, Wiring Harness
82824	82824-48020	Connector, Wiring Harness
9011906539	90119-06539	New Genuine Part
9011906915	90119-06915	BOLT W-WASHER

OEM	Part name	Category
82111-48S90	Wire, Engine Room Main	Wiring & Clamp ([07.2010 - ] ENGINE ROOM (1007- )RUS)
82111-48S91	Wire, Engine Room Main	Wiring & Clamp ([07.2010 - ] ENGINE ROOM (1007- )RUS)
82111-48T00	Wire, Engine Room Main	Wiring & Clamp ([07.2010 - ] ENGINE ROOM (1007- )RUS)
82111-48T01	Wire, Engine Room Main	Wiring & Clamp ([07.2010 - ] ENGINE ROOM (1007- )RUS)
82817-48A80	Protector, Wiring Harness, No.1	Wiring & Clamp ([07.2010 - ] ENGINE ROOM (1007- )RUS)
82817-48A90	Protector, Wiring Harness, No.2	Wiring & Clamp ([07.2010 - ] ENGINE ROOM (1007- )RUS)
82817-48B70	Protector, Wiring Harness, No.3	Wiring & Clamp ([07.2010 - ] ENGINE ROOM (1007- )RUS)
82824-22070	Connector, Wiring Harness	Wiring & Clamp ([07.2010 - ] ENGINE ROOM (1007- )RUS)
82824-48010	Connector, Wiring Harness	Wiring & Clamp ([07.2010 - ] ENGINE ROOM (1007- )RUS)
82824-48020	Connector, Wiring Harness	Wiring & Clamp ([07.2010 - ] ENGINE ROOM (1007- )RUS)
90119-06539	New Genuine Part	Wiring & Clamp ([07.2010 - ] ENGINE ROOM (1007- )RUS)
90119-06915	BOLT W-WASHER	Wiring & Clamp ([07.2010 - ] ENGINE ROOM (1007- )RUS)
