GSU45

Toyota HIGHLANDER-KLUGER · 2007 · 4,715 parts · 200 categories

← Back to categories

4,715 items

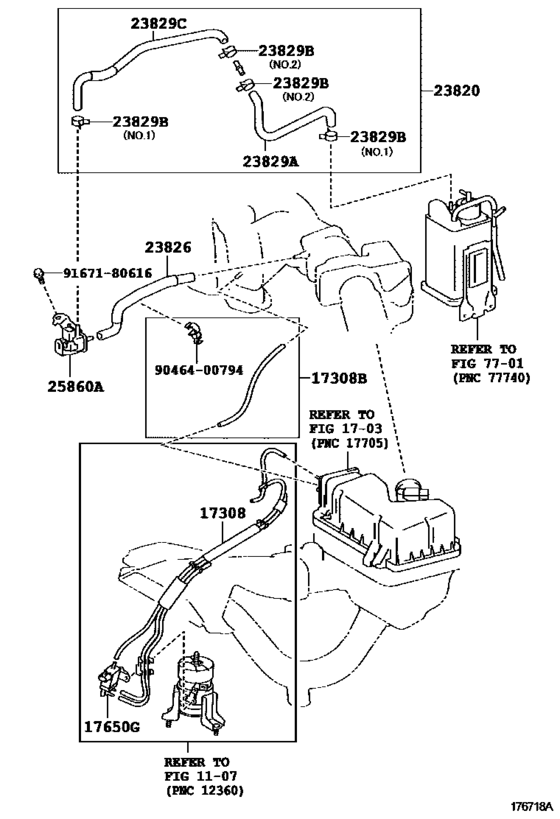

Vacuum Piping ([05.2007 - ] (0705- )) 13

#	OEM	Part name
17308	17308-31040	Hose Sub-Assy, Vacuum(For Idle-Up)
17308	17308-31020	Hose Sub-Assy, Vacuum
17650	90910-12204	Valve, Duty Vacuum Switching
23820	23820-31140	Hose Assy, Fuel Vapor Feed
23826	23826-31110	Hose, Fuel Vapor Feed, No.1
23829	23829-31050	Hose, Fuel Vapor Feed
23829	90466-11003	Clamp Or Clip(For Radiator Reserve Tank Hose)
23829	90466-A0001	Clip(For Fuel Vapor Feed Hose, No.1)
23829	96132-51100	Clip (For Hose)
23829	23829-31070	Hose, Fuel Vapor Feed, No.2
25860	25860-31070	Valve Assy, Vacuum Switching, No.1
9046400794	90464-00794	New Genuine Part
9167180616	91671-80616	BOLT FLANGE

OEM	Part name	Category
17308-31020	Hose Sub-Assy, Vacuum	Vacuum Piping ([05.2007 - ] (0705- ))
17308-31040	Hose Sub-Assy, Vacuum(For Idle-Up)	Vacuum Piping ([05.2007 - ] (0705- ))
23820-31140	Hose Assy, Fuel Vapor Feed	Vacuum Piping ([05.2007 - ] (0705- ))
23826-31110	Hose, Fuel Vapor Feed, No.1	Vacuum Piping ([05.2007 - ] (0705- ))
23829-31050	Hose, Fuel Vapor Feed	Vacuum Piping ([05.2007 - ] (0705- ))
23829-31070	Hose, Fuel Vapor Feed, No.2	Vacuum Piping ([05.2007 - ] (0705- ))
25860-31070	Valve Assy, Vacuum Switching, No.1	Vacuum Piping ([05.2007 - ] (0705- ))
90464-00794	New Genuine Part	Vacuum Piping ([05.2007 - ] (0705- ))
90466-11003	Clamp Or Clip(For Radiator Reserve Tank Hose)	Vacuum Piping ([05.2007 - ] (0705- ))
90466-A0001	Clip(For Fuel Vapor Feed Hose, No.1)	Vacuum Piping ([05.2007 - ] (0705- ))
90910-12204	Valve, Duty Vacuum Switching	Vacuum Piping ([05.2007 - ] (0705- ))
91671-80616	BOLT FLANGE	Vacuum Piping ([05.2007 - ] (0705- ))
96132-51100	Clip (For Hose)	Vacuum Piping ([05.2007 - ] (0705- ))
