GSU45

Toyota HIGHLANDER-KLUGER · 2007 · 4,715 parts · 200 categories

← Back to categories

4,715 items

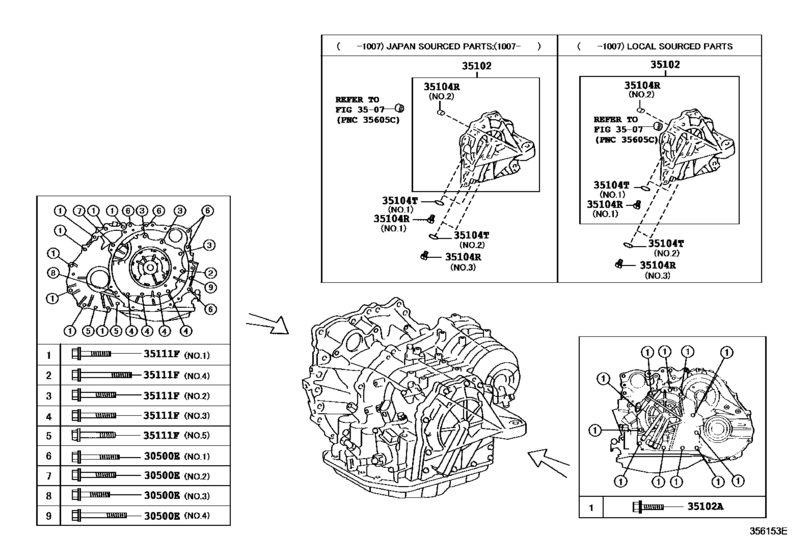

Transmission Case & Oil Pan (Atm) ([05.2007 - ] U151E,U151F (0705- )) 14

#	OEM	Part name
30500	90105-10425	Bolt(For Transaxle & Engine Setting)
30500	90119-12168	Bolt(For Transaxle & Engine Setting)
30500	90119-12250	Bolt(For Transaxle & Engine Setting)
30500	91619-61265	Bolt(For Transaxle & Engine Setting)
35102	35102-33030	Cover Sub-Assy, Transaxle Rear
35102	90105-08071	Bolt (For Transaxle Rear Cover Setting)
35104	90334-06005	Plug, Straight (For Overdrive Case)
35104	90341-08001	Plug, Transaxle Case, No.1
35104	90301-06196	O Ring, Transaxle Case, No.1
35111	90105-06320	Bolt (For Transaxle Housing & Transaxle Case Setting)
35111	90105-08066	Bolt (For Transaxle Housing & Transaxle Case Setting)
35111	90105-08233	Bolt (For Transaxle Housing & Transaxle Case Setting)
35111	90080-10187	Bolt (For Transaxle Housing & Transaxle Case Setting)
35111	90105-08353	Bolt(For Head To Camshaft Bearing Cap)

OEM	Part name	Category
35102-33030	Cover Sub-Assy, Transaxle Rear	Transmission Case & Oil Pan (Atm) ([05.2007 - ] U151E,U151F (0705- ))
90080-10187	Bolt (For Transaxle Housing & Transaxle Case Setting)	Transmission Case & Oil Pan (Atm) ([05.2007 - ] U151E,U151F (0705- ))
90105-06320	Bolt (For Transaxle Housing & Transaxle Case Setting)	Transmission Case & Oil Pan (Atm) ([05.2007 - ] U151E,U151F (0705- ))
90105-08066	Bolt (For Transaxle Housing & Transaxle Case Setting)	Transmission Case & Oil Pan (Atm) ([05.2007 - ] U151E,U151F (0705- ))
90105-08071	Bolt (For Transaxle Rear Cover Setting)	Transmission Case & Oil Pan (Atm) ([05.2007 - ] U151E,U151F (0705- ))
90105-08233	Bolt (For Transaxle Housing & Transaxle Case Setting)	Transmission Case & Oil Pan (Atm) ([05.2007 - ] U151E,U151F (0705- ))
90105-08353	Bolt(For Head To Camshaft Bearing Cap)	Transmission Case & Oil Pan (Atm) ([05.2007 - ] U151E,U151F (0705- ))
90105-10425	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([05.2007 - ] U151E,U151F (0705- ))
90119-12168	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([05.2007 - ] U151E,U151F (0705- ))
90119-12250	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([05.2007 - ] U151E,U151F (0705- ))
90301-06196	O Ring, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([05.2007 - ] U151E,U151F (0705- ))
90334-06005	Plug, Straight (For Overdrive Case)	Transmission Case & Oil Pan (Atm) ([05.2007 - ] U151E,U151F (0705- ))
90341-08001	Plug, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([05.2007 - ] U151E,U151F (0705- ))
91619-61265	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([05.2007 - ] U151E,U151F (0705- ))
