Search › Model › GSU45
GSU45

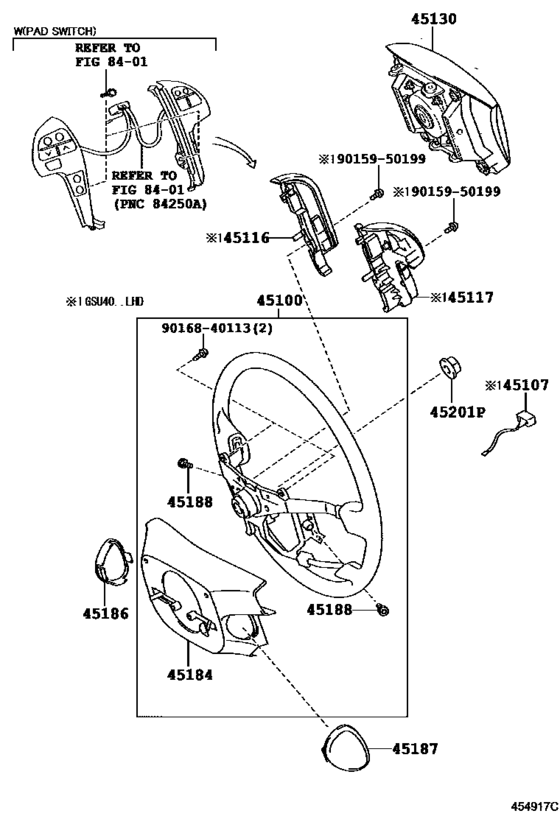

Steering Wheel ([05.2007 - ] 4-SPOKE (0705- )) 9
| # | OEM | Part name |
|---|---|---|
| 45100 | 45100-48430-C0 | Wheel Assy, Steering |
| 45130 | 45130-48200-C0 | Button Assy, Horn |
| 45184 | 45184-33100-C0 | Cover, Steering Wheel Boss, Lower |
| 45186 | 45186-33070-C0 | Cover, Steering Wheel, Lower No.2 |
| 45187 | 45187-33050-C0 | Cover, Steering Wheel, Lower No.3 |
| 45188 | 45188-60010 | Screw, Steering Wheel Pad Attaching |
| 45201 | 90179-12071 | Nut, Steering Wheel Set |
| 9015950199 | 90159-50199 | SCREW |
| 9016840113 | 90168-40113 | Screw, Steering Wheel Pad Attaching |
| OEM | Part name | Category |
|---|---|---|
| 45100-48430-C0 | Wheel Assy, Steering | Steering Wheel ([05.2007 - ] 4-SPOKE (0705- )) |
| 45130-48200-C0 | Button Assy, Horn | Steering Wheel ([05.2007 - ] 4-SPOKE (0705- )) |
| 45184-33100-C0 | Cover, Steering Wheel Boss, Lower | Steering Wheel ([05.2007 - ] 4-SPOKE (0705- )) |
| 45186-33070-C0 | Cover, Steering Wheel, Lower No.2 | Steering Wheel ([05.2007 - ] 4-SPOKE (0705- )) |
| 45187-33050-C0 | Cover, Steering Wheel, Lower No.3 | Steering Wheel ([05.2007 - ] 4-SPOKE (0705- )) |
| 45188-60010 | Screw, Steering Wheel Pad Attaching | Steering Wheel ([05.2007 - ] 4-SPOKE (0705- )) |
| 90159-50199 | SCREW | Steering Wheel ([05.2007 - ] 4-SPOKE (0705- )) |
| 90168-40113 | Screw, Steering Wheel Pad Attaching | Steering Wheel ([05.2007 - ] 4-SPOKE (0705- )) |
| 90179-12071 | Nut, Steering Wheel Set | Steering Wheel ([05.2007 - ] 4-SPOKE (0705- )) |
