GSU45

Toyota HIGHLANDER-KLUGER · 2007 · 4,715 parts · 200 categories

4,715 items

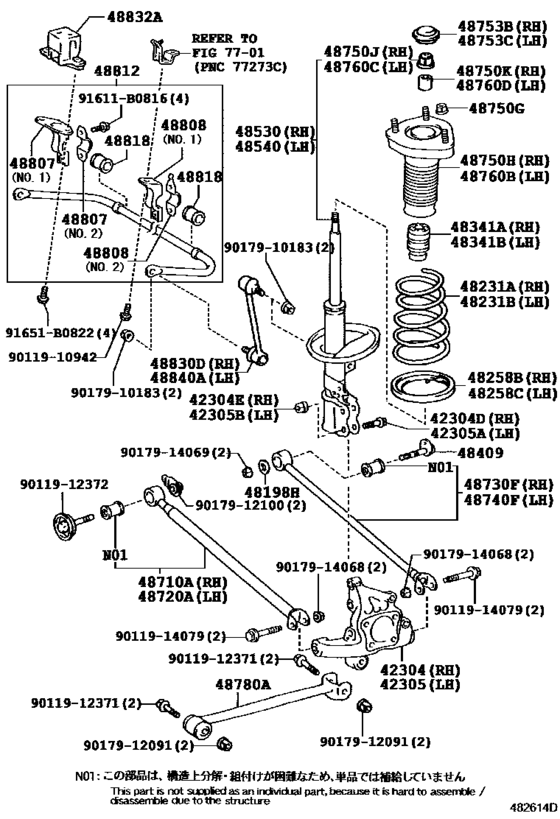

Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45) 43

#	OEM	Part name
42304	42304-48051	Carrier Sub-Assy, Rear Axle, Rh
42304	90105-17012	Bolt (For Rear Axle Carrier Rh)
42304	90178-17002	Nut (For Rear Axle Carrier Rh)
42305	42305-48051	Carrier Sub-Assy, Rear Axle, Lh
48198	48198-48010	Cam, Camber Adjust, No.2
48231	48231-48460	Spring, Coil, Rear Rh
48258	48258-32020	Insulator, Rear Coil Spring, Lower Rh
48341	48341-48050	Bumper, Rear Spring, No.1 Rh
48409	48409-48020	Cam Sub-Assy, Rear Suspension Toe Adjust
48530	48530-80571	Absorber Assy, Shock, Rear Rh
48530	48530-80663	Absorber Assy, Shock, Rear Rh
48530	48530-80654	Absorber Assy, Shock, Rear Rh
48540	48540-49525	Absorber Assy, Shock, Rear Lh
48540	48540-49545	Absorber Assy, Shock, Rear Lh
48540	48540-80018	Absorber Assy, Shock, Rear Lh
48710	48710-48070	Arm Assy, Rear Suspension, No.1 Rh
48730	48730-48160	Arm Assy, Rear Suspension, No.2 Rh
48750	90178-10018	Nut(For Front Suspension Support)
48750	48750-48071	Support Assy, Rear Suspension, Rh
48750	90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)
48750	90387-15027	Collar(For Rear Support To Rear Shock Absorber)
48753	48753-33010	Cover, Rear Suspension Supoport, No.1 Rh
48760	48760-48051	Support Assy Rear Suspension, Lh
48780	48780-48081	Rod Assy, Strut, Rear
48807	48832-32080	Bracket, Rear Stabilizer Bar, Rh
48807	48832-48010	Bracket, Rear Stabilizer Bar, Rh
48808	48832-32050	Bracket, Rear Stabilizer Bar, Lh
48808	48832-32060	Bracket, Rear Stabilizer Bar, Lh
48812	48805-48151	Bar, Stabilizer, Rear
48818	48818-48080	Bush, Stabilizer, Rear
48830	48830-48010	Link Assy, Rear Stabilizer
48832	48832-48020	Bracket, Rear Stabilizer Bar, No.1
91611	91611-B0816	Bolt
91651	91651-B0822	BOLT WWASHER
9011910942	90119-10942	New Genuine Part
9011912371	90119-12371	Bolt(For Strut Rod)
9011912372	90119-12372	BOLT WWASHER
9011914079	90119-14079	Washer(For Rear Suspension Arm)
9017910183	90179-10183	Nut(For Front Stabilizer Link)
9017912091	90179-12091	Nut(For Front Suspension Lower Arm)
9017912100	90179-12100	Nut(For Rear Suspension Arm)
9017914068	90179-14068	Nut(For Front Suspension Lower Arm)
9017914069	90179-14069	Nut

OEM	Part name	Category
42304-48051	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
42305-48051	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
48198-48010	Cam, Camber Adjust, No.2	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
48231-48460	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
48258-32020	Insulator, Rear Coil Spring, Lower Rh	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
48341-48050	Bumper, Rear Spring, No.1 Rh	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
48409-48020	Cam Sub-Assy, Rear Suspension Toe Adjust	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
48530-80571	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
48530-80654	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
48530-80663	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
48540-49525	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
48540-49545	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
48540-80018	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
48710-48070	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
48730-48160	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
48750-48071	Support Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
48753-33010	Cover, Rear Suspension Supoport, No.1 Rh	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
48760-48051	Support Assy Rear Suspension, Lh	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
48780-48081	Rod Assy, Strut, Rear	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
48805-48151	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
48818-48080	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
48830-48010	Link Assy, Rear Stabilizer	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
48832-32050	Bracket, Rear Stabilizer Bar, Lh	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
48832-32060	Bracket, Rear Stabilizer Bar, Lh	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
48832-32080	Bracket, Rear Stabilizer Bar, Rh	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
48832-48010	Bracket, Rear Stabilizer Bar, Rh	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
48832-48020	Bracket, Rear Stabilizer Bar, No.1	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
90105-17012	Bolt (For Rear Axle Carrier Rh)	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
90119-10942	New Genuine Part	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
90119-12371	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
90119-12372	BOLT WWASHER	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
90119-14079	Washer(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
90178-10018	Nut(For Front Suspension Support)	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
90178-17002	Nut (For Rear Axle Carrier Rh)	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
90179-10183	Nut(For Front Stabilizer Link)	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
90179-12091	Nut(For Front Suspension Lower Arm)	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
90179-12100	Nut(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
90179-14068	Nut(For Front Suspension Lower Arm)	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
90179-14069	Nut	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
90387-15027	Collar(For Rear Support To Rear Shock Absorber)	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
91611-B0816	Bolt	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
91651-B0822	BOLT WWASHER	Rear Spring & Shock Absorber ([05.2007 - ] (0705- )GSU45)
