Search › Model › GSU45

GSU45

Toyota HIGHLANDER-KLUGER · 2007 · 4,715 parts · 200 categories

4,715 items

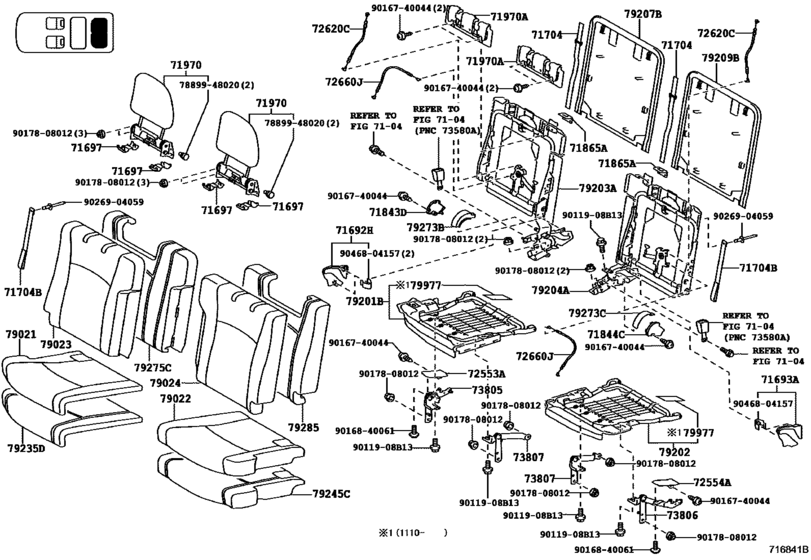

Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- )) 89

#	OEM	Part name
71692	71693-48010	Cover, Rear Seat Cushion Hinge, No.3
71692	71692-48020-C0	Cover, Rear Seat Cushion Hinge, No.2
71692	71692-48020-E0	Cover, Rear Seat Cushion Hinge, No.2
71693	71694-48010	Cover, Rear Seat Cushion Hinge, No.3
71697	71697-48030	Protector, Rear Seat Back Edge
71704	71704-48020-A0	Band Sub-Assy, Rear Side Seat
71704	71704-48020-C2	Band Sub-Assy, Rear Side Seat
71704	71704-48040-A0	Band Sub-Assy, Rear Side Seat, No.2
71704	71704-48040-C0	Band Sub-Assy, Rear Side Seat, No.2
71843	71843-48040-C0	Cover, Rear Seat Reclining, No.2 Rh
71843	71843-48040-E0	Cover, Rear Seat Reclining, No.2 Rh
71843	71843-48030-C0	Cover, Rear Seat Reclining, No.2 Rh
71843	71843-48030-E0	Cover, Rear Seat Reclining, No.2 Rh
71844	71844-48040-C0	Cover, Rear Seat Reclining, No.2 Lh
71844	71844-48040-E0	Cover, Rear Seat Reclining, No.2 Lh
71844	71844-48030-C0	Cover, Rear Seat Reclining, No.2 Lh
71844	71844-48030-E0	Cover, Rear Seat Reclining, No.2 Lh
71848	71848-33010	Cap, Rear Seat
71865	71865-48030-C0	Bezel, Rear Seat Cover, No.1
71865	71865-48030-E0	Bezel, Rear Seat Cover, No.1
71970	71970-48070-C0	Headrest Assy, Rear Seat
71970	71970-48070-E0	Headrest Assy, Rear Seat
71970	72985-48030	Cover, Rear Seat Headrest
71970	71970-48080-C0	Headrest Assy, Rear Seat
71970	71970-48080-E0	Headrest Assy, Rear Seat
72553	72553-48090-C2	Protector, Reclining Cover, Rh
72553	72553-48090-E3	Protector, Reclining Cover, Rh
72554	72554-48080-C2	Protector, Reclining Cover, Lh
72554	72554-48080-E3	Protector, Reclining Cover, Lh
72620	72620-48110	Cable Assy, Rear No.1 Seat Lock
72660	72660-48020	Cable Assy, Rear No.2 Seat Cushion Lock
73805	73805-48010	Link Sub-Assy, Rear Seat Suspension, Outer Rh
73806	73806-48010	Link Sub-Assy, Rear Seat Suspension, Outer Lh
73807	73807-48010	Link Sub-Assy, Rear Seat Suspension, Inner
78072	78072-48010-C0	Cover Sub-Assy, Center Sub Seat Cushion
78072	78072-48010-E0	Cover Sub-Assy, Center Sub Seat Cushion
79020	79030-48010	Leg Assy, No.2 Seat
79021	79021-48081-C0	Cover Sub-Assy, No.2 Seat Cushion, Rh
79021	79021-48081-E0	Cover Sub-Assy, No.2 Seat Cushion, Rh
79021	79021-48090-C0	Cover Sub-Assy, No.2 Seat Cushion, Rh
79021	79021-48090-E0	Cover Sub-Assy, No.2 Seat Cushion, Rh
79022	79022-48021-C0	Cover Sub-Assy, No.2 Seat Cushion, Lh
79022	79022-48021-E0	Cover Sub-Assy, No.2 Seat Cushion, Lh
79022	79022-48030-C0	Cover Sub-Assy, No.2 Seat Cushion, Lh
79022	79022-48030-E0	Cover Sub-Assy, No.2 Seat Cushion, Lh
79023	79023-48081-C0	Cover Sub-Assy, No.2 Seat Back, Rh
79023	79023-48081-E0	Cover Sub-Assy, No.2 Seat Back, Rh
79023	79023-48090-C0	Cover Sub-Assy, No.2 Seat Back, Rh
79023	79023-48090-E0	Cover Sub-Assy, No.2 Seat Back, Rh
79024	79024-48021-C0	Cover Sub-Assy, No.2 Seat Back, Lh
79024	79024-48021-E0	Cover Sub-Assy, No.2 Seat Back, Lh
79024	79024-48030-C0	Cover Sub-Assy, No.2 Seat Back, Lh
79024	79024-48030-E0	Cover Sub-Assy, No.2 Seat Back, Lh
79201	79201-48030	Frame Sub-Assy, No.2 Seat Cushion, Rh
79201	79201-48031	Frame Sub-Assy, No.2 Seat Cushion, Rh
79202	79202-48010	Frame Sub-Assy, No.2 Seat Cushion, Lh
79202	79202-48011	Frame Sub-Assy, No.2 Seat Cushion, Lh
79203	79203-48030	Frame Sub-Assy, No.2 Seat Back, Rh
79204	79203-48040	Frame Sub-Assy, No.2 Seat Back, Lh
79207	79207-48030-C0	Board Sub-Assy, No.2 Seat Back, Rh
79207	79207-48031-C0	Board Sub-Assy, No.2 Seat Back, Rh
79207	79207-48030-E0	Board Sub-Assy, No.2 Seat Back, Rh
79207	79207-48031-E0	Board Sub-Assy, No.2 Seat Back, Rh
79209	79207-48040-C0	Board Sub-Assy, No.2 Seat Back, Lh
79209	79207-48040-E0	Board Sub-Assy, No.2 Seat Back, Lh
79235	79235-48040	Pad, No.2 Seat Cushion, Rh
79245	79235-48050	Pad, No.2 Seat Cushion, Lh
79273	79273-48030-C0	Cover, No.2 Seat Hinge, No.3
79273	79273-48030-E0	Cover, No.2 Seat Hinge, No.3
79273	79273-48040-C0	Cover, No.2 Seat Hinge, No.4
79273	79273-48040-E0	Cover, No.2 Seat Hinge, No.4
79273	79273-48010-C2	Cover, No.2 Seat Hinge
79273	79273-48010-E3	Cover, No.2 Seat Hinge
79273	79273-48020-C2	Cover, No.2 Seat Hinge, No.2
79273	79273-48020-E3	Cover, No.2 Seat Hinge, No.2
79275	79275-48040	Pad, No.2 Seat Back, Rh
79285	79275-48050	Pad, No.2 Seat Back, Lh
79977	79977-48020	Felt, Seat Back
9011908	90119-08B13	BOLT WWASHER
7724160460	77241-60460	Tube, Fuel Main, No.1
7889948020	78899-48020	Bolt, Front Seat
9011910886	90119-10886	BOLT WWASHER
9016740044	90167-40044	BOLT
9016840061	90168-40061	SCREW
9017808012	90178-08012	NUT FLANGE
9026904059	90269-04059	RIVET
9046804157	90468-04157	Clip (Metal)
9155281020	91552-81020	Bolt(For Alternator)
9616001000	96160-01000	Ring, E(For Clutch Booster Air Valve)

OEM	Part name	Category
71692-48020-C0	Cover, Rear Seat Cushion Hinge, No.2	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
71692-48020-E0	Cover, Rear Seat Cushion Hinge, No.2	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
71693-48010	Cover, Rear Seat Cushion Hinge, No.3	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
71694-48010	Cover, Rear Seat Cushion Hinge, No.3	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
71697-48030	Protector, Rear Seat Back Edge	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
71704-48020-A0	Band Sub-Assy, Rear Side Seat	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
71704-48020-C2	Band Sub-Assy, Rear Side Seat	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
71704-48040-A0	Band Sub-Assy, Rear Side Seat, No.2	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
71704-48040-C0	Band Sub-Assy, Rear Side Seat, No.2	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
71843-48030-C0	Cover, Rear Seat Reclining, No.2 Rh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
71843-48030-E0	Cover, Rear Seat Reclining, No.2 Rh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
71843-48040-C0	Cover, Rear Seat Reclining, No.2 Rh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
71843-48040-E0	Cover, Rear Seat Reclining, No.2 Rh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
71844-48030-C0	Cover, Rear Seat Reclining, No.2 Lh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
71844-48030-E0	Cover, Rear Seat Reclining, No.2 Lh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
71844-48040-C0	Cover, Rear Seat Reclining, No.2 Lh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
71844-48040-E0	Cover, Rear Seat Reclining, No.2 Lh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
71848-33010	Cap, Rear Seat	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
71865-48030-C0	Bezel, Rear Seat Cover, No.1	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
71865-48030-E0	Bezel, Rear Seat Cover, No.1	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
71970-48070-C0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
71970-48070-E0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
71970-48080-C0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
71970-48080-E0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
72553-48090-C2	Protector, Reclining Cover, Rh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
72553-48090-E3	Protector, Reclining Cover, Rh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
72554-48080-C2	Protector, Reclining Cover, Lh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
72554-48080-E3	Protector, Reclining Cover, Lh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
72620-48110	Cable Assy, Rear No.1 Seat Lock	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
72660-48020	Cable Assy, Rear No.2 Seat Cushion Lock	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
72985-48030	Cover, Rear Seat Headrest	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
73805-48010	Link Sub-Assy, Rear Seat Suspension, Outer Rh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
73806-48010	Link Sub-Assy, Rear Seat Suspension, Outer Lh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
73807-48010	Link Sub-Assy, Rear Seat Suspension, Inner	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
77241-60460	Tube, Fuel Main, No.1	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
78072-48010-C0	Cover Sub-Assy, Center Sub Seat Cushion	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
78072-48010-E0	Cover Sub-Assy, Center Sub Seat Cushion	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
78899-48020	Bolt, Front Seat	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79021-48081-C0	Cover Sub-Assy, No.2 Seat Cushion, Rh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79021-48081-E0	Cover Sub-Assy, No.2 Seat Cushion, Rh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79021-48090-C0	Cover Sub-Assy, No.2 Seat Cushion, Rh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79021-48090-E0	Cover Sub-Assy, No.2 Seat Cushion, Rh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79022-48021-C0	Cover Sub-Assy, No.2 Seat Cushion, Lh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79022-48021-E0	Cover Sub-Assy, No.2 Seat Cushion, Lh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79022-48030-C0	Cover Sub-Assy, No.2 Seat Cushion, Lh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79022-48030-E0	Cover Sub-Assy, No.2 Seat Cushion, Lh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79023-48081-C0	Cover Sub-Assy, No.2 Seat Back, Rh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79023-48081-E0	Cover Sub-Assy, No.2 Seat Back, Rh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79023-48090-C0	Cover Sub-Assy, No.2 Seat Back, Rh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79023-48090-E0	Cover Sub-Assy, No.2 Seat Back, Rh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79024-48021-C0	Cover Sub-Assy, No.2 Seat Back, Lh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79024-48021-E0	Cover Sub-Assy, No.2 Seat Back, Lh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79024-48030-C0	Cover Sub-Assy, No.2 Seat Back, Lh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79024-48030-E0	Cover Sub-Assy, No.2 Seat Back, Lh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79030-48010	Leg Assy, No.2 Seat	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79201-48030	Frame Sub-Assy, No.2 Seat Cushion, Rh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79201-48031	Frame Sub-Assy, No.2 Seat Cushion, Rh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79202-48010	Frame Sub-Assy, No.2 Seat Cushion, Lh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79202-48011	Frame Sub-Assy, No.2 Seat Cushion, Lh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79203-48030	Frame Sub-Assy, No.2 Seat Back, Rh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79203-48040	Frame Sub-Assy, No.2 Seat Back, Lh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79207-48030-C0	Board Sub-Assy, No.2 Seat Back, Rh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79207-48030-E0	Board Sub-Assy, No.2 Seat Back, Rh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79207-48031-C0	Board Sub-Assy, No.2 Seat Back, Rh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79207-48031-E0	Board Sub-Assy, No.2 Seat Back, Rh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79207-48040-C0	Board Sub-Assy, No.2 Seat Back, Lh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79207-48040-E0	Board Sub-Assy, No.2 Seat Back, Lh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79235-48040	Pad, No.2 Seat Cushion, Rh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79235-48050	Pad, No.2 Seat Cushion, Lh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79273-48010-C2	Cover, No.2 Seat Hinge	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79273-48010-E3	Cover, No.2 Seat Hinge	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79273-48020-C2	Cover, No.2 Seat Hinge, No.2	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79273-48020-E3	Cover, No.2 Seat Hinge, No.2	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79273-48030-C0	Cover, No.2 Seat Hinge, No.3	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79273-48030-E0	Cover, No.2 Seat Hinge, No.3	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79273-48040-C0	Cover, No.2 Seat Hinge, No.4	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79273-48040-E0	Cover, No.2 Seat Hinge, No.4	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79275-48040	Pad, No.2 Seat Back, Rh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79275-48050	Pad, No.2 Seat Back, Lh	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
79977-48020	Felt, Seat Back	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
90119-08B13	BOLT WWASHER	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
90119-10886	BOLT WWASHER	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
90167-40044	BOLT	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
90168-40061	SCREW	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
90178-08012	NUT FLANGE	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
90269-04059	RIVET	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
90468-04157	Clip (Metal)	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
91552-81020	Bolt(For Alternator)	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))
96160-01000	Ring, E(For Clutch Booster Air Valve)	Rear Seat & Seat Track ([07.2010 - ] REAR NO.2 SEAT (1007- ))

Source: Public OEM parts-catalog data
Variants: 2 / 17
Category: 200
Collected: 2026-08-03
