GSU45

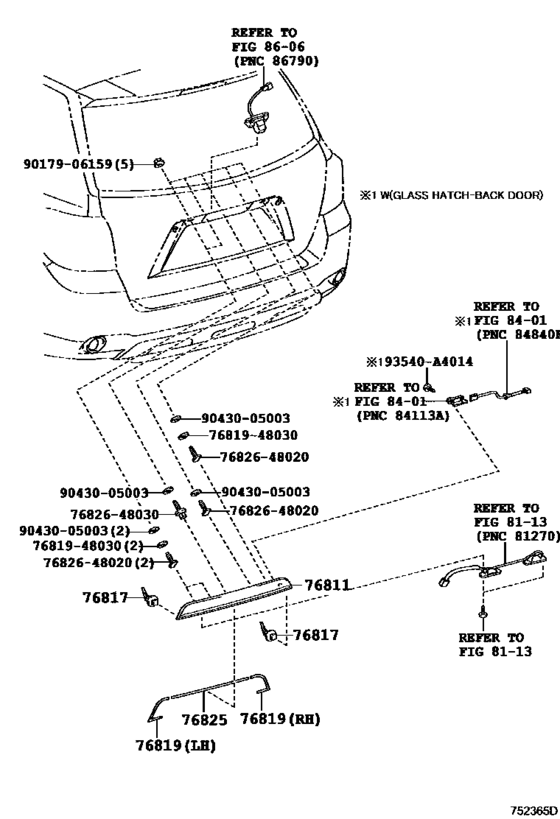

Rear Moulding ([07.2010 - ] (1007- )) 12
| # | OEM | Part name |
|---|---|---|
| 76811 | 76811-48250 | Garnish, Back Door, Outside |
| 76817 | 76817-50010 | Clip, Back Door Outside Garnish |
| 76819 | 76819-48020 | Seal, Back Door Outside Garnish |
| 76819 | 76829-48020 | Seal, Back Door Outside Garnish |
| 76825 | 76825-48060 | Protector, Back Door Outside Garnish |
| 93540 | 93540-A4014 | SCREW TAPPING |
| 7681948030 | 76819-48030 | Seal, Back Door Outside Garnish |
| 7682648020 | 76826-48020 | Retainer, Back Door Garnish, No.1 |
| 7682648030 | 76826-48030 | Retainer, Back Door Garnish, No.1 |
| 9017906159 | 90179-06159 | Nut, Rear Wiper Link Pivot, No.1 |
| 9017906159 | 90080-17210 | Nut, Rear Wiper Link Pivot, No.1 |
| 9043005003 | 90430-05003 | GASKET |
| OEM | Part name | Category |
|---|---|---|
| 76811-48250 | Garnish, Back Door, Outside | Rear Moulding ([07.2010 - ] (1007- )) |
| 76817-50010 | Clip, Back Door Outside Garnish | Rear Moulding ([07.2010 - ] (1007- )) |
| 76819-48020 | Seal, Back Door Outside Garnish | Rear Moulding ([07.2010 - ] (1007- )) |
| 76819-48030 | Seal, Back Door Outside Garnish | Rear Moulding ([07.2010 - ] (1007- )) |
| 76825-48060 | Protector, Back Door Outside Garnish | Rear Moulding ([07.2010 - ] (1007- )) |
| 76826-48020 | Retainer, Back Door Garnish, No.1 | Rear Moulding ([07.2010 - ] (1007- )) |
| 76826-48030 | Retainer, Back Door Garnish, No.1 | Rear Moulding ([07.2010 - ] (1007- )) |
| 76829-48020 | Seal, Back Door Outside Garnish | Rear Moulding ([07.2010 - ] (1007- )) |
| 90080-17210 | Nut, Rear Wiper Link Pivot, No.1 | Rear Moulding ([07.2010 - ] (1007- )) |
| 90179-06159 | Nut, Rear Wiper Link Pivot, No.1 | Rear Moulding ([07.2010 - ] (1007- )) |
| 90430-05003 | GASKET | Rear Moulding ([07.2010 - ] (1007- )) |
| 93540-A4014 | SCREW TAPPING | Rear Moulding ([07.2010 - ] (1007- )) |
