Search › Model › GSU45

GSU45

Toyota HIGHLANDER-KLUGER · 2007 · 4,715 parts · 200 categories

4,715 items

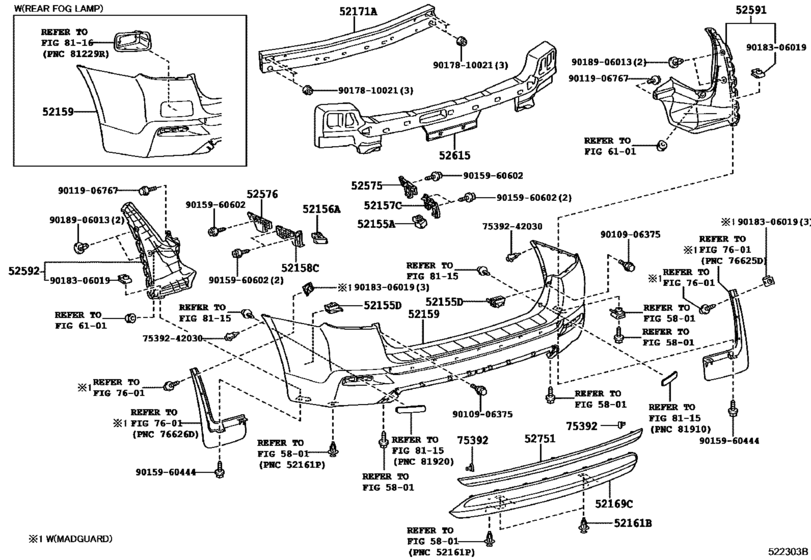

Rear Bumper & Bumper Stay ([07.2010 - ] (1007- )) 25

#	OEM	Part name
52155	52155-48040	Support, Rear Bumper Side, Rh
52156	52156-48040	Support, Rear Bumper Side, Lh
52157	52157-48010	Support, Rear Bumper Side, No.2 Rh
52158	52158-48010	Support, Rear Bumper Side, No.2 Lh
52159	52159-48918	Cover, Rear Bumper
52161	52161-16010	Clip
52161	52161-0K040	Clip
52161	52161-02020	Clip
52169	52169-48040	Cover, Rear Bumper, Lower
52171	52171-48201	Reinforcement, Rear Bumper, No.1
52575	52575-48031	Retainer, Rear Bumper Side, Rh
52576	52576-48031	Retainer, Rear Bumper Side, Lh
52591	52591-48090	Seal, Rear Bumper Side, Rh
52592	52592-48020	Seal, Rear Bumper Side, Lh
52615	52615-48160	Absorber, Rear Bumper Energy
52751	52751-48020	Moulding, Rear Bumper
75392	75392-35200	Retainer
7539242030	75392-42030	Bolt
9010906375	90109-06375	BOLT
9011906767	90119-06767	Bolt, W/washer(For Engine Under Cover)
9015960444	90159-60444	SCREW WWASHER
9015960602	90159-60602	SCREW
9017810021	90178-10021	NUT FLANGE
9018306019	90183-06019	Clip, Outside Moulding, No.1
9018906013	90189-06013	CLIP

OEM	Part name	Category
52155-48040	Support, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- ))
52156-48040	Support, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- ))
52157-48010	Support, Rear Bumper Side, No.2 Rh	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- ))
52158-48010	Support, Rear Bumper Side, No.2 Lh	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- ))
52159-48918	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- ))
52161-02020	Clip	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- ))
52161-0K040	Clip	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- ))
52161-16010	Clip	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- ))
52169-48040	Cover, Rear Bumper, Lower	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- ))
52171-48201	Reinforcement, Rear Bumper, No.1	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- ))
52575-48031	Retainer, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- ))
52576-48031	Retainer, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- ))
52591-48090	Seal, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- ))
52592-48020	Seal, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- ))
52615-48160	Absorber, Rear Bumper Energy	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- ))
52751-48020	Moulding, Rear Bumper	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- ))
75392-35200	Retainer	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- ))
75392-42030	Bolt	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- ))
90109-06375	BOLT	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- ))
90119-06767	Bolt, W/washer(For Engine Under Cover)	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- ))
90159-60444	SCREW WWASHER	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- ))
90159-60602	SCREW	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- ))
90178-10021	NUT FLANGE	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- ))
90183-06019	Clip, Outside Moulding, No.1	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- ))
90189-06013	CLIP	Rear Bumper & Bumper Stay ([07.2010 - ] (1007- ))

Source: Public OEM parts-catalog data
Variants: 2 / 17
Category: 200
Collected: 2026-08-03
