Search › Model › GSU45

GSU45

Toyota HIGHLANDER-KLUGER · 2007 · 4,715 parts · 200 categories

4,715 items

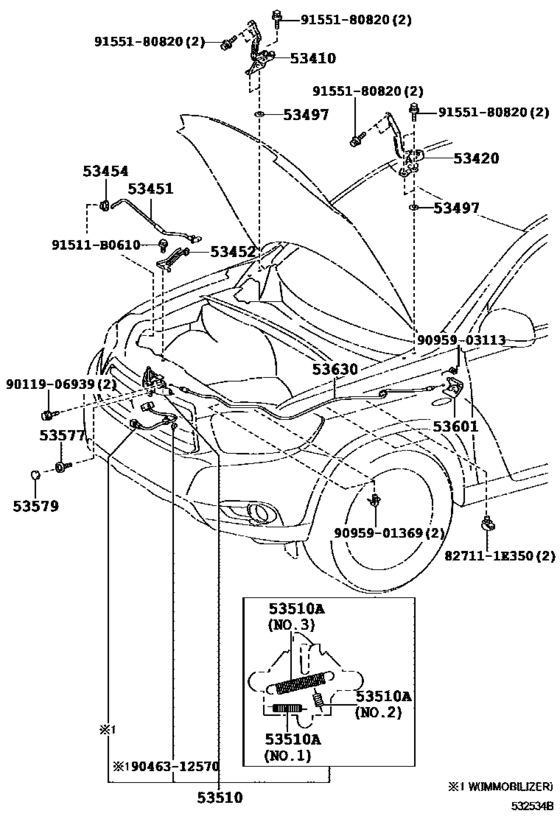

Hood Lock & Hinge ([05.2007 - ] (0705- )LHD) 25

#	OEM	Part name
0	82711-1E350	Clamp, Wiring Harness
0	82711-06050	Clamp, Door Scuff Plate, No.2
53410	53410-48070	Hinge Assy, Hood, Rh
53420	53420-48070	Hinge Assy, Hood, Lh
53451	53440-48060	Rod, Hood Support
53452	53452-48030	Holder, Hood Stay
53454	90480-15027	Grommet(For Hood Support)
53497	53497-42010	Pad, Hood Hinge, No.1
53510	53510-48150	Lock Assy, Hood
53510	53510-48220	Lock Assy, Hood
53510	90506-09055	Spring, Tension(For Hood Lock)
53510	90506-12063	Spring, Tension(For Hood Lock)
53510	90506-18067	Spring, Tension(For Hood Lock)
53577	53577-33010	Bolt, Hood Lock
53579	53579-50010	Cap, Hood Lock Nut
53601	53611-22010-B7	Lever Sub-Assy, Hood Lock Control
53601	53611-22010-C0	Lever Sub-Assy, Hood Lock Control
53601	53611-22010-E5	Lever Sub-Assy, Hood Lock Control
53630	53630-48050	Cable Assy, Hood Lock Control
91511	91511-B0610	BOLT FLANGE
9011906939	90119-06939	Bolt, Hood Lock
9046312570	90463-12570	CLAMP
9095901369	90959-01369	Clamp, Hood Lock Control Cable
9095903113	90959-03113	SPRING TORSION
9155180820	91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)

OEM	Part name	Category
53410-48070	Hinge Assy, Hood, Rh	Hood Lock & Hinge ([05.2007 - ] (0705- )LHD)
53420-48070	Hinge Assy, Hood, Lh	Hood Lock & Hinge ([05.2007 - ] (0705- )LHD)
53440-48060	Rod, Hood Support	Hood Lock & Hinge ([05.2007 - ] (0705- )LHD)
53452-48030	Holder, Hood Stay	Hood Lock & Hinge ([05.2007 - ] (0705- )LHD)
53497-42010	Pad, Hood Hinge, No.1	Hood Lock & Hinge ([05.2007 - ] (0705- )LHD)
53510-48150	Lock Assy, Hood	Hood Lock & Hinge ([05.2007 - ] (0705- )LHD)
53510-48220	Lock Assy, Hood	Hood Lock & Hinge ([05.2007 - ] (0705- )LHD)
53577-33010	Bolt, Hood Lock	Hood Lock & Hinge ([05.2007 - ] (0705- )LHD)
53579-50010	Cap, Hood Lock Nut	Hood Lock & Hinge ([05.2007 - ] (0705- )LHD)
53611-22010-B7	Lever Sub-Assy, Hood Lock Control	Hood Lock & Hinge ([05.2007 - ] (0705- )LHD)
53611-22010-C0	Lever Sub-Assy, Hood Lock Control	Hood Lock & Hinge ([05.2007 - ] (0705- )LHD)
53611-22010-E5	Lever Sub-Assy, Hood Lock Control	Hood Lock & Hinge ([05.2007 - ] (0705- )LHD)
53630-48050	Cable Assy, Hood Lock Control	Hood Lock & Hinge ([05.2007 - ] (0705- )LHD)
82711-06050	Clamp, Door Scuff Plate, No.2	Hood Lock & Hinge ([05.2007 - ] (0705- )LHD)
82711-1E350	Clamp, Wiring Harness	Hood Lock & Hinge ([05.2007 - ] (0705- )LHD)
90119-06939	Bolt, Hood Lock	Hood Lock & Hinge ([05.2007 - ] (0705- )LHD)
90463-12570	CLAMP	Hood Lock & Hinge ([05.2007 - ] (0705- )LHD)
90480-15027	Grommet(For Hood Support)	Hood Lock & Hinge ([05.2007 - ] (0705- )LHD)
90506-09055	Spring, Tension(For Hood Lock)	Hood Lock & Hinge ([05.2007 - ] (0705- )LHD)
90506-12063	Spring, Tension(For Hood Lock)	Hood Lock & Hinge ([05.2007 - ] (0705- )LHD)
90506-18067	Spring, Tension(For Hood Lock)	Hood Lock & Hinge ([05.2007 - ] (0705- )LHD)
90959-01369	Clamp, Hood Lock Control Cable	Hood Lock & Hinge ([05.2007 - ] (0705- )LHD)
90959-03113	SPRING TORSION	Hood Lock & Hinge ([05.2007 - ] (0705- )LHD)
91511-B0610	BOLT FLANGE	Hood Lock & Hinge ([05.2007 - ] (0705- )LHD)
91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)	Hood Lock & Hinge ([05.2007 - ] (0705- )LHD)
