| 87128-48090 |
Grommet, Heater |

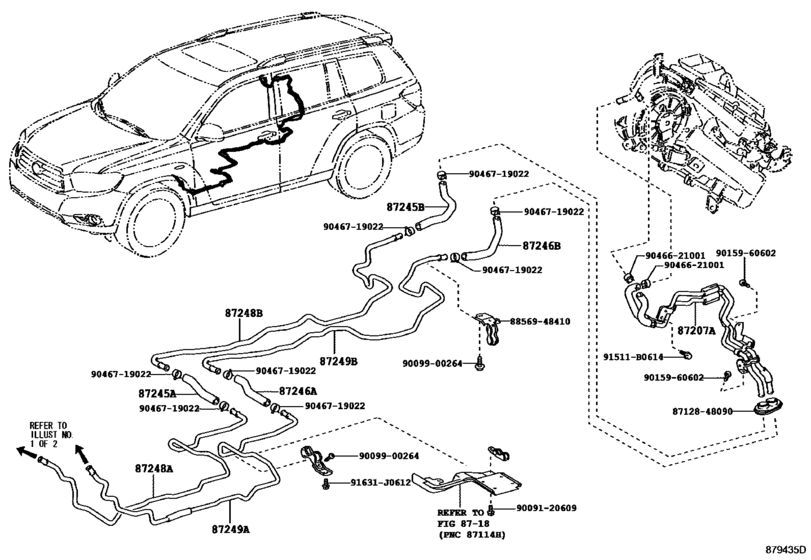

Heating & Air Conditioning - Water Piping ([05.2007 - ] REAR (0705- )) |
| 87207-48040 |
Pipe & Hose Sub-Assy, Water A |
Heating & Air Conditioning - Water Piping ([05.2007 - ] REAR (0705- )) |
| 87208-48130 |
Pipe, Heater Water Inlet, A |
Heating & Air Conditioning - Water Piping ([05.2007 - ] REAR (0705- )) |
| 87208-48140 |
Pipe, Heater Water Outlet, A |
Heating & Air Conditioning - Water Piping ([05.2007 - ] REAR (0705- )) |
| 87245-48A80 |
Hose, Heater Water, Inlet A |
Heating & Air Conditioning - Water Piping ([05.2007 - ] REAR (0705- )) |
| 87245-48A90 |
Hose, Heater Water, Inlet B |
Heating & Air Conditioning - Water Piping ([05.2007 - ] REAR (0705- )) |
| 87245-48B00 |
Hose, Heater Water, Outlet A |
Heating & Air Conditioning - Water Piping ([05.2007 - ] REAR (0705- )) |
| 87245-48B10 |
Hose, Heater Water, Outlet B |
Heating & Air Conditioning - Water Piping ([05.2007 - ] REAR (0705- )) |
| 87248-48090 |
Pipe, Heater Water Inlet, B |
Heating & Air Conditioning - Water Piping ([05.2007 - ] REAR (0705- )) |
| 87248-48100 |
Pipe, Heater Water Outlet, B |
Heating & Air Conditioning - Water Piping ([05.2007 - ] REAR (0705- )) |
| 88569-48410 |
Clamp (for Cooler Relay) |
Heating & Air Conditioning - Water Piping ([05.2007 - ] REAR (0705- )) |
| 90091-20609 |
BOLT |
Heating & Air Conditioning - Water Piping ([05.2007 - ] REAR (0705- )) |
| 90099-00264 |
SCREW |
Heating & Air Conditioning - Water Piping ([05.2007 - ] REAR (0705- )) |
| 90159-60602 |
SCREW |
Heating & Air Conditioning - Water Piping ([05.2007 - ] REAR (0705- )) |
| 90466-21001 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Heating & Air Conditioning - Water Piping ([05.2007 - ] REAR (0705- )) |
| 90467-19022 |
Clip(For Ventilation Hose No.2) |
Heating & Air Conditioning - Water Piping ([05.2007 - ] REAR (0705- )) |
| 91511-B0614 |
BOLT, FLANGE |
Heating & Air Conditioning - Water Piping ([05.2007 - ] REAR (0705- )) |
| 91631-J0612 |
BRACKET |
Heating & Air Conditioning - Water Piping ([05.2007 - ] REAR (0705- )) |
