| 88374-30010 |
Valve, Service, No.1 |

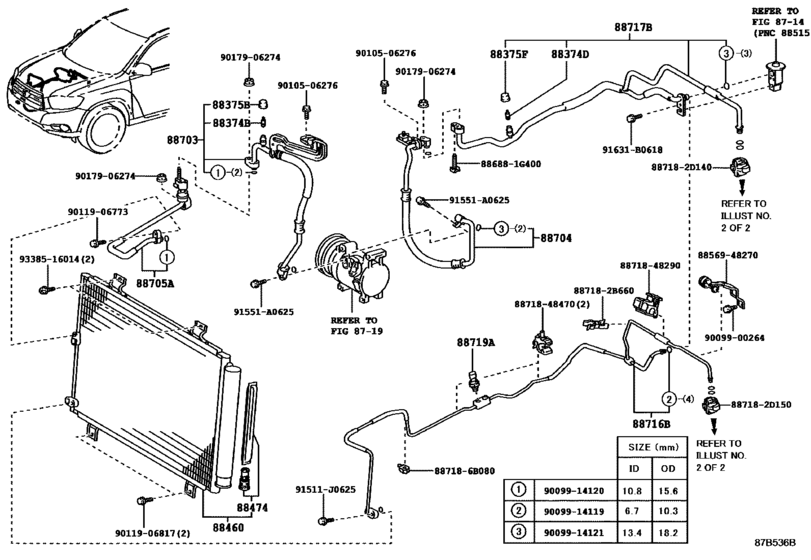

Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 88375-30280 |
Cap, Service Valve (For Cooler Pipe) |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 88375-30290 |
Cap, Service Valve (For Cooler Pipe) |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 88460-48101 |
Condenser Assy, Cooler |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 88474-17010 |
Dryer, Cooler |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 88569-48270 |
Clamp(For Cooler Refrigerant Pipe), No.1 |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 88688-1G400 |
Bracket, Cooler Diaphragm |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 88703-48240 |
Hose Sub-Assy, Discharge |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 88704-48220 |
Hose Sub-Assy, Suction |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 88705-48180 |
Tube Sub-Assy, Discharge |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 88716-48390 |
Pipe, Cooler Refrigerant Liquid, B |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 88716-48391 |
Pipe, Cooler Refrigerant Liquid, B |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 88717-48200 |
Pipe, Cooler Refrigerant Suction, B |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 88718-2B660 |
Pipe, Cooler Refrigerant Suction, No.2 |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 88718-2D140 |
Clamp(For Cooler Refrigerant Pipe), No.1 |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 88718-2D150 |
Clamp(For Cooler Refrigerant Pipe), No.1 |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 88718-48290 |
Pipe, Cooler Refrigerant Suction, No.2 |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 88718-48470 |
Pipe, Cooler Refrigerant Suction, No.2 |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 88718-6B080 |
Pipe, Cooler Refrigerant Suction, No.2 |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 88719-33020 |
Sensor, Airconditioner Pressure |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 90099-00264 |
SCREW |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 90099-14119 |
Ring, O(For Cooler Refrigerant Liquid Pipe) |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 90099-14119-TH |
O RING |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 90099-14120 |
O-Ring, Cooler Evaporator No.1(Discharge) |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 90099-14121 |
O-Ring, Cooler Evaporator No.1(Suction) |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 90105-06276 |
New Genuine Part |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 90119-06773 |
Bolt |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 90119-06817 |
BOLT WWASHER |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 90119-A0044 |
New Genuine Part |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 90179-06274 |
Nut |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 91511-J0625 |
Bolt(For Cylinder Head Cover) |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 91551-A0625 |
Bolt(For Cylinder Head Cover) |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 91631-B0618 |
BOLT WWASHER |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
| 93385-16014 |
New Genuine Part |
Heating & Air Conditioning - Cooler Piping ([07.2010 - ] FRONT,W(REAR AIR CONDITIONER) (1007- )RUS) |
