GSU45

Toyota HIGHLANDER-KLUGER · 2007 · 4,715 parts · 200 categories
GSU45 ×

← Back to categories

4,715 items

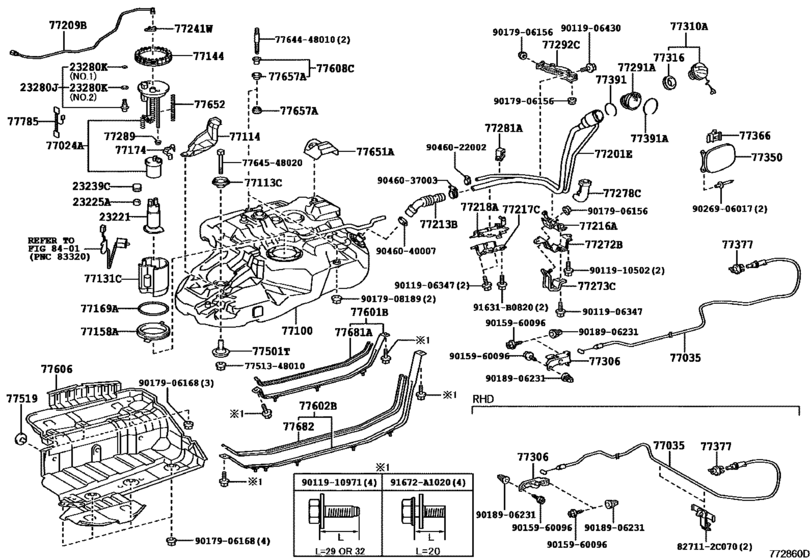

Fuel Tank & Tube ([07.2010 - ] FUEL TANK (1007- )) 71
#OEMPart name
23221 23220-31370 Pump, Fuel
23225 23225-21010 Spacer, Fuel Pump
23239 23239-21010 Seal, Fuel Pump Filter
23280 23280-38020 Valve Assy, Fuel Main
23280 90301-04013 Ring, O(For Fuel Pump)
23280 90301-15024 Ring, O(For Fuel Pump)
77024 77024-48050 Plate Sub-Assy, Fuel Suction
77035 77035-48070 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-48140 Tank Assy, Fuel
77113 77103-48021 Plate, Fuel Tank Side
77114 77114-48010 Plate, Fuel Tank Side, Rear
77131 77131-48032 Sub-Tank, Fuel, No.1
77144 77144-48020 Retainer, Fuel Pump Gauge
77158 77158-48020 Support, Tank Suction Tube
77169 77169-48060 Gasket, Fuel Suction Tube Set
77174 77174-48010 Support, Fuel Suction, No.1
77201 77201-48220 Pipe Sub-Assy, Fuel Tank Filler
77209 77209-48070 Tube Sub-Assy, Fuel Pump
77213 77213-48070 Hose, Fuel Tank To Filler Pipe
77216 77216-48040 Support, Fuel Tank Filler Pipe, No.1
77217 77217-48050 Support, Fuel Tank Filler Pipe, No.2
77218 77218-48070 Support, Fuel Tank Filler Pipe, No.3
77241 77241-33011 Clip, Tube Joint
77272 77272-48020 Support, Breather Tube, No.1
77273 77273-48020 Support, Breather Tube, No.2
77278 77278-48010 Protector, Fuel Tank Filler Pipe, No.2
77281 77281-48070 Clamp, Fuel Filler Pipe
77289 77289-52090 Holder, Fuel Tank Pipe Setting
77291 77291-48040 Shield, Fuel Tank Filler Pipe
77292 77292-48020 Shield, Fuel Tank Filler Pipe, No.2
77306 77306-48020 Lever Sub-Assy, Fuel Lid Lock Open
77310 77300-52030 Cap Assy, Fuel Tank
77316 77316-52040 Gasket, Fuel Tank Cap
77350 77350-48060 Lid Assy, Fuel Filler Opening
77366 77360-21010 Spring, Fuel Filler Opening Lid Hinge
77377 77377-12050 Bracket, Fuel Lid Lock Control
77391 77391-12020 Ring, Fuel Inlet Box
77391 77391-33010 Ring, Fuel Inlet Box
77501 77501-48011 Bracket Sub-Assy, Fuel Tank
77519 77529-48010 Spacer, Fuel Tank Bracket
77601 77601-48070 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-48060 Band Sub-Assy, Fuel Tank, No.1 Lh
77606 77606-48070 Protector Sub-Assy, Fuel Tank, No.1
77608 77608-48011 Cushion Set, Fuel Tank
77608 77608-48020 Cushion Set, Fuel Tank
77652 77652-48030 Cushion, Fuel Tank, No.1
77657 77655-48011 Cushion, Fuel Tank, No.5
77657 77655-48020 Cushion, Fuel Tank, No.5
77681 77681-48050 Seat, Fuel Tank Band
77682 77682-48050 Seat, Fuel Tank Band, Lh
77785 77785-48030 Harness, Fuel Pump
91631 91631-B0820 BOLT WWASHER
91672 91672-A1020 New Genuine Part
827112 82711-2C070 Wire, Fuse To Fuse(for Combustion Heater)
7751348010 77513-48010 Retainer, Lpg Tank Bracket, Front
7764448010 77644-48010 Bolt, Fuel Tank
7764548020 77645-48020 Packing, Fuel Tank Bracket Upper, B
9011906347 90119-06347 New Genuine Part
9011906430 90119-06430 BOLT WWASHER
9011910502 90119-10502 BOLT WWASHER
9011910971 90119-10971 Bolt, Fuel Tank Band Set
9015960096 90159-60096 New Genuine Part
9017906156 90179-06156 Nut (For Transmission Control Cable)
9017906168 90179-06168 Nut & Washer Assy
9017908189 90179-08189 NUT
9018906231 90189-06231 New Genuine Part
9026906017 90269-06017 RIVET
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046037003 90460-37003 Clamp, Fuel Hose
9046040007 90460-40007 Clamp (For Fuel Filler Pipe)
