GSU45

Toyota HIGHLANDER-KLUGER · 2007 · 4,715 parts · 200 categories
GSU45 ×

← Back to categories

4,715 items

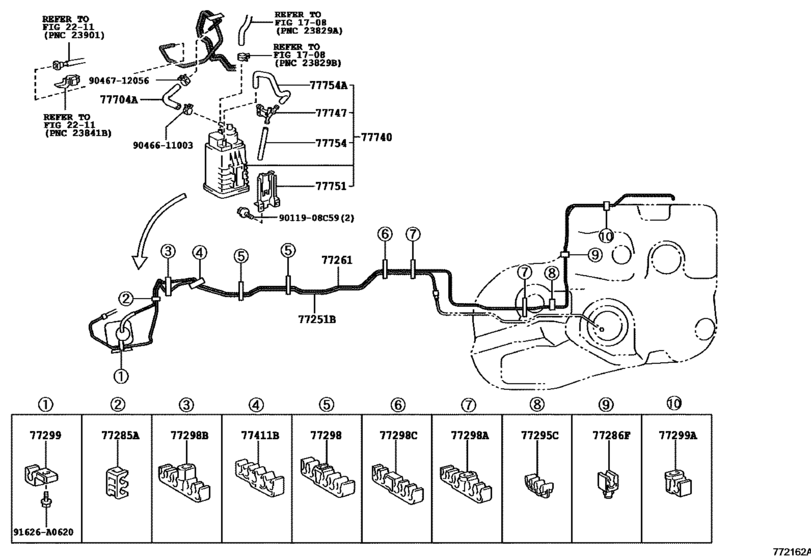

Fuel Tank & Tube ([05.2007 - ] FUEL TUBE (0705- )) 24
#OEMPart name
77251 77251-48180 Tube, Fuel Main
77261 77261-48170 Tube Sub-Assy, Fuel Emission
77285 77285-42110 Support, Fuel Return And Main Tube
77286 77286-48040 Clamp, Fuel Tube, No.2
77295 77295-42030 Grommet, Fuel Tube
77298 77298-48020 Clamp, Fuel Tube, No.4
77298 77298-48040 Clamp, Fuel Tube, No.4
77298 77298-68030 Clamp, Fuel Tube, No.1
77299 77299-48010 Clamp, Fuel Tube, No.5
77299 77299-48020 Clamp, Breather Tube
77411 77411-48040 Support, Fuel Tube Grommet, No.1
77411 77411-48041 Support, Fuel Tube Grommet, No.1
77704 77279-48070 Hose, Fuel(For Charcoal Canister)
77740 77730-48030 Canister Assy, Charcoal
77747 77747-48030 Pipe, Charcoal Canister, No.1
77751 77751-48040 Bracket, Charcoal Canister Base
77754 77754-48010 Hose, Charcoal Canister Outlet, No.1
77754 77754-48070 Hose, Charcoal Canister Outlet, No.1
91626 91626-A0620 New Genuine Part
9011908 90119-08C59 New Genuine Part
9046611003 90466-11003 Clamp Or Clip(For Radiator Reserve Tank Hose)
9046611003 90466-A0001 Clip(For Fuel Vapor Feed Hose, No.1)
9046712056 90467-12056 Clamp Or Clip(For Throttle Body Hose)
9046712056 90466-T0048 New Genuine Part
