Search › Model › GSU45

GSU45

Toyota HIGHLANDER-KLUGER · 2007 · 4,715 parts · 200 categories

4,715 items

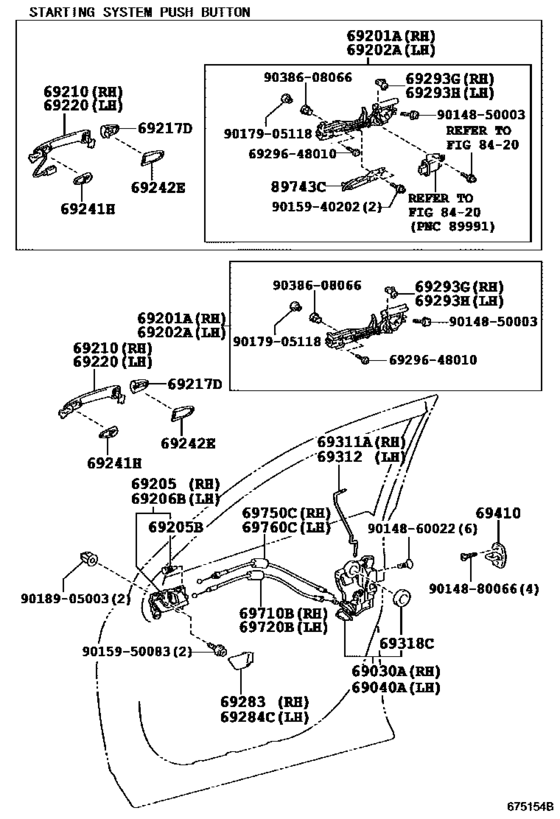

Front Door Lock & Handle ([05.2007 - ] (0705- )) 118

#	OEM	Part name
69030	69030-42221	Lock Assy, Front Door W/motor, Rh - FRONT DOOR, RH
69040	69040-42241	Lock Assy, Front Door W/motor, Lh - FRONT DOOR, LH
69201	69201-28010	Frame Sub-Assy, Front Door Outside Handle, Rh
69201	69201-30040	Frame Sub-Assy, Front Door Outside Handle, Rh
69202	69202-28010	Frame Sub-Assy, Front Door Outside Handle, Lh
69202	69202-30040	Frame Sub-Assy, Front Door Outside Handle, Lh
69205	69205-28120-C0	Handle Sub-Assy, Front Door Inside, Rh
69205	69205-28130-C2	Handle Sub-Assy, Front Door Inside, Rh
69205	90541-04014	Cushion, Console Box
69205	69205-20210-C0	Handle Sub-Assy, Front Door Inside, Rh
69206	69206-28120-C0	Handle Sub-Assy, Front Door Inside, Lh
69206	69206-28130-C2	Handle Sub-Assy, Front Door Inside, Lh
69206	69206-20210-C0	Handle Sub-Assy, Door Inside, Lh
69210	69211-28070-A3	Handle Assy, Front Door, Outside Rh
69210	69211-28070-C1	Handle Assy, Front Door, Outside Rh
69210	69211-28070-L0	Handle Assy, Front Door, Outside Rh
69210	69211-28070-P2	Handle Assy, Front Door, Outside Rh
69210	69211-28070-P4	Handle Assy, Front Door, Outside Rh
69210	69211-28070-R9	Handle Assy, Front Door, Outside Rh
69210	69211-28070-V6	Handle Assy, Front Door, Outside Rh
69210	69211-28070-V8	Handle Assy, Front Door, Outside Rh
69210	69211-28070-X2	Handle Assy, Front Door, Outside Rh
69210	69210-48090-A0	Handle Assy, Front Door, Outside Rh
69210	69210-48091-A0	Handle Assy, Front Door, Outside Rh
69210	69210-48090-B0	Handle Assy, Front Door, Outside Rh
69210	69210-48091-B0	Handle Assy, Front Door, Outside Rh
69210	69210-48090-B1	Handle Assy, Front Door, Outside Rh
69210	69210-48091-B1	Handle Assy, Front Door, Outside Rh
69210	69210-48090-C0	Handle Assy, Front Door, Outside Rh
69210	69210-48091-C0	Handle Assy, Front Door, Outside Rh
69210	69210-48090-D0	Handle Assy, Front Door, Outside Rh
69210	69210-48091-D0	Handle Assy, Front Door, Outside Rh
69210	69210-48090-E0	Handle Assy, Front Door, Outside Rh
69210	69210-48091-E0	Handle Assy, Front Door, Outside Rh
69210	69210-48090-J0	Handle Assy, Front Door, Outside Rh
69210	69210-48091-J0	Handle Assy, Front Door, Outside Rh
69210	69210-48090-J1	Handle Assy, Front Door, Outside Rh
69210	69210-48091-J1	Handle Assy, Front Door, Outside Rh
69210	69210-48090-J2	Handle Assy, Front Door, Outside Rh
69210	69210-48091-J2	Handle Assy, Front Door, Outside Rh
69217	69217-28010-A3	Cover, Front Door Outside Handle, Rh
69217	69217-28010-C1	Cover, Front Door Outside Handle, Rh
69217	69217-28010-L1	Cover, Front Door Outside Handle, Rh
69217	69217-28010-P2	Cover, Front Door Outside Handle, Rh
69217	69217-28010-P5	Cover, Front Door Outside Handle
69217	69217-28010-R9	Cover, Front Door Outside Handle, Rh
69217	69217-28010-V8	Cover, Front Door Outside Handle
69217	69217-28010-W3	Cover, Front Door Outside Handle, Rh
69217	69217-28010-X3	Cover, Front Door Outside Handle, Rh
69217	69217-60020-A1	Cover, Back Door Outside Handle
69217	69217-60020-C0	Cover, Back Door Outside Handle
69217	69217-60020-L1	Cover, Front Door Outside Handle, Lh - FRONT DOOR OUTSIDE HANDLE, RH
69217	69217-60020-P0	Cover, Back Door Outside Handle
69217	69217-60020-P3	Cover, Front Door Outside Handle
69217	69217-60020-R5	Cover, Back Door Outside Handle
69217	69217-60020-V4	Cover, Front Door Outside Handle
69217	69217-60020-V8	Cover, Front Door Outside Handle, Lh
69217	69217-60020-X1	Cover, Front Door Outside Handle, Lh
69217	69250-48010-A0	Cover, Front Door Outside Handle
69217	69250-48011-A0	Cover, Front Door Outside Handle, Lh
69217	69250-48010-B0	Cover, Front Door Outside Handle
69217	69250-48011-B0	Cover, Front Door Outside Handle, Lh
69217	69250-48010-B1	Cover, Front Door Outside Handle
69217	69250-48011-B1	Cover, Front Door Outside Handle
69217	69250-48010-C0	Cover, Front Door Outside Handle
69217	69250-48011-C0	Cover, Front Door Outside Handle, Lh
69217	69250-48010-D0	Cover, Front Door Outside Handle
69217	69250-48011-D0	Cover, Front Door Outside Handle
69217	69250-48010-E0	Cover, Front Door Outside Handle
69217	69250-48011-E0	Cover, Front Door Outside Handle
69217	69250-48010-J0	Cover, Front Door Outside Handle
69217	69250-48011-J0	Cover, Front Door Outside Handle
69217	69250-48010-J1	Cover, Front Door Outside Handle
69217	69250-48011-J1	Cover, Front Door Outside Handle
69217	69250-48010-J2	Cover, Front Door Outside Handle
69217	69250-48011-J2	Cover, Front Door Outside Handle
69217	69250-48020-A0	Cover, Front Door Outside Handle
69217	69250-48021-A0	Cover, Front Door Outside Handle, Rh
69217	69250-48020-B0	Cover, Front Door Outside Handle
69217	69250-48021-B0	Cover, Front Door Outside Handle, Rh
69217	69250-48020-B1	Cover, Front Door Outside Handle
69217	69250-48021-B1	Cover, Front Door Outside Handle
69217	69250-48020-C0	Cover, Front Door Outside Handle
69217	69250-48021-C0	Cover, Front Door Outside Handle, Rh
69217	69250-48020-D0	Cover, Front Door Outside Handle
69217	69250-48021-D0	Cover, Front Door Outside Handle
69217	69250-48020-E0	Cover, Front Door Outside Handle
69217	69250-48021-E0	Cover, Front Door Outside Handle
69217	69250-48020-J0	Cover, Front Door Outside Handle
69217	69250-48021-J0	Cover, Front Door Outside Handle
69217	69250-48020-J1	Cover, Front Door Outside Handle
69217	69250-48021-J1	Cover, Front Door Outside Handle
69217	69250-48020-J2	Cover, Front Door Outside Handle
69217	69250-48021-J2	Cover, Front Door Outside Handle
69241	69241-28060	Pad, Front Door Outside Handle, Rh
69242	69242-60030	Pad, Front Door Outside Handle, Lh
69283	69283-20020-C0	Plug, Front Door Inside Handle Bezel, Rh
69284	69284-20010-C0	Plug, Front Door Inside Handle Bezel, Lh
69293	69293-12030	Snap, Front Door Outside Handle
69293	69293-12040	Snap, Front Door Outside Handle
69311	69311-48050	Rod, Front Door Lock Open, Rh
69312	69312-48050	Rod, Front Door Lock Open, Lh
69318	69318-51010	Seal, Front Door Lock Hole, Rh
69410	69410-33010	Plate Assy, Front Door Lock Striker
69710	69710-48050	Cable Assy, Front Door Lock Remote Control, Rh
69750	69750-48060	Cable Assy, Front Door Inside Locking, Rh
89743	89743-30130	Bracket, Electrical Key Wire Harness
89743	89743-68010	Bracket, Electrical Key Wire Harness
6929648010	69296-48010	Screw, Door Inside Handle
9014850003	90148-50003	Screw Hex Lobular
9014860022	90148-60022	BOLT
9014860022	90148-A0005	Hexalobular Screw
9014880066	90148-80066	SCREW HEXALOBULAR
9015940202	90159-40202	SCREW WWASHER
9015950083	90159-50083	SCREW
9017905118	90179-05118	New Genuine Part
9018905003	90189-05003	CLIP
9038608066	90386-08066	Bush(For Rear Door Outside Handle)

OEM	Part name	Category
69030-42221	Lock Assy, Front Door W/motor, Rh - FRONT DOOR, RH	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69040-42241	Lock Assy, Front Door W/motor, Lh - FRONT DOOR, LH	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69201-28010	Frame Sub-Assy, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69201-30040	Frame Sub-Assy, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69202-28010	Frame Sub-Assy, Front Door Outside Handle, Lh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69202-30040	Frame Sub-Assy, Front Door Outside Handle, Lh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69205-20210-C0	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69205-28120-C0	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69205-28130-C2	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69206-20210-C0	Handle Sub-Assy, Door Inside, Lh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69206-28120-C0	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69206-28130-C2	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69210-48090-A0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69210-48090-B0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69210-48090-B1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69210-48090-C0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69210-48090-D0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69210-48090-E0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69210-48090-J0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69210-48090-J1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69210-48090-J2	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69210-48091-A0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69210-48091-B0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69210-48091-B1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69210-48091-C0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69210-48091-D0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69210-48091-E0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69210-48091-J0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69210-48091-J1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69210-48091-J2	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69211-28070-A3	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69211-28070-C1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69211-28070-L0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69211-28070-P2	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69211-28070-P4	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69211-28070-R9	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69211-28070-V6	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69211-28070-V8	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69211-28070-X2	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69217-28010-A3	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69217-28010-C1	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69217-28010-L1	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69217-28010-P2	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69217-28010-P5	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69217-28010-R9	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69217-28010-V8	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69217-28010-W3	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69217-28010-X3	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69217-60020-A1	Cover, Back Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69217-60020-C0	Cover, Back Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69217-60020-L1	Cover, Front Door Outside Handle, Lh - FRONT DOOR OUTSIDE HANDLE, RH	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69217-60020-P0	Cover, Back Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69217-60020-P3	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69217-60020-R5	Cover, Back Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69217-60020-V4	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69217-60020-V8	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69217-60020-X1	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69241-28060	Pad, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69242-60030	Pad, Front Door Outside Handle, Lh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48010-A0	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48010-B0	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48010-B1	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48010-C0	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48010-D0	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48010-E0	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48010-J0	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48010-J1	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48010-J2	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48011-A0	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48011-B0	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48011-B1	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48011-C0	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48011-D0	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48011-E0	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48011-J0	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48011-J1	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48011-J2	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48020-A0	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48020-B0	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48020-B1	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48020-C0	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48020-D0	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48020-E0	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48020-J0	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48020-J1	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48020-J2	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48021-A0	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48021-B0	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48021-B1	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48021-C0	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48021-D0	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48021-E0	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48021-J0	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48021-J1	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69250-48021-J2	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69283-20020-C0	Plug, Front Door Inside Handle Bezel, Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69284-20010-C0	Plug, Front Door Inside Handle Bezel, Lh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69293-12030	Snap, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69293-12040	Snap, Front Door Outside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69296-48010	Screw, Door Inside Handle	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69311-48050	Rod, Front Door Lock Open, Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69312-48050	Rod, Front Door Lock Open, Lh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69318-51010	Seal, Front Door Lock Hole, Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69410-33010	Plate Assy, Front Door Lock Striker	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69710-48050	Cable Assy, Front Door Lock Remote Control, Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
69750-48060	Cable Assy, Front Door Inside Locking, Rh	Front Door Lock & Handle ([05.2007 - ] (0705- ))
89743-30130	Bracket, Electrical Key Wire Harness	Front Door Lock & Handle ([05.2007 - ] (0705- ))
89743-68010	Bracket, Electrical Key Wire Harness	Front Door Lock & Handle ([05.2007 - ] (0705- ))
90148-50003	Screw Hex Lobular	Front Door Lock & Handle ([05.2007 - ] (0705- ))
90148-60022	BOLT	Front Door Lock & Handle ([05.2007 - ] (0705- ))
90148-80066	SCREW HEXALOBULAR	Front Door Lock & Handle ([05.2007 - ] (0705- ))
90148-A0005	Hexalobular Screw	Front Door Lock & Handle ([05.2007 - ] (0705- ))
90159-40202	SCREW WWASHER	Front Door Lock & Handle ([05.2007 - ] (0705- ))
90159-50083	SCREW	Front Door Lock & Handle ([05.2007 - ] (0705- ))
90179-05118	New Genuine Part	Front Door Lock & Handle ([05.2007 - ] (0705- ))
90189-05003	CLIP	Front Door Lock & Handle ([05.2007 - ] (0705- ))
90386-08066	Bush(For Rear Door Outside Handle)	Front Door Lock & Handle ([05.2007 - ] (0705- ))
90541-04014	Cushion, Console Box	Front Door Lock & Handle ([05.2007 - ] (0705- ))

Source: Public OEM parts-catalog data
Variants: 2 / 17
Category: 200
Collected: 2026-08-03
