Search › Model › GSU45

GSU45

Toyota HIGHLANDER-KLUGER · 2007 · 4,715 parts · 200 categories

4,715 items

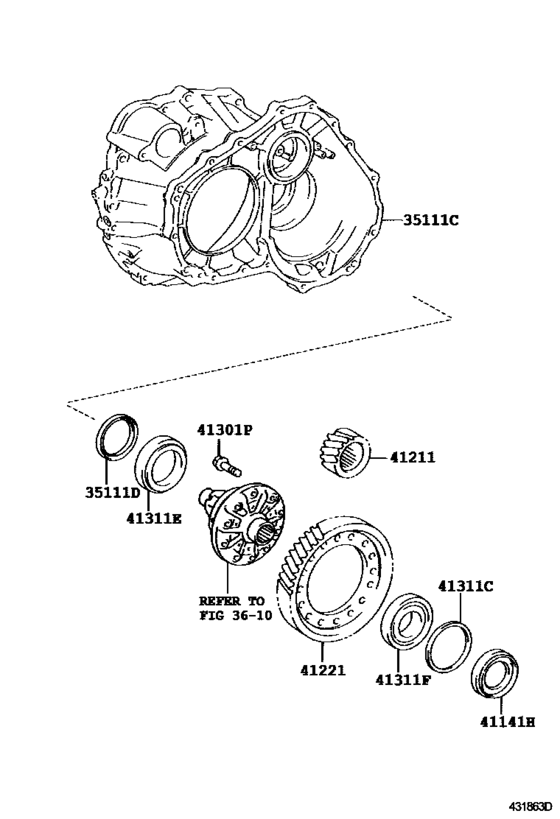

Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45) 45

#	OEM	Part name
35111	35105-48023	Housing, Transaxle
35111	90311-62006	Seal, Oil (For Transaxle Housing)
41141	90311-50037	Oil Seal, Front Drive Shaft, Lh
41141	90311-50052	Oil Seal, Front Drive Shaft, Lh
41141	90311-50044	Oil Seal, Front Drive Shaft, Lh - OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER)
41211	41211-48100	Pinion, Differential Drive
41221	41221-48100	Gear, Front Differential Ring
41301	90105-12302	Screw(For Front Differential Case)
41311	90564-79001	Shim (For Front Differential Case Rear)
41311	90564-79002	Shim (For Front Differential Case Rear)
41311	90564-79003	Shim (For Front Differential Case Rear)
41311	90564-79004	Shim (For Front Differential Case Rear)
41311	90564-79005	Shim (For Front Differential Case Rear)
41311	90564-79006	Shim (For Front Differential Case Rear)
41311	90564-79007	Shim (For Front Differential Case Rear)
41311	90564-79008	Shim (For Front Differential Case Rear)
41311	90564-79009	Shim (For Front Differential Case Rear)
41311	90564-79010	Shim (For Front Differential Case Rear)
41311	90564-79011	Shim (For Front Differential Case Rear)
41311	90564-79012	Shim (For Front Differential Case Rear)
41311	90564-79013	Shim (For Front Differential Case Rear)
41311	90564-79014	Shim (For Front Differential Case Rear)
41311	90564-79015	Shim (For Front Differential Case Rear)
41311	90564-79016	Shim (For Front Differential Case Rear)
41311	90564-79017	Shim (For Front Differential Case Rear)
41311	90564-79018	Shim (For Front Differential Case Rear)
41311	90564-79090	Shim (For Front Differential Case Rear)
41311	90564-79091	Shim (For Front Differential Case Rear)
41311	90564-79092	Shim (For Front Differential Case Rear)
41311	90564-79093	Shim (For Front Differential Case Rear)
41311	90564-79094	Shim (For Front Differential Case Rear)
41311	90564-79095	Shim (For Front Differential Case Rear)
41311	90564-79096	Shim (For Front Differential Case Rear)
41311	90564-79097	Shim (For Front Differential Case Rear)
41311	90564-79098	Shim (For Front Differential Case Rear)
41311	90564-79099	Shim (For Front Differential Case Rear)
41311	90564-79100	Shim (For Front Differential Case Rear)
41311	90564-79101	Shim (For Front Differential Case Rear)
41311	90564-79102	Shim (For Front Differential Case Rear)
41311	90564-79103	Shim (For Front Differential Case Rear)
41311	90564-79104	Shim (For Front Differential Case Rear)
41311	90564-79105	Shim (For Front Differential Case Rear)
41311	90564-79106	Shim (For Front Differential Case Rear)
41311	90366-62004	Bearing, Tapered Roller (For Front Differential Case Front)
41311	90366-50106	Bearing, Tapered Roller (For Front Differential Case Front)

OEM	Part name	Category
35105-48023	Housing, Transaxle	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
41211-48100	Pinion, Differential Drive	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
41221-48100	Gear, Front Differential Ring	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90105-12302	Screw(For Front Differential Case)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90311-50037	Oil Seal, Front Drive Shaft, Lh	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90311-50044	Oil Seal, Front Drive Shaft, Lh - OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90311-50052	Oil Seal, Front Drive Shaft, Lh	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90311-62006	Seal, Oil (For Transaxle Housing)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90366-50106	Bearing, Tapered Roller (For Front Differential Case Front)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90366-62004	Bearing, Tapered Roller (For Front Differential Case Front)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79001	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79002	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79003	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79004	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79005	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79006	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79007	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79008	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79009	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79010	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79011	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79012	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79013	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79014	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79015	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79016	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79017	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79018	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79090	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79091	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79092	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79093	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79094	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79095	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79096	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79097	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79098	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79099	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79100	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79101	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79102	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79103	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79104	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79105	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
90564-79106	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2007 - ] U151F (0705- )GSU45)
