Search › Model › GSU45

GSU45

Toyota HIGHLANDER-KLUGER · 2007 · 4,715 parts · 200 categories

4,715 items

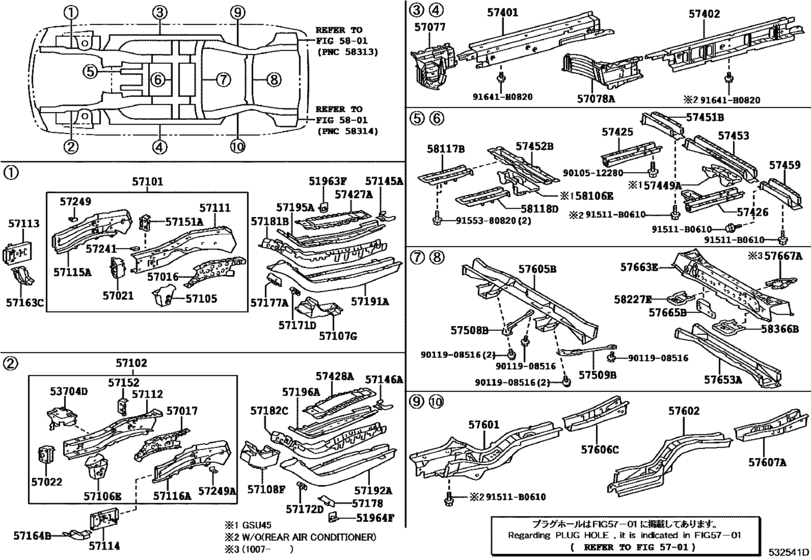

Floor Side Member ([05.2007 - ] (0705- )) 79

#	OEM	Part name
51963	51961-48040	Hook, Transport
53704	53704-48030	Support Sub-Assy, Battery, Lh
57016	57016-48020	Reinforcement Sub-Assy, Front Side Member, Rh
57017	57017-48020	Reinforcement Sub-Assy, Front Side Member, Lh
57021	57021-48012	Bracket Sub-Assy, Body Mounting, No.1 Rh
57021	57021-48013	Bracket Sub-Assy, Body Mounting, No.1 Rh
57022	57022-48012	Bracket Sub-Assy, Body Mounting, No.1 Lh
57022	57022-48013	Bracket Sub-Assy, Body Mounting, No.1 Lh
57077	57077-48040	Box Sub-Assy, Torque, Front Rh
57078	57078-48050	Box Sub-Assy, Torque, Front Lh
57101	57027-48900	Member Sub-Assy, Front Side, Rh
57101	57027-48905	Member Sub-Assy, Front Side, Rh
57102	57028-48900	Member Sub-Assy, Front Side, Lh
57102	90333-25001	Plug, Hole(For Hood)
57102	57028-48910	Member Sub-Assy, Front Side, Lh
57102	57028-48906	Member Sub-Assy, Front Side, Lh
57105	57105-28120	Bracket Sub-Assy, Front Suspension Member Mounting, Front Rh
57106	57106-28120	Plate Sub-Assy, Front Side Member, Lh
57107	57107-48030	Bracket Sub-Assy, Front Suspension Member Mounting, Rear Rh
57108	57108-48030	Bracket Sub-Assy, Front Suspension Member Mounting, Rear Lh
57111	57111-48020	Member, Front Side, Rh
57112	57112-48021	Member, Front Side, Lh
57113	57113-48021	Extension, Front Side Member, Rh
57114	57114-48021	Extension, Front Side Member, Lh
57115	57115-48020	Plate, Front Side Member, Outer Rh
57116	57116-48020	Plate, Front Side Member, Outer Lh
57116	57116-48021	Plate, Front Side Member, Outer Lh
57145	57145-48030	Reinforcement, Front Side Member, Rear Rh
57146	57146-48030	Reinforcement, Front Side Member, Rear Lh
57151	57151-48020	Reinforcement, Front Side Member, No.1 Rh
57152	57152-48020	Reinforcement, Front Side Member, No.1 Lh
57163	57163-48020	Reinforcement, Front Crossmember, No.1 Rh
57164	57164-48020	Reinforcement, Front Crossmember, No.1 Lh
57171	57171-48030	Plate, Front Side Member To Floor, Rh
57172	57172-48020	Plate, Front Side Member To Floor, Lh
57177	57177-48010	Plate, Front Side Member, No.7 Rh
57178	57178-48010	Plate, Front Side Member, No.7 Lh
57181	57181-48020	Plate, Front Side Member, No.3 Rh
57182	57182-48020	Reinforcement, Front Side Member, Rear No.1 Lh
57191	57191-48020	Member, Front Side, Inner Rear Rh
57192	57192-48020	Member, Front Side, Inner Rear Lh
57195	57195-48020	Reinforcement, Front Side Member, Front Rh
57196	57196-48020	Reinforcement, Front Side Member, Front Lh
57241	57241-48010	Reinforcement, Front Side Member, No.5 Rh
57249	57249-10040	Bracket, Front Side Member, Rh
57401	57401-48041	Member Sub-Assy, Main Floor Side, Rh
57402	57402-48041	Member Sub-Assy, Main Floor Side, Lh
57425	58107-48020	Reinforcement Sub-Assy, Front Cross To Front Panel, Rh
57426	58108-48020	Reinforce Sub-Assy, Front Cross To Front Panel, Lh
57427	57427-48030	Reinforcement, Front Floor, No.3 Rh
57428	57428-48030	Reinforcement, Front Floor, No.3 Lh
57428	57428-48040	Reinforcement, Front Floor, No.3 Lh
57449	57449-48011	Bracket, Diff Lock Lever Mount, No.2
57449	57449-48012	Bracket, Diff Lock Lever Mount, No.2
57451	57458-48012	Member, Front Floor Cross, Rh
57452	57452-48032	Member, Front Floor Cross, No.2
57453	57453-48011	Member, Front Floor Cross, No.3
57459	57459-48015	Member, Front Floor Cross, Lh
57508	57508-48020	Reinforcement Sub-Assy, Front Floor, Rh
57509	57509-48020	Reinforcement Sub-Assy, Front Floor, Lh
57601	57601-48914	Member Sub-Assy, Rear Floor Side, Rh
57602	57602-48913	Member Sub-Assy, Rear Floor Side, Lh
57605	57605-48050	Member Sub-Assy, Rear Floor Cross, No.1
57606	57606-48050	Member Sub-Assy, Rear Floor Cross, No.2
57607	57607-48010	Member Sub-Assy, Rear Floor Cross, No.3
57653	57653-48021	Member, Rear Floor Cross, No.2
57663	57663-48021	Member, Rear Floor Cross, Center
57665	57665-48020	Reinforcement, Rear Floor Crossmember, No.2
57667	57667-48020	Reinforcement, Rear Floor Crossmember, No.4
58106	57448-48030	Bracket, Diff Lock Lever Mount, No.1
58117	58117-48030	Reinforcement, Front Floor Side, Rh
58118	58118-48030	Reinforcement, Front Floor Side, Lh
58227	58127-48020	Plate, Front Floor Panel Side, Rh
58366	58366-48020	Bracket, Fuel Tank Support, Lh
91511	91511-B0610	BOLT FLANGE
91641	91641-H0820	Bolt
9010512280	90105-12280	Bolt (For Steering Knuckle Rh)
9011908516	90119-08516	BOLT
9155380820	91553-80820	BOLTFLANGE

OEM	Part name	Category
51961-48040	Hook, Transport	Floor Side Member ([05.2007 - ] (0705- ))
53704-48030	Support Sub-Assy, Battery, Lh	Floor Side Member ([05.2007 - ] (0705- ))
57016-48020	Reinforcement Sub-Assy, Front Side Member, Rh	Floor Side Member ([05.2007 - ] (0705- ))
57017-48020	Reinforcement Sub-Assy, Front Side Member, Lh	Floor Side Member ([05.2007 - ] (0705- ))
57021-48012	Bracket Sub-Assy, Body Mounting, No.1 Rh	Floor Side Member ([05.2007 - ] (0705- ))
57021-48013	Bracket Sub-Assy, Body Mounting, No.1 Rh	Floor Side Member ([05.2007 - ] (0705- ))
57022-48012	Bracket Sub-Assy, Body Mounting, No.1 Lh	Floor Side Member ([05.2007 - ] (0705- ))
57022-48013	Bracket Sub-Assy, Body Mounting, No.1 Lh	Floor Side Member ([05.2007 - ] (0705- ))
57027-48900	Member Sub-Assy, Front Side, Rh	Floor Side Member ([05.2007 - ] (0705- ))
57027-48905	Member Sub-Assy, Front Side, Rh	Floor Side Member ([05.2007 - ] (0705- ))
57028-48900	Member Sub-Assy, Front Side, Lh	Floor Side Member ([05.2007 - ] (0705- ))
57028-48906	Member Sub-Assy, Front Side, Lh	Floor Side Member ([05.2007 - ] (0705- ))
57028-48910	Member Sub-Assy, Front Side, Lh	Floor Side Member ([05.2007 - ] (0705- ))
57077-48040	Box Sub-Assy, Torque, Front Rh	Floor Side Member ([05.2007 - ] (0705- ))
57078-48050	Box Sub-Assy, Torque, Front Lh	Floor Side Member ([05.2007 - ] (0705- ))
57105-28120	Bracket Sub-Assy, Front Suspension Member Mounting, Front Rh	Floor Side Member ([05.2007 - ] (0705- ))
57106-28120	Plate Sub-Assy, Front Side Member, Lh	Floor Side Member ([05.2007 - ] (0705- ))
57107-48030	Bracket Sub-Assy, Front Suspension Member Mounting, Rear Rh	Floor Side Member ([05.2007 - ] (0705- ))
57108-48030	Bracket Sub-Assy, Front Suspension Member Mounting, Rear Lh	Floor Side Member ([05.2007 - ] (0705- ))
57111-48020	Member, Front Side, Rh	Floor Side Member ([05.2007 - ] (0705- ))
57112-48021	Member, Front Side, Lh	Floor Side Member ([05.2007 - ] (0705- ))
57113-48021	Extension, Front Side Member, Rh	Floor Side Member ([05.2007 - ] (0705- ))
57114-48021	Extension, Front Side Member, Lh	Floor Side Member ([05.2007 - ] (0705- ))
57115-48020	Plate, Front Side Member, Outer Rh	Floor Side Member ([05.2007 - ] (0705- ))
57116-48020	Plate, Front Side Member, Outer Lh	Floor Side Member ([05.2007 - ] (0705- ))
57116-48021	Plate, Front Side Member, Outer Lh	Floor Side Member ([05.2007 - ] (0705- ))
57145-48030	Reinforcement, Front Side Member, Rear Rh	Floor Side Member ([05.2007 - ] (0705- ))
57146-48030	Reinforcement, Front Side Member, Rear Lh	Floor Side Member ([05.2007 - ] (0705- ))
57151-48020	Reinforcement, Front Side Member, No.1 Rh	Floor Side Member ([05.2007 - ] (0705- ))
57152-48020	Reinforcement, Front Side Member, No.1 Lh	Floor Side Member ([05.2007 - ] (0705- ))
57163-48020	Reinforcement, Front Crossmember, No.1 Rh	Floor Side Member ([05.2007 - ] (0705- ))
57164-48020	Reinforcement, Front Crossmember, No.1 Lh	Floor Side Member ([05.2007 - ] (0705- ))
57171-48030	Plate, Front Side Member To Floor, Rh	Floor Side Member ([05.2007 - ] (0705- ))
57172-48020	Plate, Front Side Member To Floor, Lh	Floor Side Member ([05.2007 - ] (0705- ))
57177-48010	Plate, Front Side Member, No.7 Rh	Floor Side Member ([05.2007 - ] (0705- ))
57178-48010	Plate, Front Side Member, No.7 Lh	Floor Side Member ([05.2007 - ] (0705- ))
57181-48020	Plate, Front Side Member, No.3 Rh	Floor Side Member ([05.2007 - ] (0705- ))
57182-48020	Reinforcement, Front Side Member, Rear No.1 Lh	Floor Side Member ([05.2007 - ] (0705- ))
57191-48020	Member, Front Side, Inner Rear Rh	Floor Side Member ([05.2007 - ] (0705- ))
57192-48020	Member, Front Side, Inner Rear Lh	Floor Side Member ([05.2007 - ] (0705- ))
57195-48020	Reinforcement, Front Side Member, Front Rh	Floor Side Member ([05.2007 - ] (0705- ))
57196-48020	Reinforcement, Front Side Member, Front Lh	Floor Side Member ([05.2007 - ] (0705- ))
57241-48010	Reinforcement, Front Side Member, No.5 Rh	Floor Side Member ([05.2007 - ] (0705- ))
57249-10040	Bracket, Front Side Member, Rh	Floor Side Member ([05.2007 - ] (0705- ))
57401-48041	Member Sub-Assy, Main Floor Side, Rh	Floor Side Member ([05.2007 - ] (0705- ))
57402-48041	Member Sub-Assy, Main Floor Side, Lh	Floor Side Member ([05.2007 - ] (0705- ))
57427-48030	Reinforcement, Front Floor, No.3 Rh	Floor Side Member ([05.2007 - ] (0705- ))
57428-48030	Reinforcement, Front Floor, No.3 Lh	Floor Side Member ([05.2007 - ] (0705- ))
57428-48040	Reinforcement, Front Floor, No.3 Lh	Floor Side Member ([05.2007 - ] (0705- ))
57448-48030	Bracket, Diff Lock Lever Mount, No.1	Floor Side Member ([05.2007 - ] (0705- ))
57449-48011	Bracket, Diff Lock Lever Mount, No.2	Floor Side Member ([05.2007 - ] (0705- ))
57449-48012	Bracket, Diff Lock Lever Mount, No.2	Floor Side Member ([05.2007 - ] (0705- ))
57452-48032	Member, Front Floor Cross, No.2	Floor Side Member ([05.2007 - ] (0705- ))
57453-48011	Member, Front Floor Cross, No.3	Floor Side Member ([05.2007 - ] (0705- ))
57458-48012	Member, Front Floor Cross, Rh	Floor Side Member ([05.2007 - ] (0705- ))
57459-48015	Member, Front Floor Cross, Lh	Floor Side Member ([05.2007 - ] (0705- ))
57508-48020	Reinforcement Sub-Assy, Front Floor, Rh	Floor Side Member ([05.2007 - ] (0705- ))
57509-48020	Reinforcement Sub-Assy, Front Floor, Lh	Floor Side Member ([05.2007 - ] (0705- ))
57601-48914	Member Sub-Assy, Rear Floor Side, Rh	Floor Side Member ([05.2007 - ] (0705- ))
57602-48913	Member Sub-Assy, Rear Floor Side, Lh	Floor Side Member ([05.2007 - ] (0705- ))
57605-48050	Member Sub-Assy, Rear Floor Cross, No.1	Floor Side Member ([05.2007 - ] (0705- ))
57606-48050	Member Sub-Assy, Rear Floor Cross, No.2	Floor Side Member ([05.2007 - ] (0705- ))
57607-48010	Member Sub-Assy, Rear Floor Cross, No.3	Floor Side Member ([05.2007 - ] (0705- ))
57653-48021	Member, Rear Floor Cross, No.2	Floor Side Member ([05.2007 - ] (0705- ))
57663-48021	Member, Rear Floor Cross, Center	Floor Side Member ([05.2007 - ] (0705- ))
57665-48020	Reinforcement, Rear Floor Crossmember, No.2	Floor Side Member ([05.2007 - ] (0705- ))
57667-48020	Reinforcement, Rear Floor Crossmember, No.4	Floor Side Member ([05.2007 - ] (0705- ))
58107-48020	Reinforcement Sub-Assy, Front Cross To Front Panel, Rh	Floor Side Member ([05.2007 - ] (0705- ))
58108-48020	Reinforce Sub-Assy, Front Cross To Front Panel, Lh	Floor Side Member ([05.2007 - ] (0705- ))
58117-48030	Reinforcement, Front Floor Side, Rh	Floor Side Member ([05.2007 - ] (0705- ))
58118-48030	Reinforcement, Front Floor Side, Lh	Floor Side Member ([05.2007 - ] (0705- ))
58127-48020	Plate, Front Floor Panel Side, Rh	Floor Side Member ([05.2007 - ] (0705- ))
58366-48020	Bracket, Fuel Tank Support, Lh	Floor Side Member ([05.2007 - ] (0705- ))
90105-12280	Bolt (For Steering Knuckle Rh)	Floor Side Member ([05.2007 - ] (0705- ))
90119-08516	BOLT	Floor Side Member ([05.2007 - ] (0705- ))
90333-25001	Plug, Hole(For Hood)	Floor Side Member ([05.2007 - ] (0705- ))
91511-B0610	BOLT FLANGE	Floor Side Member ([05.2007 - ] (0705- ))
91553-80820	BOLTFLANGE	Floor Side Member ([05.2007 - ] (0705- ))
91641-H0820	Bolt	Floor Side Member ([05.2007 - ] (0705- ))

Source: Public OEM parts-catalog data
Variants: 2 / 17
Category: 200
Collected: 2026-08-03
