Search › Model › GSU45

GSU45

Toyota HIGHLANDER-KLUGER · 2007 · 4,715 parts · 200 categories

4,715 items

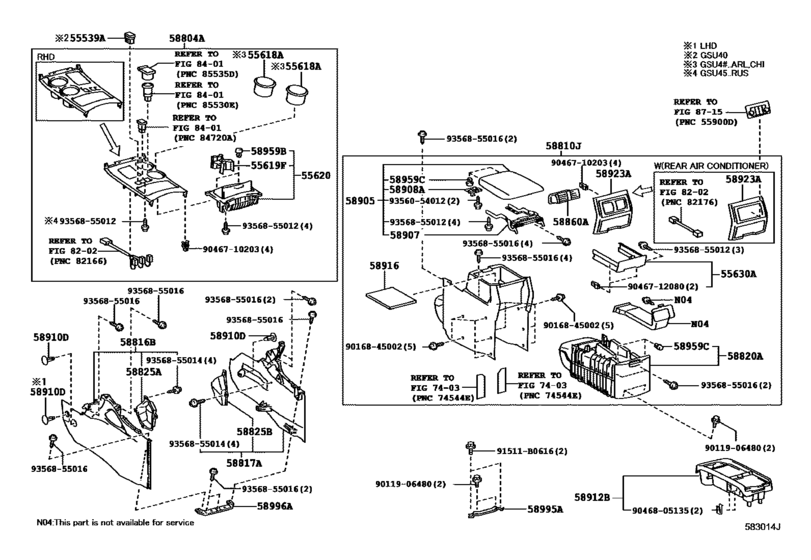

Console Box & Bracket ([05.2007 - ] (0705- )) 62

#	OEM	Part name
55619	55618-48150	Holder, Console Box Cup, No.2
55620	55620-48130-C0	Holder Assy, Instrument Panel Cup
55620	55620-48130-E0	Holder Assy, Instrument Panel Cup
55620	55620-48140-C0	Holder Assy, Instrument Panel Cup
55620	55620-48140-E0	Holder Assy, Instrument Panel Cup
55630	55630-48140-B0	Holder, Rear Console Box, Cup
55630	55630-48140-C0	Holder, Rear Console Box, Cup
55630	55630-48140-E0	Holder, Rear Console Box, Cup
58804	58804-48290-C0	Panel Sub-Assy, Console, Upper
58804	58804-48290-E0	Panel Sub-Assy, Console, Upper
58804	58804-48300-C0	Panel Sub-Assy, Console, Upper
58804	58804-48300-E0	Panel Sub-Assy, Console, Upper
58810	58810-48451-B0	Box Assy, Console
58810	58810-48451-C0	Box Assy, Console
58810	58810-48451-E0	Box Assy, Console
58810	58810-48471-B0	Box Assy, Console
58810	58810-48471-C0	Box Assy, Console
58810	58810-48471-E0	Box Assy, Console
58816	58816-48020-C0	Insert, Console Box
58816	58816-48020-E0	Insert, Console Box
58817	58817-48020-C0	Insert, Console Box, Front No.2
58817	58817-48020-E0	Insert, Console Box, Front No.2
58820	58820-48011-B0	Box Assy, Console Compartment
58820	58820-48011-C0	Box Assy, Console Compartment
58820	58820-48011-E0	Box Assy, Console Compartment
58825	58825-48020-C0	Pocket, Console Box
58825	58825-48020-E0	Pocket, Console Box
58825	58825-48030-C0	Pocket, Console Box
58825	58825-48030-E0	Pocket, Console Box
58860	58860-48030-B0	Register Assy, Console Box
58860	58860-48030-C0	Register Assy, Console Box
58860	58860-48030-E0	Register Assy, Console Box
58905	58905-48010-B0	Door Sub-Assy, Console Compartment
58905	58905-48010-C0	Door Sub-Assy, Console Compartment
58905	58905-48010-E0	Door Sub-Assy, Console Compartment
58907	58907-33100	Hinge Sub-Assy, Console Compartment Door
58908	58908-33030	Lock Sub-Assy, Console Compartment Door
58910	90467-06020-C0	Clip
58912	58912-48091-B0	Box, Rear Console, Lower
58912	58912-48091-C0	Box, Rear Console, Lower
58912	58912-48091-E0	Box, Rear Console, Lower
58916	58916-48030	Mat, Box Bottom
58923	58923-48040-B0	Panel, Console Rear End
58923	58923-48040-C0	Panel, Console Rear End
58923	58923-48040-E0	Panel, Console Rear End
58923	58923-48060-B0	Panel, Console Rear End
58923	58923-48060-C0	Panel, Console Rear End
58923	58923-48060-E0	Panel, Console Rear End
58959	58959-60060	Cushion, Instrument Panel
58995	58995-48040	Bracket, Console Box Mounting, No.1
58996	58996-48030	Bracket, Console Box Mounting, No.2
91511	91511-B0616	BOLT, FLANGE
91511	90080-10164	BOLT, FLANGE
9011906480	90119-06480	BOLT
9016845002	90168-45002	New Genuine Part
9046710203	90467-10203	Direct
9046712080	90467-12080	Clip(For Panel, Instrument Cluster Finish)
9046805135	90468-05135	Clip, Instrument Panel
9356054012	93560-54012	Screw
9356855012	93568-55012	SCREW
9356855014	93568-55014	Screw
9356855016	93568-55016	Screw

OEM	Part name	Category
55618-48150	Holder, Console Box Cup, No.2	Console Box & Bracket ([05.2007 - ] (0705- ))
55620-48130-C0	Holder Assy, Instrument Panel Cup	Console Box & Bracket ([05.2007 - ] (0705- ))
55620-48130-E0	Holder Assy, Instrument Panel Cup	Console Box & Bracket ([05.2007 - ] (0705- ))
55620-48140-C0	Holder Assy, Instrument Panel Cup	Console Box & Bracket ([05.2007 - ] (0705- ))
55620-48140-E0	Holder Assy, Instrument Panel Cup	Console Box & Bracket ([05.2007 - ] (0705- ))
55630-48140-B0	Holder, Rear Console Box, Cup	Console Box & Bracket ([05.2007 - ] (0705- ))
55630-48140-C0	Holder, Rear Console Box, Cup	Console Box & Bracket ([05.2007 - ] (0705- ))
55630-48140-E0	Holder, Rear Console Box, Cup	Console Box & Bracket ([05.2007 - ] (0705- ))
58804-48290-C0	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([05.2007 - ] (0705- ))
58804-48290-E0	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([05.2007 - ] (0705- ))
58804-48300-C0	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([05.2007 - ] (0705- ))
58804-48300-E0	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([05.2007 - ] (0705- ))
58810-48451-B0	Box Assy, Console	Console Box & Bracket ([05.2007 - ] (0705- ))
58810-48451-C0	Box Assy, Console	Console Box & Bracket ([05.2007 - ] (0705- ))
58810-48451-E0	Box Assy, Console	Console Box & Bracket ([05.2007 - ] (0705- ))
58810-48471-B0	Box Assy, Console	Console Box & Bracket ([05.2007 - ] (0705- ))
58810-48471-C0	Box Assy, Console	Console Box & Bracket ([05.2007 - ] (0705- ))
58810-48471-E0	Box Assy, Console	Console Box & Bracket ([05.2007 - ] (0705- ))
58816-48020-C0	Insert, Console Box	Console Box & Bracket ([05.2007 - ] (0705- ))
58816-48020-E0	Insert, Console Box	Console Box & Bracket ([05.2007 - ] (0705- ))
58817-48020-C0	Insert, Console Box, Front No.2	Console Box & Bracket ([05.2007 - ] (0705- ))
58817-48020-E0	Insert, Console Box, Front No.2	Console Box & Bracket ([05.2007 - ] (0705- ))
58820-48011-B0	Box Assy, Console Compartment	Console Box & Bracket ([05.2007 - ] (0705- ))
58820-48011-C0	Box Assy, Console Compartment	Console Box & Bracket ([05.2007 - ] (0705- ))
58820-48011-E0	Box Assy, Console Compartment	Console Box & Bracket ([05.2007 - ] (0705- ))
58825-48020-C0	Pocket, Console Box	Console Box & Bracket ([05.2007 - ] (0705- ))
58825-48020-E0	Pocket, Console Box	Console Box & Bracket ([05.2007 - ] (0705- ))
58825-48030-C0	Pocket, Console Box	Console Box & Bracket ([05.2007 - ] (0705- ))
58825-48030-E0	Pocket, Console Box	Console Box & Bracket ([05.2007 - ] (0705- ))
58860-48030-B0	Register Assy, Console Box	Console Box & Bracket ([05.2007 - ] (0705- ))
58860-48030-C0	Register Assy, Console Box	Console Box & Bracket ([05.2007 - ] (0705- ))
58860-48030-E0	Register Assy, Console Box	Console Box & Bracket ([05.2007 - ] (0705- ))
58905-48010-B0	Door Sub-Assy, Console Compartment	Console Box & Bracket ([05.2007 - ] (0705- ))
58905-48010-C0	Door Sub-Assy, Console Compartment	Console Box & Bracket ([05.2007 - ] (0705- ))
58905-48010-E0	Door Sub-Assy, Console Compartment	Console Box & Bracket ([05.2007 - ] (0705- ))
58907-33100	Hinge Sub-Assy, Console Compartment Door	Console Box & Bracket ([05.2007 - ] (0705- ))
58908-33030	Lock Sub-Assy, Console Compartment Door	Console Box & Bracket ([05.2007 - ] (0705- ))
58912-48091-B0	Box, Rear Console, Lower	Console Box & Bracket ([05.2007 - ] (0705- ))
58912-48091-C0	Box, Rear Console, Lower	Console Box & Bracket ([05.2007 - ] (0705- ))
58912-48091-E0	Box, Rear Console, Lower	Console Box & Bracket ([05.2007 - ] (0705- ))
58916-48030	Mat, Box Bottom	Console Box & Bracket ([05.2007 - ] (0705- ))
58923-48040-B0	Panel, Console Rear End	Console Box & Bracket ([05.2007 - ] (0705- ))
58923-48040-C0	Panel, Console Rear End	Console Box & Bracket ([05.2007 - ] (0705- ))
58923-48040-E0	Panel, Console Rear End	Console Box & Bracket ([05.2007 - ] (0705- ))
58923-48060-B0	Panel, Console Rear End	Console Box & Bracket ([05.2007 - ] (0705- ))
58923-48060-C0	Panel, Console Rear End	Console Box & Bracket ([05.2007 - ] (0705- ))
58923-48060-E0	Panel, Console Rear End	Console Box & Bracket ([05.2007 - ] (0705- ))
58959-60060	Cushion, Instrument Panel	Console Box & Bracket ([05.2007 - ] (0705- ))
58995-48040	Bracket, Console Box Mounting, No.1	Console Box & Bracket ([05.2007 - ] (0705- ))
58996-48030	Bracket, Console Box Mounting, No.2	Console Box & Bracket ([05.2007 - ] (0705- ))
90080-10164	BOLT, FLANGE	Console Box & Bracket ([05.2007 - ] (0705- ))
90119-06480	BOLT	Console Box & Bracket ([05.2007 - ] (0705- ))
90168-45002	New Genuine Part	Console Box & Bracket ([05.2007 - ] (0705- ))
90467-06020-C0	Clip	Console Box & Bracket ([05.2007 - ] (0705- ))
90467-10203	Direct	Console Box & Bracket ([05.2007 - ] (0705- ))
90467-12080	Clip(For Panel, Instrument Cluster Finish)	Console Box & Bracket ([05.2007 - ] (0705- ))
90468-05135	Clip, Instrument Panel	Console Box & Bracket ([05.2007 - ] (0705- ))
91511-B0616	BOLT, FLANGE	Console Box & Bracket ([05.2007 - ] (0705- ))
93560-54012	Screw	Console Box & Bracket ([05.2007 - ] (0705- ))
93568-55012	SCREW	Console Box & Bracket ([05.2007 - ] (0705- ))
93568-55014	Screw	Console Box & Bracket ([05.2007 - ] (0705- ))
93568-55016	Screw	Console Box & Bracket ([05.2007 - ] (0705- ))

Source: Public OEM parts-catalog data
Variants: 2 / 17
Category: 200
Collected: 2026-08-03
