Search › Model › GSU45
GSU45

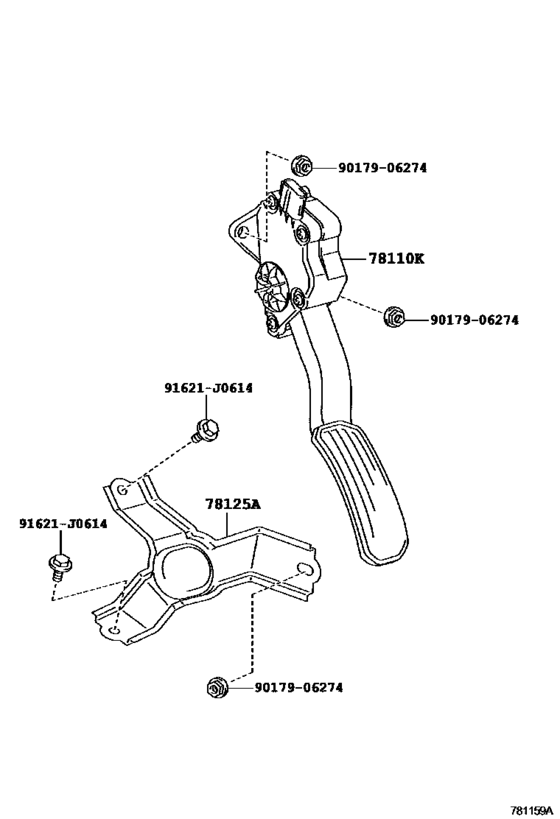

Accelerator Link ([05.2007 - ] (0705- )LHD) 5
| # | OEM | Part name |
|---|---|---|
| 78110 | 78110-33110 | Pedal Assy, Accelerator |
| 78110 | 78110-33111 | Pedal Assy, Accelerator |
| 78125 | 78125-48010 | Bracket, Accelerator Pedal Rod, No.2 |
| 91621 | 91621-J0614 | BOLT W-WASHER |
| 9017906274 | 90179-06274 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 78110-33110 | Pedal Assy, Accelerator | Accelerator Link ([05.2007 - ] (0705- )LHD) |
| 78110-33111 | Pedal Assy, Accelerator | Accelerator Link ([05.2007 - ] (0705- )LHD) |
| 78125-48010 | Bracket, Accelerator Pedal Rod, No.2 | Accelerator Link ([05.2007 - ] (0705- )LHD) |
| 90179-06274 | Nut | Accelerator Link ([05.2007 - ] (0705- )LHD) |
| 91621-J0614 | BOLT W-WASHER | Accelerator Link ([05.2007 - ] (0705- )LHD) |
