Search › Model › GSU40
GSU40

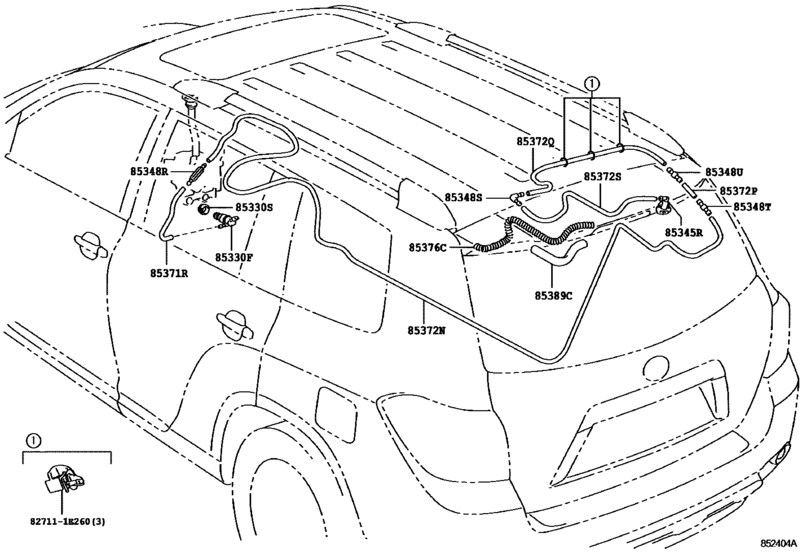

Rear Washer ([10.2009 - ] (0910- )) 15
| # | OEM | Part name |
|---|---|---|
| 85330 | 85330-60180 | Motor Assy, Rear Washer |
| 85330 | 85336-60300 | Bush, Windshield Washer Jar |
| 85345 | 85391-48030 | Nozzle, Rear Washer |
| 85345 | 85391-48040 | Nozzle, Rear Washer |
| 85348 | 85349-32150 | Joint, Windshield Washer Hose, No.1 |
| 85348 | 85375-02260 | Joint, Windshield Washer Elbow, No.1 |
| 85348 | 85375-0E010 | Valve Sub-Assy, Washer No.2 |
| 85371 | 90068-33016 | Hose, Windshield Washer (From Motor To Joint) - REAR WASHER (FROM JOINT TO NOZZLE) |
| 85372 | 90068-59095 | Hose, Rear Washer (From Joint To Joint), No.1 |
| 85372 | 90068-33026 | Hose, Windshield Washer (From Motor To Joint) |
| 85372 | 90068-59088 | Hose, Rear Washer (From Joint To Joint), No.3 |
| 85372 | 90068-33086 | Hose, Rear Washer (From Joint To Joint) |
| 85376 | 85389-12670 | Spring, Washer Hose |
| 85389 | 85389-48290 | Packing, Windshield Washer Hose, No.2 |
| 9223372036854775807 | 82711-1E260 | Clamp (For Fuel Lid Lock Control Cable) |
| OEM | Part name | Category |
|---|---|---|
| 82711-1E260 | Clamp (For Fuel Lid Lock Control Cable) | Rear Washer ([10.2009 - ] (0910- )) |
| 85330-60180 | Motor Assy, Rear Washer | Rear Washer ([10.2009 - ] (0910- )) |
| 85336-60300 | Bush, Windshield Washer Jar | Rear Washer ([10.2009 - ] (0910- )) |
| 85349-32150 | Joint, Windshield Washer Hose, No.1 | Rear Washer ([10.2009 - ] (0910- )) |
| 85375-02260 | Joint, Windshield Washer Elbow, No.1 | Rear Washer ([10.2009 - ] (0910- )) |
| 85375-0E010 | Valve Sub-Assy, Washer No.2 | Rear Washer ([10.2009 - ] (0910- )) |
| 85389-12670 | Spring, Washer Hose | Rear Washer ([10.2009 - ] (0910- )) |
| 85389-48290 | Packing, Windshield Washer Hose, No.2 | Rear Washer ([10.2009 - ] (0910- )) |
| 85391-48030 | Nozzle, Rear Washer | Rear Washer ([10.2009 - ] (0910- )) |
| 85391-48040 | Nozzle, Rear Washer | Rear Washer ([10.2009 - ] (0910- )) |
| 90068-33016 | Hose, Windshield Washer (From Motor To Joint) - REAR WASHER (FROM JOINT TO NOZZLE) | Rear Washer ([10.2009 - ] (0910- )) |
| 90068-33026 | Hose, Windshield Washer (From Motor To Joint) | Rear Washer ([10.2009 - ] (0910- )) |
| 90068-33086 | Hose, Rear Washer (From Joint To Joint) | Rear Washer ([10.2009 - ] (0910- )) |
| 90068-59088 | Hose, Rear Washer (From Joint To Joint), No.3 | Rear Washer ([10.2009 - ] (0910- )) |
| 90068-59095 | Hose, Rear Washer (From Joint To Joint), No.1 | Rear Washer ([10.2009 - ] (0910- )) |
