GSU40

Toyota HIGHLANDER-KLUGER · 2007 · 5,529 parts · 239 categories

5,529 items

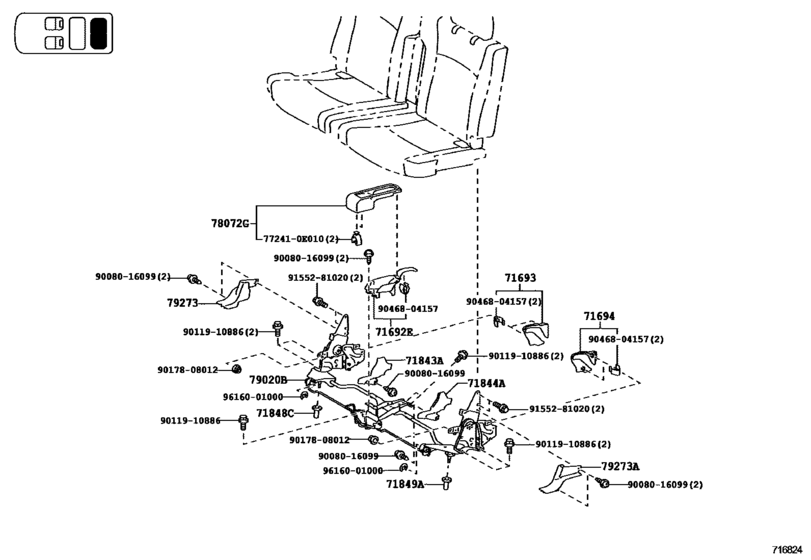

Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- )) 30

#	OEM	Part name
71692	71692-0E010-B0	Cover, Rear Seat Cushion Hinge, No.2
71692	71692-0E010-C0	Cover, Rear Seat Cushion Hinge, No.2
71692	71692-0E010-E0	Cover, Rear Seat Cushion Hinge, No.2
71693	71693-0E010	Cover, Rear Seat Cushion Hinge, Lower Rh
71694	71694-0E010	Cover, Rear Seat Cushion Hinge, Lower Lh
71843	71843-0E030-B0	Cover, Rear Seat Reclining, No.2 Rh
71843	71843-0E030-C0	Cover, Rear Seat Reclining, No.2 Rh
71843	71843-0E030-E0	Cover, Rear Seat Reclining, No.2 Rh
71844	71844-0E020	Cover, Rear Seat Reclining, No.2 Lh
71844	71844-0E030-B0	Cover, Rear Seat Reclining, No.2 Lh
71844	71844-0E030-C0	Cover, Rear Seat Reclining, No.2 Lh
71844	71844-0E030-E0	Cover, Rear Seat Reclining, No.2 Lh
71848	71848-33010	Cap, Rear Seat
78072	78072-0E010-B0	Cover Sub-Assy, Center Sub Seat Cushion
78072	78072-0E010-C0	Cover Sub-Assy, Center Sub Seat Cushion
78072	78072-0E010-E0	Cover Sub-Assy, Center Sub Seat Cushion
79020	79030-0E010	Leg Assy, No.2 Seat
79273	79273-0E030-B0	Cover, No.2 Seat Hinge
79273	79273-0E030-C0	Cover, No.2 Seat Hinge
79273	79273-0E030-E0	Cover, No.2 Seat Hinge
79273	79273-0E040-B0	Cover, No.2 Seat Hinge, No.2
79273	79273-0E040-C0	Cover, No.2 Seat Hinge, No.2
79273	79273-0E040-E0	Cover, No.2 Seat Hinge, No.2
9008016099	90080-16099	SCREW PAN TAPPING
9011910886	90119-10886	BOLT WWASHER
9017808012	90178-08012	NUT FLANGE
9046804157	90468-04157	Clip (Metal)
9155281020	91552-81020	Bolt(For Alternator)
9616001000	96160-01000	Ring, E(For Clutch Booster Air Valve)
7724100000000000	77241-0E010	Tube, Fuel Main, No.1

OEM	Part name	Category
71692-0E010-B0	Cover, Rear Seat Cushion Hinge, No.2	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
71692-0E010-C0	Cover, Rear Seat Cushion Hinge, No.2	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
71692-0E010-E0	Cover, Rear Seat Cushion Hinge, No.2	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
71693-0E010	Cover, Rear Seat Cushion Hinge, Lower Rh	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
71694-0E010	Cover, Rear Seat Cushion Hinge, Lower Lh	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
71843-0E030-B0	Cover, Rear Seat Reclining, No.2 Rh	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
71843-0E030-C0	Cover, Rear Seat Reclining, No.2 Rh	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
71843-0E030-E0	Cover, Rear Seat Reclining, No.2 Rh	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
71844-0E020	Cover, Rear Seat Reclining, No.2 Lh	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
71844-0E030-B0	Cover, Rear Seat Reclining, No.2 Lh	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
71844-0E030-C0	Cover, Rear Seat Reclining, No.2 Lh	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
71844-0E030-E0	Cover, Rear Seat Reclining, No.2 Lh	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
71848-33010	Cap, Rear Seat	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
77241-0E010	Tube, Fuel Main, No.1	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
78072-0E010-B0	Cover Sub-Assy, Center Sub Seat Cushion	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
78072-0E010-C0	Cover Sub-Assy, Center Sub Seat Cushion	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
78072-0E010-E0	Cover Sub-Assy, Center Sub Seat Cushion	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
79030-0E010	Leg Assy, No.2 Seat	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
79273-0E030-B0	Cover, No.2 Seat Hinge	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
79273-0E030-C0	Cover, No.2 Seat Hinge	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
79273-0E030-E0	Cover, No.2 Seat Hinge	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
79273-0E040-B0	Cover, No.2 Seat Hinge, No.2	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
79273-0E040-C0	Cover, No.2 Seat Hinge, No.2	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
79273-0E040-E0	Cover, No.2 Seat Hinge, No.2	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
90080-16099	SCREW PAN TAPPING	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
90119-10886	BOLT WWASHER	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
90178-08012	NUT FLANGE	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
90468-04157	Clip (Metal)	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
91552-81020	Bolt(For Alternator)	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
96160-01000	Ring, E(For Clutch Booster Air Valve)	Rear Seat & Seat Track ([08.2010 - ] REAR NO.2 SEAT LEG (1008- ))
