Search › Model › GSL33
GSL33

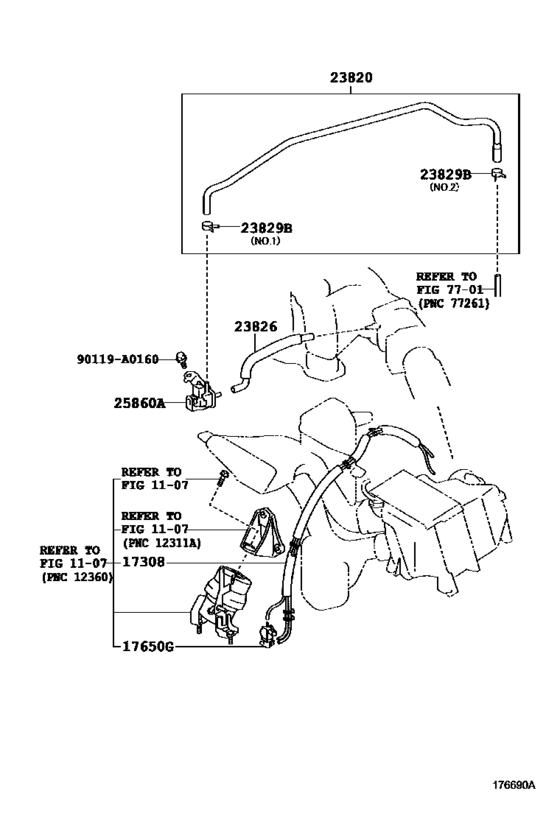

Vacuum Piping ([01.2010 - 08.2016] (1001-1608)2GRFE) 9
| # | OEM | Part name |
|---|---|---|
| 17308 | 17308-0P040 | Hose Sub-Assy, Vacuum(For Idle-Up) |
| 17650 | 90910-12204 | Valve, Duty Vacuum Switching |
| 23820 | 23820-0P170 | Hose Assy, Fuel Vapor Feed |
| 23826 | 23826-0P130 | Hose, Fuel Vapor Feed, No.1 |
| 23829 | 90466-11003 | Clamp Or Clip(For Radiator Reserve Tank Hose) |
| 23829 | 90466-A0001 | Clip(For Fuel Vapor Feed Hose, No.1) |
| 23829 | 96132-51300 | Clip(For Ventilation Hose No.2) |
| 25860 | 25860-31070 | Valve Assy, Vacuum Switching, No.1 |
| 90119 | 90119-A0160 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 17308-0P040 | Hose Sub-Assy, Vacuum(For Idle-Up) | Vacuum Piping ([01.2010 - 08.2016] (1001-1608)2GRFE) |
| 23820-0P170 | Hose Assy, Fuel Vapor Feed | Vacuum Piping ([01.2010 - 08.2016] (1001-1608)2GRFE) |
| 23826-0P130 | Hose, Fuel Vapor Feed, No.1 | Vacuum Piping ([01.2010 - 08.2016] (1001-1608)2GRFE) |
| 25860-31070 | Valve Assy, Vacuum Switching, No.1 | Vacuum Piping ([01.2010 - 08.2016] (1001-1608)2GRFE) |
| 90119-A0160 | New Genuine Part | Vacuum Piping ([01.2010 - 08.2016] (1001-1608)2GRFE) |
| 90466-11003 | Clamp Or Clip(For Radiator Reserve Tank Hose) | Vacuum Piping ([01.2010 - 08.2016] (1001-1608)2GRFE) |
| 90466-A0001 | Clip(For Fuel Vapor Feed Hose, No.1) | Vacuum Piping ([01.2010 - 08.2016] (1001-1608)2GRFE) |
| 90910-12204 | Valve, Duty Vacuum Switching | Vacuum Piping ([01.2010 - 08.2016] (1001-1608)2GRFE) |
| 96132-51300 | Clip(For Ventilation Hose No.2) | Vacuum Piping ([01.2010 - 08.2016] (1001-1608)2GRFE) |
