Search › Model › GSL30
GSL30

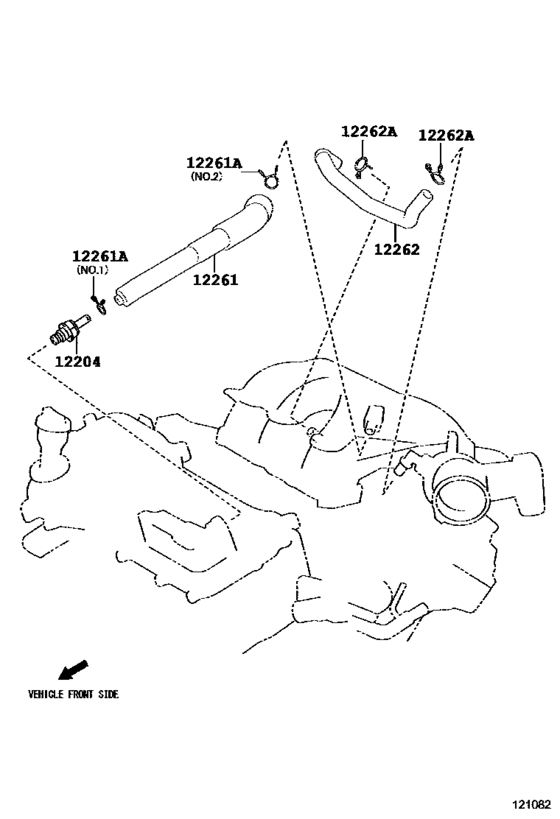

Ventilation Hose ([08.2016 - ] (1608- )) 6
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-0P020 | Valve Sub-Assy, Ventilation |
| 12261 | 12261-31200 | Hose, Ventilation |
| 12261 | 90467-15120 | Clip Or Clamp(For Ventilation Hose) |
| 12261 | 90467-19003 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12262-31190 | Hose, Ventilation, No.2 |
| 12262 | 90466-A0028 | Clip(For Ventilation Hose No.2) |
| OEM | Part name | Category |
|---|---|---|
| 12204-0P020 | Valve Sub-Assy, Ventilation | Ventilation Hose ([08.2016 - ] (1608- )) |
| 12261-31200 | Hose, Ventilation | Ventilation Hose ([08.2016 - ] (1608- )) |
| 12262-31190 | Hose, Ventilation, No.2 | Ventilation Hose ([08.2016 - ] (1608- )) |
| 90466-A0028 | Clip(For Ventilation Hose No.2) | Ventilation Hose ([08.2016 - ] (1608- )) |
| 90467-15120 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([08.2016 - ] (1608- )) |
| 90467-19003 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([08.2016 - ] (1608- )) |
