Search › Model › GSL30

GSL30

Toyota SIENNA · 2010 · 3,735 parts · 311 categories

3,735 items

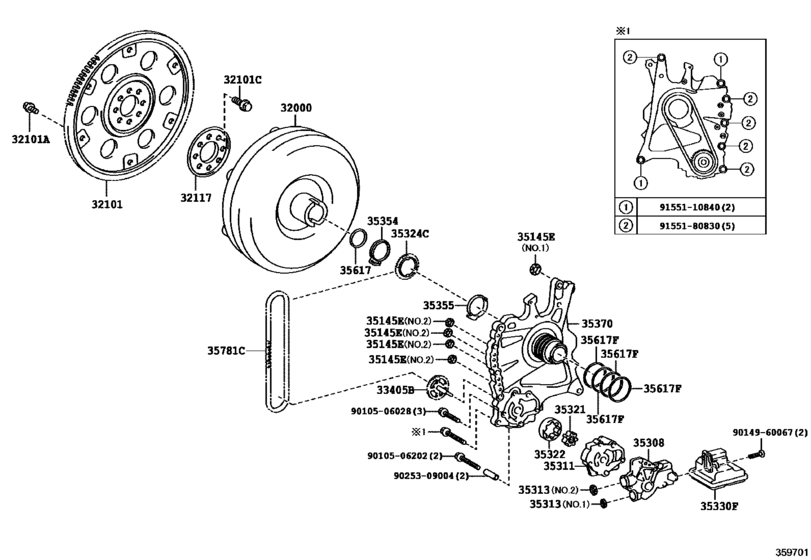

Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- )) 33

#	OEM	Part name
32000	32000-48060	Converter Assy, Torque
32101	32101-0E010	Gear Sub-Assy, Drive Plate & Ring
32101	32101-48010	Gear Sub-Assy, Drive Plate & Ring
32101	90109-09001	Bolt(For Drive Plate & Torque Converter Setting)
32101	90119-09025	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-10048	Bolt, Flywheel Setting
32117	32117-32020	Spacer, Drive Plate, Rear
33405	33405-48010	Shaft Sub-Assy, Oil Pump Drive
35145	35145-33010	Gasket, Transaxle Case
35145	35145-48030	Gasket, Transaxle Case
35308	35308-48100	Cover Sub-Assy, Front Oil Pump
35308	35308-48110	Cover Sub-Assy, Front Oil Pump
35311	35311-48030	Body, Front Oil Pump
35311	35311-48040	Body, Front Oil Pump
35313	35313-48020	Gasket, Front Oil Pump Cover
35313	35313-48030	Gasket, Front Oil Pump Cover
35321	35321-48110	Gear, Front Oil Pump Drive
35322	35322-48110	Gear, Front Oil Pump Driven
35324	35324-48030	Sprocket, Transmission Oil Pump Drive
35324	35324-48040	Sprocket, Transmission Oil Pump Drive
35330	35330-48040	Strainer Assy, Oil
35354	35354-48010	Washer, Oil Pump Sprocket Thrust, Front
35355	35355-48010	Washer, Oil Pump Sprocket Thrust, Rear
35370	35370-48030	Shaft Assy, Stator
35370	35370-48040	Shaft Assy, Stator
35617	35617-48050	Ring, Clutch Drum Oil Seal
35617	35617-48060	Ring, Clutch Drum Oil Seal
35781	35781-48020	Chain, Transmission Drive
9010506028	90105-06028	New Genuine Part
9010506202	90105-06202	Bolt(For Cylinder Head Cover)
9014960067	90149-60067	Bolt (For Stator Shaft)
9155110840	91551-10840	Bolt(For Transaxle Case & Transmission Case Setting)
9155180830	91551-80830	Bolt, Compressor, No.2

OEM	Part name	Category
32000-48060	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
32101-0E010	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
32101-48010	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
32117-32020	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
33405-48010	Shaft Sub-Assy, Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
35145-33010	Gasket, Transaxle Case	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
35145-48030	Gasket, Transaxle Case	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
35308-48100	Cover Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
35308-48110	Cover Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
35311-48030	Body, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
35311-48040	Body, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
35313-48020	Gasket, Front Oil Pump Cover	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
35313-48030	Gasket, Front Oil Pump Cover	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
35321-48110	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
35322-48110	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
35324-48030	Sprocket, Transmission Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
35324-48040	Sprocket, Transmission Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
35330-48040	Strainer Assy, Oil	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
35354-48010	Washer, Oil Pump Sprocket Thrust, Front	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
35355-48010	Washer, Oil Pump Sprocket Thrust, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
35370-48030	Shaft Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
35370-48040	Shaft Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
35617-48050	Ring, Clutch Drum Oil Seal	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
35617-48060	Ring, Clutch Drum Oil Seal	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
35781-48020	Chain, Transmission Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
90105-06028	New Genuine Part	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
90105-06202	Bolt(For Cylinder Head Cover)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
90105-10048	Bolt, Flywheel Setting	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
90109-09001	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
90119-09025	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
90149-60067	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
91551-10840	Bolt(For Transaxle Case & Transmission Case Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
91551-80830	Bolt, Compressor, No.2	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2016 - ] UA80E,UA80F (1608- ))
