Search › Model › GSL30
GSL30

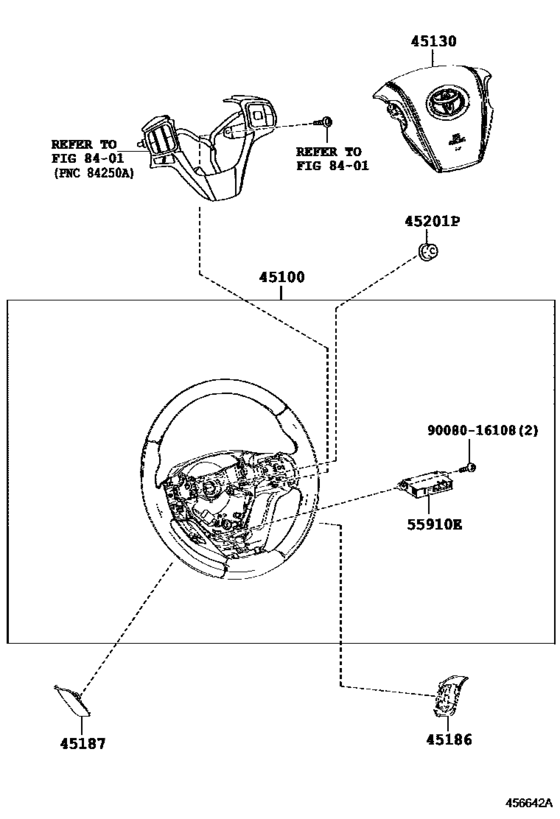

Steering Wheel ([09.2014 - ] 3-SPOKE (1409- )) 8
| # | OEM | Part name |
|---|---|---|
| 45100 | 45100-0E372-C0 | Wheel Assy, Steering |
| 45100 | 45100-08240-C0 | Wheel Assy, Steering |
| 45130 | 45130-08100-C0 | Button Assy, Horn |
| 45186 | 45186-0E060-C0 | Cover, Steering Wheel, Lower No.2 |
| 45187 | 45187-0E050-C0 | Cover, Steering Wheel, Lower No.3 |
| 45201 | 90080-17234 | Nut, Steering Wheel Set |
| 55910 | 55910-53011 | Control Assy, Steering Wheel Heater |
| 9008016108 | 90080-16108 | Screw, Steering Wheel Pad Attaching |
| OEM | Part name | Category |
|---|---|---|
| 45100-08240-C0 | Wheel Assy, Steering | Steering Wheel ([09.2014 - ] 3-SPOKE (1409- )) |
| 45100-0E372-C0 | Wheel Assy, Steering | Steering Wheel ([09.2014 - ] 3-SPOKE (1409- )) |
| 45130-08100-C0 | Button Assy, Horn | Steering Wheel ([09.2014 - ] 3-SPOKE (1409- )) |
| 45186-0E060-C0 | Cover, Steering Wheel, Lower No.2 | Steering Wheel ([09.2014 - ] 3-SPOKE (1409- )) |
| 45187-0E050-C0 | Cover, Steering Wheel, Lower No.3 | Steering Wheel ([09.2014 - ] 3-SPOKE (1409- )) |
| 55910-53011 | Control Assy, Steering Wheel Heater | Steering Wheel ([09.2014 - ] 3-SPOKE (1409- )) |
| 90080-16108 | Screw, Steering Wheel Pad Attaching | Steering Wheel ([09.2014 - ] 3-SPOKE (1409- )) |
| 90080-17234 | Nut, Steering Wheel Set | Steering Wheel ([09.2014 - ] 3-SPOKE (1409- )) |
