Search › Model › GSL30

GSL30

Toyota SIENNA · 2010 · 3,735 parts · 311 categories

3,735 items

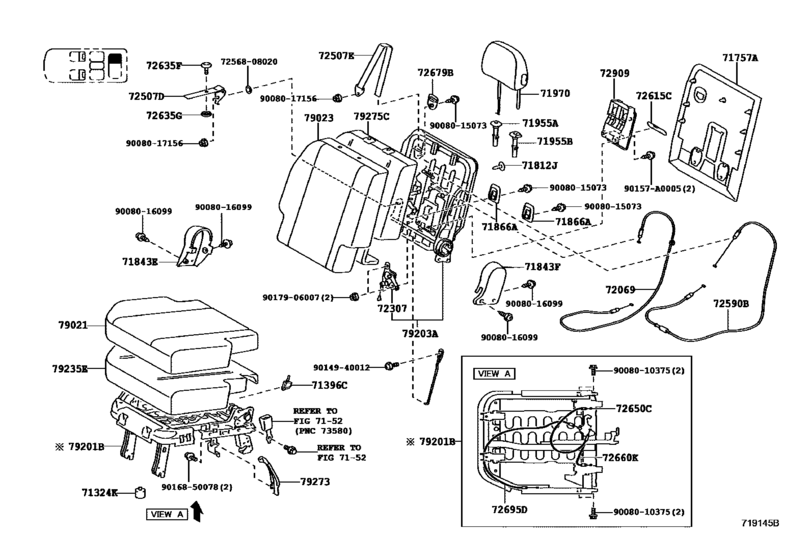

Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35) 36

#	OEM	Part name
71324	71324-08030	Cushion, Rear Seat
71396	71396-08020	Cushion, No.2 Seat Support, Rear
71757	71757-08013-C2	Cover, Rear Seat Back Board, Rh
71812	90467-05164-B2	Clip(For Front Floor Carpet)
71843	71843-08040-C0	Cover, Rear Seat Reclining, Rh (For Rh Seat)
71843	71844-08040-C0	Cover, Rear Seat Reclining, Lh (For Rh Seat)
71866	71866-08050-C0	Bezel, Rear Seat Cover, No.2
71955	71931-47010-C0	Support Assy, Rear Seat Legrest
71955	71990-60010-C0	Support Assy, Rear No.2 Seat Headrest
71970	71940-08190-C6	Headrest Assy, Rear Seat
72069	72069-08011	Cable Sub-Assy, Rear Seat Back Lock Control
72307	72307-08011	Link Sub-Assy, Reclining Control, Rh
72507	72507-08030-C0	Handle Sub-Assy, No.2 Seat Reclining Release
72507	72507-08041-C0	Handle Sub-Assy, Reclining Release, No.1
72590	72590-08020	Cable Assy, Reclining Remote Control
72615	72615-08010-C0	Cover, Rear Seat Back Lock Striker
72635	72635-13010-C0	Hook, Rear Seat Back Lock(Male)
72635	72635-13020-C0	Hook, Rear Seat Back Lock(Female)
72679	72679-08010-C0	Bezel, Rear Seat Back Lock Control
72909	72909-08011-C0	Handle 3Rd Seat
79021	79021-08281-C2	Cover Sub-Assy, No.2 Seat Cushion, Rh
79023	79023-08310-C2	Cover Sub-Assy, No.2 Seat Back, Rh
79201	79201-08050	Frame Sub-Assy, No.2 Seat Cushion, Rh
79203	79203-08042	Frame Sub-Assy, No.2 Seat Back, Rh
79235	79235-08050	Pad, No.2 Seat Cushion, Rh
79273	79273-08030-C0	Cover, No.2 Seat Hinge
79275	79275-08030	Pad, No.2 Seat Back, Rh
90157	90157-A0005	New Genuine Part
7256808020	72568-08020	Plate, Reclining Bolt Lock
9008010375	90080-10375	New Genuine Part
9008015073	90080-15073	SCREW WWASHER TAPP
9008016099	90080-16099	SCREW PAN TAPPING
9008017156	90080-17156	New Genuine Part
9014940012	90149-40012	SCREW
9016850078	90168-50078	SCREW TAPPING
9017906007	90179-06007	Nut

OEM	Part name	Category
71324-08030	Cushion, Rear Seat	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
71396-08020	Cushion, No.2 Seat Support, Rear	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
71757-08013-C2	Cover, Rear Seat Back Board, Rh	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
71843-08040-C0	Cover, Rear Seat Reclining, Rh (For Rh Seat)	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
71844-08040-C0	Cover, Rear Seat Reclining, Lh (For Rh Seat)	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
71866-08050-C0	Bezel, Rear Seat Cover, No.2	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
71931-47010-C0	Support Assy, Rear Seat Legrest	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
71940-08190-C6	Headrest Assy, Rear Seat	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
71990-60010-C0	Support Assy, Rear No.2 Seat Headrest	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
72069-08011	Cable Sub-Assy, Rear Seat Back Lock Control	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
72307-08011	Link Sub-Assy, Reclining Control, Rh	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
72507-08030-C0	Handle Sub-Assy, No.2 Seat Reclining Release	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
72507-08041-C0	Handle Sub-Assy, Reclining Release, No.1	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
72568-08020	Plate, Reclining Bolt Lock	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
72590-08020	Cable Assy, Reclining Remote Control	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
72615-08010-C0	Cover, Rear Seat Back Lock Striker	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
72635-13010-C0	Hook, Rear Seat Back Lock(Male)	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
72635-13020-C0	Hook, Rear Seat Back Lock(Female)	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
72679-08010-C0	Bezel, Rear Seat Back Lock Control	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
72909-08011-C0	Handle 3Rd Seat	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
79021-08281-C2	Cover Sub-Assy, No.2 Seat Cushion, Rh	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
79023-08310-C2	Cover Sub-Assy, No.2 Seat Back, Rh	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
79201-08050	Frame Sub-Assy, No.2 Seat Cushion, Rh	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
79203-08042	Frame Sub-Assy, No.2 Seat Back, Rh	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
79235-08050	Pad, No.2 Seat Cushion, Rh	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
79273-08030-C0	Cover, No.2 Seat Hinge	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
79275-08030	Pad, No.2 Seat Back, Rh	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
90080-10375	New Genuine Part	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
90080-15073	SCREW WWASHER TAPP	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
90080-16099	SCREW PAN TAPPING	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
90080-17156	New Genuine Part	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
90149-40012	SCREW	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
90157-A0005	New Genuine Part	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
90168-50078	SCREW TAPPING	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
90179-06007	Nut	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
90467-05164-B2	Clip(For Front Floor Carpet)	Seat & Seat Track ([09.2014 - ] REAR NO.2 SEAT(RH) (1409- )GSL30,35)
