Search › Model › GSL30

GSL30

Toyota SIENNA · 2010 · 3,735 parts · 311 categories

3,735 items

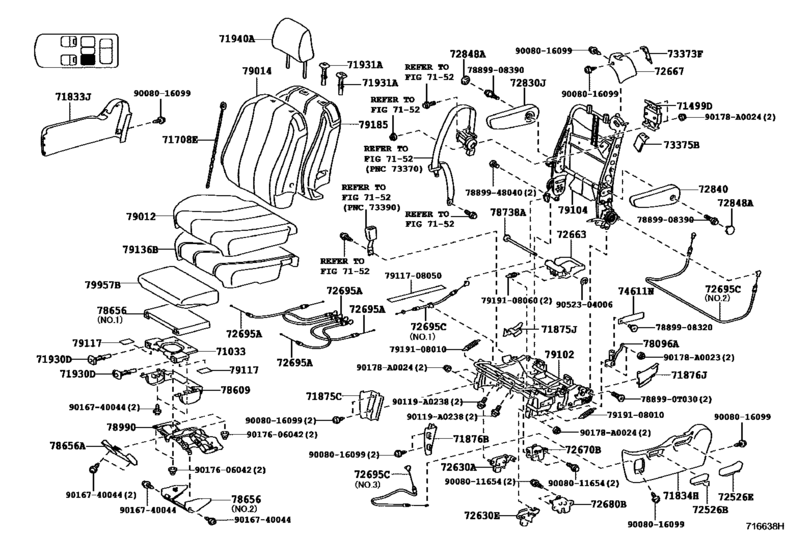

Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#) 73

#	OEM	Part name
71033	71033-28131	Leg Sub-Assy, Rear Seat Cushion
71708	71708-08060	Strap Sub-Assy, Seat Cover
71833	71834-08040-C0	Cover, Rear Seat Reclining, No.1 Rh
71834	71802-08021-C0	Cover, Rear Seat Reclining, No.1 Lh
71875	71875-08040-C0	Cover, Reclining Adjuster Inside, Rh
71875	71876-08050-C0	Cover, Reclining Adjuster Inside, Rh
71876	71876-08030-C0	Cover, Reclining Adjuster Inside, Lh
71876	71875-08050-C0	Cover, Reclining Adjuster Inside, Lh
71930	71930-52030-C0	Support Assy, Front Seat Headrest
71931	71930-44020-B2	Support, Front Seat Headrest
71931	71930-44020-C0	Support, Front Seat Headrest
71931	71931-47010-C0	Support Assy, Rear Seat Legrest
71931	71931-47010-P4	Support, Front Seat Headrest
71940	71940-08220-B2	Headrest Assy, Rear Seat
71940	71940-08220-E3	Headrest Assy, Rear Seat
72526	72526-08030-C0	Handle, Reclining Adjuster Release, No.1 Lh
72526	72526-08040-C0	Handle, Reclining Adjuster Release, Lh
72630	72093-08040	Lock Assy, Rear No.1 Seat
72630	72094-08030	Lock Assy, Rear No.1 Seat
72663	72663-08010-C0	Lever, Rear Seat Lock Control, No.1
72667	72667-08010-B1	Bezel, Rear Seat Back Lock, Upper
72667	72667-08010-C0	Bezel, Rear Seat Back Lock, Upper
72667	72667-08020-B1	Bezel, Rear Seat Back Lock, Upper
72667	72667-08020-C0	Bezel, Rear Seat Back Lock, Upper
72670	72093-08030	Lock Assy, Rear Seat Cushion, Rh
72680	72094-08020	Lock Assy, Rear Seat Cushion, Lh
72695	72695-08040	Cable, Rear Seat Lock Control
72695	72695-08060	Cable, Rear Seat Lock Control, Rh
72695	72695-08071	Cable, Rear Seat Lock Control, Lh
72695	72695-08080	Cable, Rear Seat Lock Control, Rh
72830	72830-08030-B6	Armrest Assy, Rear Seat, Rh
72830	72830-08030-E5	Armrest Assy, Rear Seat, Rh
72840	72820-08150-B6	Armrest Assy, Rear No.1 Seat, Lh
72840	72820-08150-E5	Armrest Assy, Rear No.1 Seat, Lh
72848	72848-08020-C0	Cap, Seat Armrest, No.1
73373	73373-08030-B1	Cover, Rear Seat Shoulder Belt Hole
73373	73373-08030-C0	Cover, Rear Seat Shoulder Belt Hole
73373	73373-08060-B1	Cover, Rear Seat Shoulder Belt Hole
73373	73373-08060-C0	Cover, Rear Seat Shoulder Belt Hole
73375	73373-08040	Cover, Rear Seat Shoulder Belt Hole, Lh
74611	74611-08030-C0	Strap, Assist Grip
78096	78096-08020	Lever Sub-Assy, Fold Seat Lock, Lh
78656	78656-08070-C0	Cover, Rear Seat Legrest
78656	78656-08080-C0	Cover, Rear Seat Legrest
78656	78656-08090-C0	Cover, Rear Seat Legrest
78738	78738-08010	Pin, Sub Seat Cushion Pin
78990	78990-28010	Adjuster Assy, Rear Seat Footrest
79012	71076-08040-B4	Cover Sub-Assy, No.1 Seat Cushion, Lh
79012	71076-08040-E3	Cover Sub-Assy, No.1 Seat Cushion, Lh
79014	71078-08041-B4	Cover Sub-Assy, No.1 Seat Back, Lh
79014	71078-08041-E3	Cover Sub-Assy, No.1 Seat Back, Lh
79102	71016-08011	Frame Sub-Assy, No.1 Seat Cushion, Lh
79104	71018-08051	Frame Sub-Assy, No.1 Seat Back, Lh
79117	79117-08010	Carpet, No.1 Seat Cushion
79136	71612-08020	Pad, No.1 Seat Cushion, Lh
79185	71652-08020	Pad, No.1 Seat Back, Lh
79957	79957-08020-B0	Pad, Rear Seat Leg Side
79957	79957-08020-E1	Pad, Rear Seat Leg Side
90119	90119-A0238	New Genuine Part
90178	90178-A0023	Nut, Wire Adjusting, No.2
90178	90178-A0024	New Genuine Part
788990	78899-0T030	Bolt, Front Seat
7889908320	78899-08320	Bolt, Front Seat
7889908390	78899-08390	Bolt, Front Seat
7889948040	78899-48040	Bolt, Front Seat
7911708050	79117-08050	Carpet, No.1 Seat Cushion - NO.1 SEAT CUSHION, RH
7919108010	79191-08010	Spring, No.1 Seat Cushion, No.1
7919108060	79191-08060	Spring, No.1 Seat Cushion, No.1
9008011654	90080-11654	New Genuine Part
9008016099	90080-16099	SCREW PAN TAPPING
9016740044	90167-40044	BOLT
9017606042	90176-06042	BRACKET
9052304006	90523-04006	New Genuine Part

OEM	Part name	Category
71016-08011	Frame Sub-Assy, No.1 Seat Cushion, Lh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
71018-08051	Frame Sub-Assy, No.1 Seat Back, Lh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
71033-28131	Leg Sub-Assy, Rear Seat Cushion	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
71076-08040-B4	Cover Sub-Assy, No.1 Seat Cushion, Lh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
71076-08040-E3	Cover Sub-Assy, No.1 Seat Cushion, Lh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
71078-08041-B4	Cover Sub-Assy, No.1 Seat Back, Lh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
71078-08041-E3	Cover Sub-Assy, No.1 Seat Back, Lh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
71612-08020	Pad, No.1 Seat Cushion, Lh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
71652-08020	Pad, No.1 Seat Back, Lh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
71708-08060	Strap Sub-Assy, Seat Cover	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
71802-08021-C0	Cover, Rear Seat Reclining, No.1 Lh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
71834-08040-C0	Cover, Rear Seat Reclining, No.1 Rh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
71875-08040-C0	Cover, Reclining Adjuster Inside, Rh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
71875-08050-C0	Cover, Reclining Adjuster Inside, Lh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
71876-08030-C0	Cover, Reclining Adjuster Inside, Lh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
71876-08050-C0	Cover, Reclining Adjuster Inside, Rh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
71930-44020-B2	Support, Front Seat Headrest	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
71930-44020-C0	Support, Front Seat Headrest	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
71930-52030-C0	Support Assy, Front Seat Headrest	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
71931-47010-C0	Support Assy, Rear Seat Legrest	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
71931-47010-P4	Support, Front Seat Headrest	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
71940-08220-B2	Headrest Assy, Rear Seat	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
71940-08220-E3	Headrest Assy, Rear Seat	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
72093-08030	Lock Assy, Rear Seat Cushion, Rh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
72093-08040	Lock Assy, Rear No.1 Seat	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
72094-08020	Lock Assy, Rear Seat Cushion, Lh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
72094-08030	Lock Assy, Rear No.1 Seat	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
72526-08030-C0	Handle, Reclining Adjuster Release, No.1 Lh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
72526-08040-C0	Handle, Reclining Adjuster Release, Lh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
72663-08010-C0	Lever, Rear Seat Lock Control, No.1	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
72667-08010-B1	Bezel, Rear Seat Back Lock, Upper	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
72667-08010-C0	Bezel, Rear Seat Back Lock, Upper	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
72667-08020-B1	Bezel, Rear Seat Back Lock, Upper	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
72667-08020-C0	Bezel, Rear Seat Back Lock, Upper	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
72695-08040	Cable, Rear Seat Lock Control	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
72695-08060	Cable, Rear Seat Lock Control, Rh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
72695-08071	Cable, Rear Seat Lock Control, Lh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
72695-08080	Cable, Rear Seat Lock Control, Rh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
72820-08150-B6	Armrest Assy, Rear No.1 Seat, Lh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
72820-08150-E5	Armrest Assy, Rear No.1 Seat, Lh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
72830-08030-B6	Armrest Assy, Rear Seat, Rh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
72830-08030-E5	Armrest Assy, Rear Seat, Rh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
72848-08020-C0	Cap, Seat Armrest, No.1	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
73373-08030-B1	Cover, Rear Seat Shoulder Belt Hole	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
73373-08030-C0	Cover, Rear Seat Shoulder Belt Hole	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
73373-08040	Cover, Rear Seat Shoulder Belt Hole, Lh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
73373-08060-B1	Cover, Rear Seat Shoulder Belt Hole	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
73373-08060-C0	Cover, Rear Seat Shoulder Belt Hole	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
74611-08030-C0	Strap, Assist Grip	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
78096-08020	Lever Sub-Assy, Fold Seat Lock, Lh	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
78656-08070-C0	Cover, Rear Seat Legrest	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
78656-08080-C0	Cover, Rear Seat Legrest	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
78656-08090-C0	Cover, Rear Seat Legrest	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
78738-08010	Pin, Sub Seat Cushion Pin	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
78899-08320	Bolt, Front Seat	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
78899-08390	Bolt, Front Seat	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
78899-0T030	Bolt, Front Seat	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
78899-48040	Bolt, Front Seat	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
78990-28010	Adjuster Assy, Rear Seat Footrest	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
79117-08010	Carpet, No.1 Seat Cushion	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
79117-08050	Carpet, No.1 Seat Cushion - NO.1 SEAT CUSHION, RH	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
79191-08010	Spring, No.1 Seat Cushion, No.1	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
79191-08060	Spring, No.1 Seat Cushion, No.1	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
79957-08020-B0	Pad, Rear Seat Leg Side	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
79957-08020-E1	Pad, Rear Seat Leg Side	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
90080-11654	New Genuine Part	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
90080-16099	SCREW PAN TAPPING	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
90119-A0238	New Genuine Part	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
90167-40044	BOLT	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
90176-06042	BRACKET	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
90178-A0023	Nut, Wire Adjusting, No.2	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
90178-A0024	New Genuine Part	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
90523-04006	New Genuine Part	Seat & Seat Track ([09.2011 - ] REAR NO.1 SEAT(LH) (1109- )GSL3#)
