Search › Model › GSL30

GSL30

Toyota SIENNA · 2010 · 3,735 parts · 311 categories

3,735 items

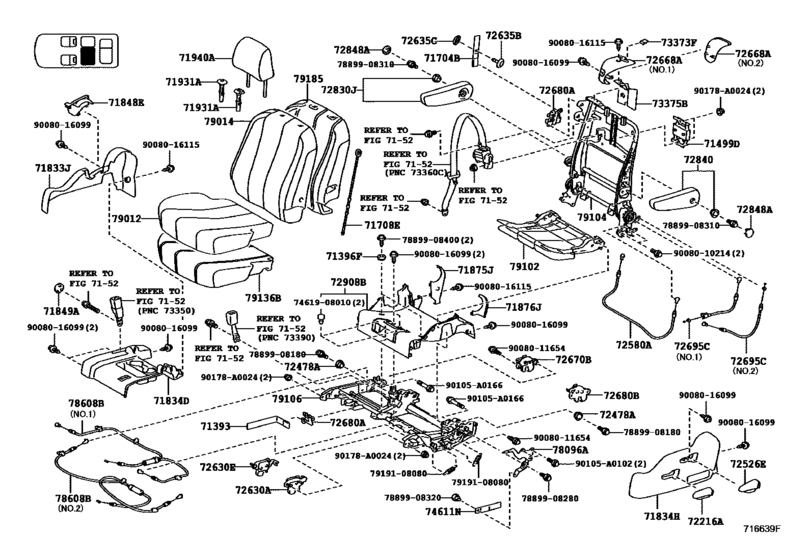

Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S) 62

#	OEM	Part name
71393	71393-08010-C0	Band, Rear Seat Cushion
71396	71396-08010	Cushion, Rear Seat Support, Rear
71704	71704-08010-C0	Band Sub-Assy, Rear Side Seat, No.2
71708	71708-08050	Strap Sub-Assy, Seat Cover
71833	71833-08050-C0	Cover, Rear Seat Reclining, No.1 Rh
71834	71833-08060-C0	Cover, Rear Seat Reclining, Lh
71834	71802-08031-C0	Cover, Rear Seat Reclining, No.1 Lh
71848	71848-08020-C0	Cap, Seat Adjuster Cover, Rh(For Lh Seat)
71849	71849-08020-C0	Cap, Seat Adjuster Cover, Lh
71875	71875-08070-C0	Cover, Reclining Adjuster Inside, Rh
71876	71876-08070-C0	Cover, Reclining Adjuster Inside, Lh
71931	71930-44020-C0	Support, Front Seat Headrest
71931	71931-47010-C0	Support Assy, Rear Seat Legrest
71940	71940-08220-C1	Headrest Assy, Rear Seat
72216	72216-28010-C0	Lever, Seat Track Handle Control, Lh
72478	72478-08010	Bush, Rear Seat Vertical Adjuster
72526	72526-28110-C0	Handle, Reclining Adjuster Release, No.1 Lh
72580	72570-08020	Cable Assy, Reclining Adjusting, Lh
72630	72093-08040	Lock Assy, Rear No.1 Seat
72630	72094-08030	Lock Assy, Rear No.1 Seat
72635	72635-13010-C0	Hook, Rear Seat Back Lock(Male)
72635	72635-13020-C0	Hook, Rear Seat Back Lock(Female)
72668	72668-08010-C0	Bezel, Rear Seat Back Lock, Lower
72668	72668-08020-C0	Bezel, Rear Seat Back Lock, Lower
72670	72093-08030	Lock Assy, Rear Seat Cushion, Rh
72670	72093-08060	Lock Assy, Rear Seat Cushion, Rh
72680	72680-08010	Striker Assy, Rear Seat Back Lock, Lh
72680	72094-08020	Lock Assy, Rear Seat Cushion, Lh
72680	72094-08050	Lock Assy, Rear Seat Cushion, Lh
72695	72695-08010	Cable, Rear Seat Lock Control, Rh
72695	72695-08020	Cable, Rear Seat Lock Control, Rh
72830	72830-08030-C0	Armrest Assy, Rear Seat, Rh
72840	72820-08150-C0	Armrest Assy, Rear No.1 Seat, Lh
72848	72848-08020-C0	Cap, Seat Armrest, No.1
72908	72908-08031-C0	Cover Sub-Assy, Rear Seat Cush Under, Lh
73373	73373-08110-C0	Cover, Rear Seat Shoulder Belt Hole
73375	73373-08080	Cover, Rear Seat Shoulder Belt Hole, Lh
74611	74611-08030-C0	Strap, Assist Grip
78096	78096-08010	Lever Sub-Assy, Fold Seat Lock, Lh
78608	78608-08050	Cable Sub-Assy, Legrest Lock Control
78608	78608-08061	Cable Sub-Assy, Legrest Lock Control
79012	79012-08120-C1	Cover Sub-Assy, No.1 Seat Cushion, Lh
79014	79014-08100-C1	Cover Sub-Assy, No.1 Seat Back, Lh
79102	79102-08010	Frame Sub-Assy, No.1 Seat Cushion, Lh
79104	79104-08022	Frame Sub-Assy, No.1 Seat Back, Lh
79106	79106-08020	Leg Sub Assy, No.1 Seat, Lh
79136	79136-08040	Pad, No.1 Seat Cushion, Lh
79185	79185-08040	Pad, No.1 Seat Back, Lh
90105	90105-A0102	New Genuine Part
90105	90105-A0166	Bolt(For Alternator)
90178	90178-A0024	New Genuine Part
7461908010	74619-08010	Cushion, Assist Grip
7889908180	78899-08180	Bolt, Front Seat
7889908280	78899-08280	Bolt, Front Seat
7889908310	78899-08310	Bolt, Front Seat
7889908320	78899-08320	Bolt, Front Seat
7889908400	78899-08400	Bolt, Front Seat
7919108080	79191-08080	Spring, No.1 Seat Cushion, No.1
9008010214	90080-10214	New Genuine Part
9008011654	90080-11654	New Genuine Part
9008016099	90080-16099	SCREW PAN TAPPING
9008016115	90080-16115	New Genuine Part

OEM	Part name	Category
71393-08010-C0	Band, Rear Seat Cushion	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
71396-08010	Cushion, Rear Seat Support, Rear	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
71704-08010-C0	Band Sub-Assy, Rear Side Seat, No.2	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
71708-08050	Strap Sub-Assy, Seat Cover	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
71802-08031-C0	Cover, Rear Seat Reclining, No.1 Lh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
71833-08050-C0	Cover, Rear Seat Reclining, No.1 Rh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
71833-08060-C0	Cover, Rear Seat Reclining, Lh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
71848-08020-C0	Cap, Seat Adjuster Cover, Rh(For Lh Seat)	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
71849-08020-C0	Cap, Seat Adjuster Cover, Lh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
71875-08070-C0	Cover, Reclining Adjuster Inside, Rh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
71876-08070-C0	Cover, Reclining Adjuster Inside, Lh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
71930-44020-C0	Support, Front Seat Headrest	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
71931-47010-C0	Support Assy, Rear Seat Legrest	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
71940-08220-C1	Headrest Assy, Rear Seat	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
72093-08030	Lock Assy, Rear Seat Cushion, Rh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
72093-08040	Lock Assy, Rear No.1 Seat	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
72093-08060	Lock Assy, Rear Seat Cushion, Rh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
72094-08020	Lock Assy, Rear Seat Cushion, Lh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
72094-08030	Lock Assy, Rear No.1 Seat	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
72094-08050	Lock Assy, Rear Seat Cushion, Lh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
72216-28010-C0	Lever, Seat Track Handle Control, Lh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
72478-08010	Bush, Rear Seat Vertical Adjuster	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
72526-28110-C0	Handle, Reclining Adjuster Release, No.1 Lh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
72570-08020	Cable Assy, Reclining Adjusting, Lh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
72635-13010-C0	Hook, Rear Seat Back Lock(Male)	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
72635-13020-C0	Hook, Rear Seat Back Lock(Female)	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
72668-08010-C0	Bezel, Rear Seat Back Lock, Lower	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
72668-08020-C0	Bezel, Rear Seat Back Lock, Lower	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
72680-08010	Striker Assy, Rear Seat Back Lock, Lh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
72695-08010	Cable, Rear Seat Lock Control, Rh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
72695-08020	Cable, Rear Seat Lock Control, Rh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
72820-08150-C0	Armrest Assy, Rear No.1 Seat, Lh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
72830-08030-C0	Armrest Assy, Rear Seat, Rh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
72848-08020-C0	Cap, Seat Armrest, No.1	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
72908-08031-C0	Cover Sub-Assy, Rear Seat Cush Under, Lh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
73373-08080	Cover, Rear Seat Shoulder Belt Hole, Lh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
73373-08110-C0	Cover, Rear Seat Shoulder Belt Hole	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
74611-08030-C0	Strap, Assist Grip	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
74619-08010	Cushion, Assist Grip	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
78096-08010	Lever Sub-Assy, Fold Seat Lock, Lh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
78608-08050	Cable Sub-Assy, Legrest Lock Control	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
78608-08061	Cable Sub-Assy, Legrest Lock Control	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
78899-08180	Bolt, Front Seat	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
78899-08280	Bolt, Front Seat	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
78899-08310	Bolt, Front Seat	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
78899-08320	Bolt, Front Seat	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
78899-08400	Bolt, Front Seat	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
79012-08120-C1	Cover Sub-Assy, No.1 Seat Cushion, Lh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
79014-08100-C1	Cover Sub-Assy, No.1 Seat Back, Lh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
79102-08010	Frame Sub-Assy, No.1 Seat Cushion, Lh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
79104-08022	Frame Sub-Assy, No.1 Seat Back, Lh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
79106-08020	Leg Sub Assy, No.1 Seat, Lh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
79136-08040	Pad, No.1 Seat Cushion, Lh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
79185-08040	Pad, No.1 Seat Back, Lh	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
79191-08080	Spring, No.1 Seat Cushion, No.1	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
90080-10214	New Genuine Part	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
90080-11654	New Genuine Part	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
90080-16099	SCREW PAN TAPPING	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
90080-16115	New Genuine Part	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
90105-A0102	New Genuine Part	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
90105-A0166	Bolt(For Alternator)	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
90178-A0024	New Genuine Part	Seat & Seat Track ([01.2010 - ] REAR NO.1 SEAT(LH) (1001- )08S)
