GSL30

Toyota SIENNA · 2010 · 3,735 parts · 311 categories

3,735 items

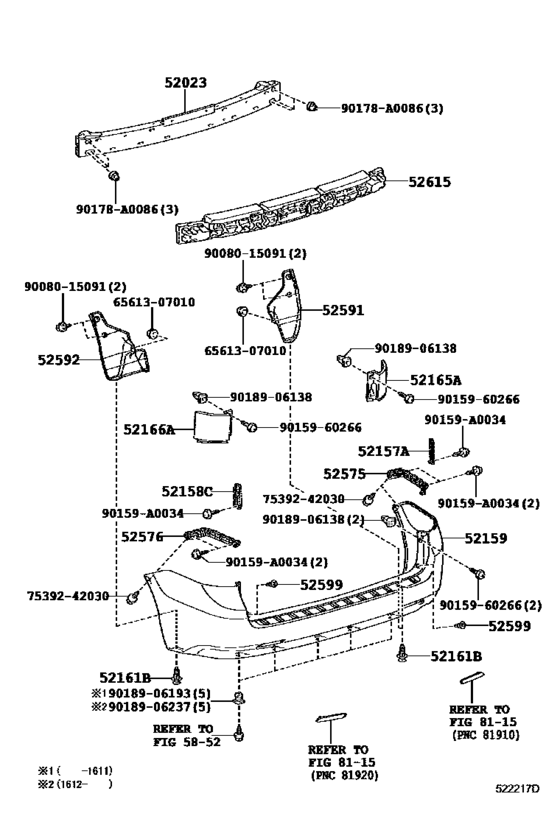

Rear Bumper & Bumper Stay ([09.2011 - ] (1109- )) 23

#	OEM	Part name
52023	52023-08020	Reinforcement Sub-Assy, Rear Bumper
52157	52157-08010	Support, Rear Bumper Side, No.2 Rh
52158	52158-08010	Support, Rear Bumper Side, No.2 Lh
52159	52159-08903	Cover, Rear Bumper
52161	52161-02020	Clip
52161	52161-16010	Clip
52165	52165-08900	Cover, Rear Bumper, Upr Rh
52166	52166-08900	Cover, Rear Bumper, Upr Lh
52575	52575-08010	Retainer, Rear Bumper Side, Rh
52576	52576-08010	Retainer, Rear Bumper Side, Lh
52591	52591-08020	Seal, Rear Bumper Side, Rh
52592	52592-08020	Seal, Rear Bumper Side, Lh
52599	52599-08010	Stopper, Rear Bumper, Upper
52615	52615-08031	Absorber, Rear Bumper Energy
90159	90159-A0034	SCREW WWASHER
90178	90178-A0086	New Genuine Part
6561307010	65613-07010	Strip, Side Gate Hinge, Inside
7539242030	75392-42030	Bolt
9008015091	90080-15091	SCREW
9015960266	90159-60266	SCREW
9018906138	90189-06138	GROMMET SCREW
9018906193	90189-06193	Grommet(For Engine Under Cover)
9018906237	90189-06237	Grommet(For Engine Under Cover)

OEM	Part name	Category
52023-08020	Reinforcement Sub-Assy, Rear Bumper	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52157-08010	Support, Rear Bumper Side, No.2 Rh	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52158-08010	Support, Rear Bumper Side, No.2 Lh	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52159-08903	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52161-02020	Clip	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52161-16010	Clip	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52165-08900	Cover, Rear Bumper, Upr Rh	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52166-08900	Cover, Rear Bumper, Upr Lh	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52575-08010	Retainer, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52576-08010	Retainer, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52591-08020	Seal, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52592-08020	Seal, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52599-08010	Stopper, Rear Bumper, Upper	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
52615-08031	Absorber, Rear Bumper Energy	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
65613-07010	Strip, Side Gate Hinge, Inside	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
75392-42030	Bolt	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
90080-15091	SCREW	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
90159-60266	SCREW	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
90159-A0034	SCREW WWASHER	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
90178-A0086	New Genuine Part	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
90189-06138	GROMMET SCREW	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
90189-06193	Grommet(For Engine Under Cover)	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
90189-06237	Grommet(For Engine Under Cover)	Rear Bumper & Bumper Stay ([09.2011 - ] (1109- ))
