GSL30

Toyota SIENNA · 2010 · 3,735 parts · 311 categories

← Back to categories

3,735 items

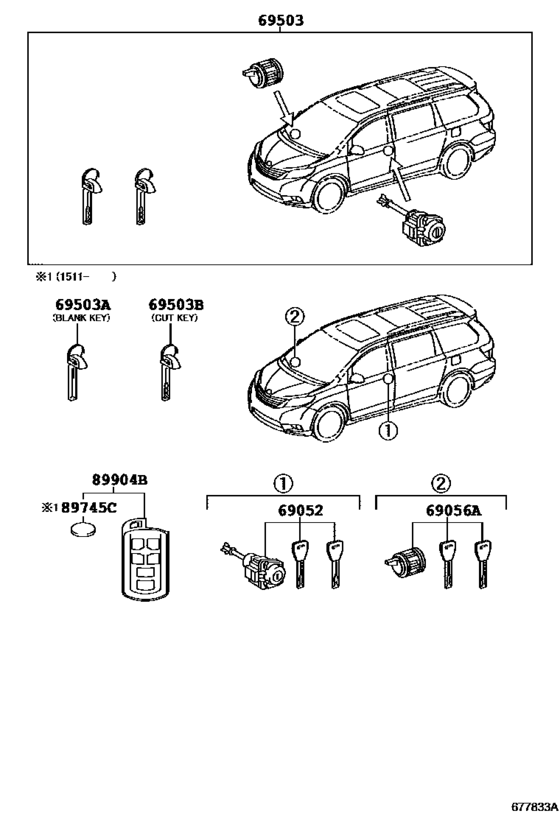

Lock Cylinder Set ([08.2013 - ] W(STARTING SYSTEM-PUSH BUTTON) (1308- )) 8

#	OEM	Part name
69052	69052-08020	Cylinder & Key Set, Door Lock, Lh
69056	69056-08020	Cylinder & Key Set, Glove Compartment Lock
69503	69005-08020	Cylinder Set, Lock
69503	69515-08020	Key, Blank
69503	69515-08010	Key, Cut
89745	89745-45010	Battery, Transmitter
89745	89745-50020	Battery, Transmitter
89904	89904-08030	Transmitter Sub-Assy, Electrical Key

OEM	Part name	Category
69005-08020	Cylinder Set, Lock	Lock Cylinder Set ([08.2013 - ] W(STARTING SYSTEM-PUSH BUTTON) (1308- ))
69052-08020	Cylinder & Key Set, Door Lock, Lh	Lock Cylinder Set ([08.2013 - ] W(STARTING SYSTEM-PUSH BUTTON) (1308- ))
69056-08020	Cylinder & Key Set, Glove Compartment Lock	Lock Cylinder Set ([08.2013 - ] W(STARTING SYSTEM-PUSH BUTTON) (1308- ))
69515-08010	Key, Cut	Lock Cylinder Set ([08.2013 - ] W(STARTING SYSTEM-PUSH BUTTON) (1308- ))
69515-08020	Key, Blank	Lock Cylinder Set ([08.2013 - ] W(STARTING SYSTEM-PUSH BUTTON) (1308- ))
89745-45010	Battery, Transmitter	Lock Cylinder Set ([08.2013 - ] W(STARTING SYSTEM-PUSH BUTTON) (1308- ))
89745-50020	Battery, Transmitter	Lock Cylinder Set ([08.2013 - ] W(STARTING SYSTEM-PUSH BUTTON) (1308- ))
89904-08030	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([08.2013 - ] W(STARTING SYSTEM-PUSH BUTTON) (1308- ))
