| 87208-08140 |
Pipe Sub-Assy, Heater Water, B |

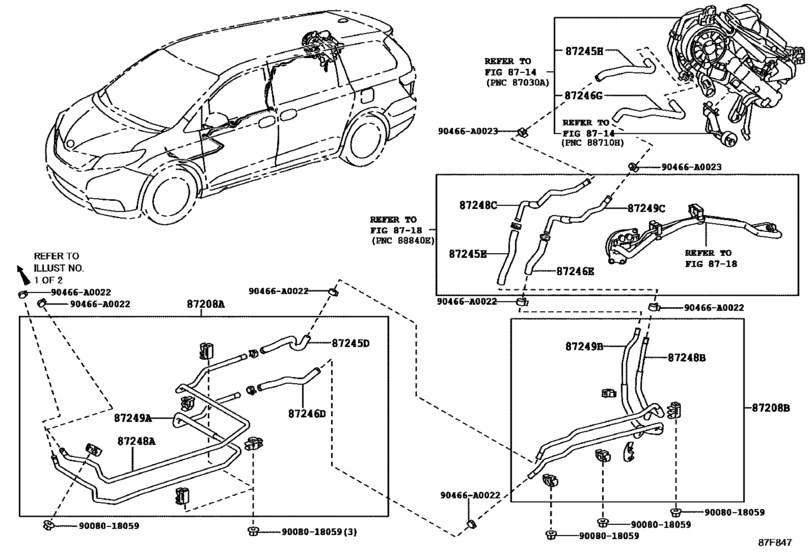

Heating & Air Conditioning - Water Piping ([08.2016 - ] REAR (1608- )) |
| 87208-08160 |
Pipe, Heater Water Inlet, B |
Heating & Air Conditioning - Water Piping ([08.2016 - ] REAR (1608- )) |
| 87208-08170 |
Pipe, Heater Water Outlet, B |
Heating & Air Conditioning - Water Piping ([08.2016 - ] REAR (1608- )) |
| 87208-08180 |
Pipe, Heater Water Inlet, C |
Heating & Air Conditioning - Water Piping ([08.2016 - ] REAR (1608- )) |
| 87208-08190 |
Pipe, Heater Water Outlet, C |
Heating & Air Conditioning - Water Piping ([08.2016 - ] REAR (1608- )) |
| 87208-08200 |
Pipe Sub-Assy, Heater Water, A |
Heating & Air Conditioning - Water Piping ([08.2016 - ] REAR (1608- )) |
| 87208-08210 |
Pipe, Heater Water Outlet, A |
Heating & Air Conditioning - Water Piping ([08.2016 - ] REAR (1608- )) |
| 87245-08340 |
Hose, Heater Water, Inlet H |
Heating & Air Conditioning - Water Piping ([08.2016 - ] REAR (1608- )) |
| 87245-08350 |
Hose, Heater Water, Outlet G |
Heating & Air Conditioning - Water Piping ([08.2016 - ] REAR (1608- )) |
| 87245-08360 |
Hose, Heater Water, Inlet E |
Heating & Air Conditioning - Water Piping ([08.2016 - ] REAR (1608- )) |
| 87245-08370 |
Hose, Heater Water, Outlet E |
Heating & Air Conditioning - Water Piping ([08.2016 - ] REAR (1608- )) |
| 87245-08390 |
Hose, Heater Water, Inlet D |
Heating & Air Conditioning - Water Piping ([08.2016 - ] REAR (1608- )) |
| 87245-08400 |
Hose, Heater Water, Outlet D |
Heating & Air Conditioning - Water Piping ([08.2016 - ] REAR (1608- )) |
| 87248-08170 |
Pipe, Heater Water Inlet, A |
Heating & Air Conditioning - Water Piping ([08.2016 - ] REAR (1608- )) |
| 90080-18059 |
New Genuine Part |
Heating & Air Conditioning - Water Piping ([08.2016 - ] REAR (1608- )) |
| 90466-A0022 |
Clip Or Clamp (For Heater Water Hose) |
Heating & Air Conditioning - Water Piping ([08.2016 - ] REAR (1608- )) |
| 90466-A0023 |
Clip(For Water By-Pass Hose Assy) |
Heating & Air Conditioning - Water Piping ([08.2016 - ] REAR (1608- )) |
