GSL30

Toyota SIENNA · 2010 · 3,735 parts · 311 categories
GSL30 ×

← Back to categories

3,735 items

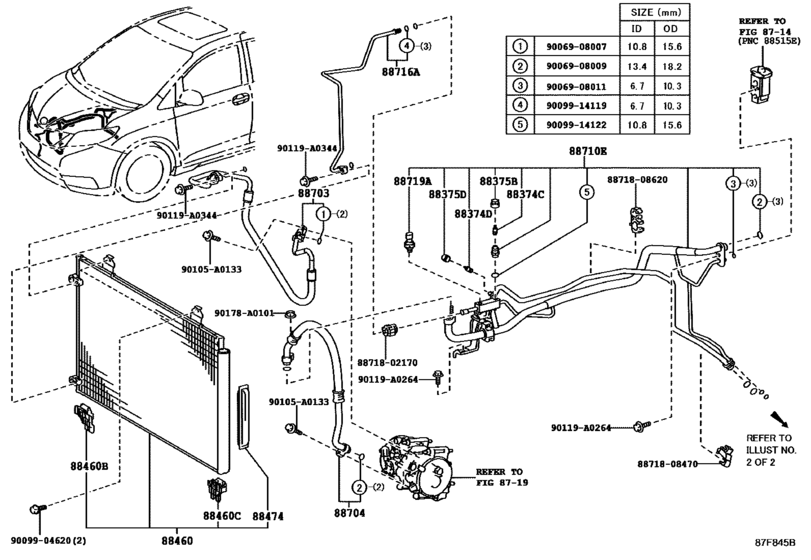

Heating & Air Conditioning - Cooler Piping ([08.2016 - ] FRONT (1608- )) 26
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-02060 Cap, Service Valve, No.1
88375 88375-02070 Cap, Service Valve, No.1
88460 88460-08030 Condenser Assy, Cooler
88460 88688-08400 Bracket, Cooler Condenser, No.1
88460 88688-08410 Bracket, Cooler Condenser, No.2
88474 88474-08030 Dryer, Cooler Unit
88703 88703-08090 Hose Sub-Assy, Discharge
88704 88704-08180 Hose Sub-Assy, Suction
88710 88710-08120 Tube & Accessory Assy, Air Conditioner
88716 88716-08330 Pipe, Cooler Refrigerant Liquid, A
88719 88719-33020 Sensor, Airconditioner Pressure
90105 90105-A0133 Bolt(For Cylinder Head Cover)
90119 90119-A0264 New Genuine Part
90119 90119-A0344 New Genuine Part
90178 90178-A0101 New Genuine Part
8871802170 88718-02170 Clamp(For Cooler Refrigerant Pipe), No.2
8871808470 88718-08470 Pipe, Cooler Refrigerant Suction, No.2
8871808620 88718-08620 Pipe, Cooler Refrigerant Suction, No.2
9006908007 90069-08007 AC ORING
9006908009 90069-08009 GASKET
9006908011 90069-08011 AC ORING
9009904620 90099-04620 New Genuine Part
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914122 90099-14122 O-RING
