Search › Model › GSL30

GSL30

Toyota SIENNA · 2010 · 3,735 parts · 311 categories
GSL30 ×

← Back to categories

3,735 items

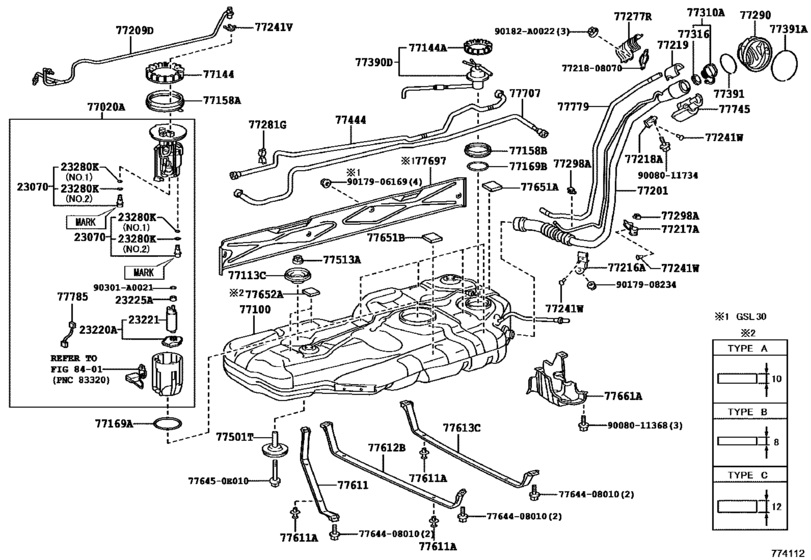

Fuel Tank & Tube ([08.2016 - ] FUEL TANK (1608- )) 59
#OEMPart name
23070 23070-31030 Valve Assy, Fuel Main
23070 23070-36010 Valve Assy, Fuel Main
23220 23220-0P240 Pump Assy, Fuel W/filter
23221 23221-31130 Pump, Fuel
23225 23225-0P010 Spacer, Fuel Pump
23280 90301-04013 Ring, O(For Fuel Pump)
23280 90301-15024 Ring, O(For Fuel Pump)
77020 77020-08070 Tube Assy, Fuel Suction W/pump & Gage
77100 77001-08100 Tank Assy, Fuel
77113 77103-08010 Plate, Fuel Tank Side
77144 77144-08010 Retainer, Fuel Pump Gauge
77144 77144-08020 Retainer, Fuel Pump Gauge
77158 77158-08010 Support, Tank Suction Tube
77158 77158-08020 Support, Tank Suction Tube - TANK SUCTION TUBE, NO.1
77169 77169-08040 Gasket, Fuel Suction Tube Set
77169 77169-08030 Gasket, Fuel Suction Tube Set, No.1
77201 77201-08060 Pipe Sub-Assy, Fuel Tank Inlet
77209 77209-08050 Tube Sub-Assy, Fuel Tank Main
77216 77216-45040 Support, Fuel Tank Filler Pipe, No.1
77217 77217-08050 Support, Fuel Tank Filler Pipe, No.2
77218 77218-08060 Support, Fuel Tank Filler Pipe, No.3
77219 77219-0E010 Cover, Fuel Tank Filler Pipe
77241 77241-06020 Clip, Tube Joint
77241 77241-35470 Clip, Tube Joint
77277 77277-08020 Protector, Fuel Tank Filler Pipe
77281 77281-08050 Clamp, Fuel Hose
77290 77291-08020 Shield Assy, Fuel Tank Filler Pipe
77298 77298-08010 Clamp, Fuel Tube, No.4
77310 77300-07040 Cap Assy, Fuel Tank
77316 77316-06090 Gasket, Fuel Tank Cap
77390 77390-08012 Valve Assy, Fuel Tank Over Fill Check
77391 77391-12020 Ring, Fuel Inlet Box
77391 77391-08010 Ring, Fuel Inlet Box
77444 77404-08050 Hose, Fuel Tank Vent
77501 77501-08010 Bracket Sub-Assy, Fuel Tank
77513 77513-0E010 Retainer, Tank Bracket
77611 77611-08011 Band, Fuel Tank
77611 77653-08020 Pin (For Fuel Tank Band)
77612 77612-08011 Band, Fuel Tank, No.2
77613 77613-08011 Band, Fuel Tank, No.3
77651 77651-08030 Cushion, Fuel Tank, No.1
77651 77651-08020 Cushion, Fuel Tank, No.1
77652 77652-45010 Cushion, Fuel Tank, No.2
77652 77652-45020 Cushion, Fuel Tank, No.2
77652 77652-45030 Cushion, Fuel Tank, No.2
77661 77661-08030 Cover, Fuel Tank Filler Hose
77697 77697-08011 Protector, Fuel Tank, No.1 - FUEL TANK HEAT, NO.1
77707 77707-08030 Tube Sub-Assy, Charcoal Canister Outlet
77745 77745-0E010 Holder, Fuel Tank Filler Pipe Cover
77779 77779-08020 Tube, Charcoal Canister Outlet
77785 77785-08030 Harness, Fuel Pump
90182 90182-A0022 NUT WWASHER
90301 90301-A0021 Seal, Fuel Pump Filter
7764408010 77644-08010 Bolt, Fuel Tank
9008011368 90080-11368 New Genuine Part
9008011734 90080-11734 New Genuine Part
9017906169 90179-06169 Nut
9017908234 90179-08234 NUT
7764500000000000 77645-0E010 Packing, Fuel Tank Bracket Upper, B
