Search › Model › GSL30

GSL30

Toyota SIENNA · 2010 · 3,735 parts · 311 categories

3,735 items

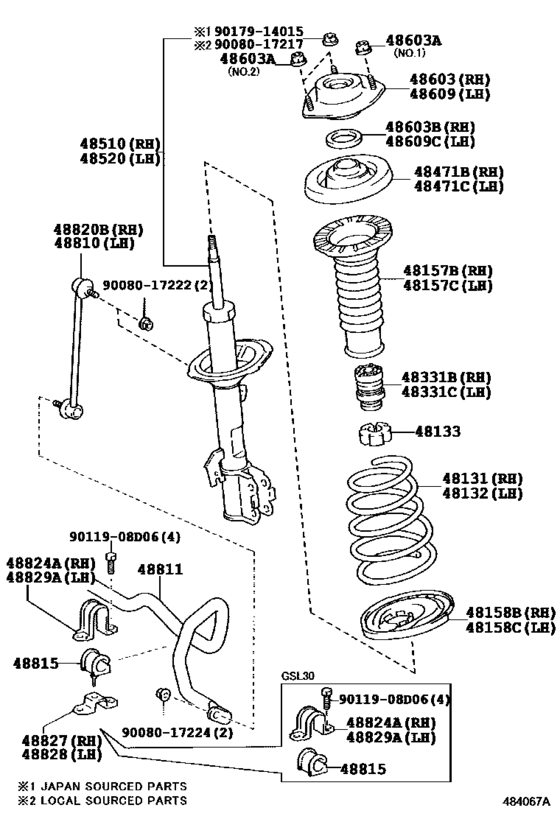

Front Spring & Shock Absorber ([09.2014 - ] (1409- )) 25

#	OEM	Part name
48131	48131-08080	Spring, Front Coil, Rh
48131	48131-08100	Spring, Front Coil, Rh
48133	48133-58010	Spacer, Front Coil Spring
48157	48157-08020	Insulator, Front Coil Spring, Upper Rh
48158	48158-08010	Insulator, Front Coil Spring, Lower Rh
48331	48331-08010	Bumper, Front Spring, Rh
48331	48331-08020	Bumper, Front Spring, Rh
48471	48471-AA011	Seat, Front Coil Spring, Upper Rh
48510	48510-8Z293	Absorber Assy, Shock, Front Rh
48510	48510-8Z295	Absorber Assy, Shock, Front Rh
48520	48520-8Z151	Absorber Assy, Shock, Front Lh
48520	48520-8Z153	Absorber Assy, Shock, Front Lh
48603	48609-08030	Support Sub-Assy, Front Suspension, Rh
48603	90080-17225	Nut(For Front Suspension Support)
48603	90178-A0060	Nut(For Front Suspension Support)
48603	90903-63014	Bearing(For Front Suspension Support)
48810	48820-08030	Link Assy, Front Stabilizer
48811	48811-08031	Bar, Stabilizer, Front
48815	48815-AE020	Bush, Front Stabilizer Bar, No.1
48824	48824-08010	Bracket, Front Stabilizer, No.1 Rh
9011908	90119-08D06	BOLT W-WASHER
9008017217	90080-17217	Nut(For Front Support To Front Shock Absorber Rh)
9008017222	90080-17222	Nut(For Front Stabilizer Link)
9008017224	90080-17224	Nut(For Front Stabilizer Link)
9017914015	90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)

OEM	Part name	Category
48131-08080	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([09.2014 - ] (1409- ))
48131-08100	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([09.2014 - ] (1409- ))
48133-58010	Spacer, Front Coil Spring	Front Spring & Shock Absorber ([09.2014 - ] (1409- ))
48157-08020	Insulator, Front Coil Spring, Upper Rh	Front Spring & Shock Absorber ([09.2014 - ] (1409- ))
48158-08010	Insulator, Front Coil Spring, Lower Rh	Front Spring & Shock Absorber ([09.2014 - ] (1409- ))
48331-08010	Bumper, Front Spring, Rh	Front Spring & Shock Absorber ([09.2014 - ] (1409- ))
48331-08020	Bumper, Front Spring, Rh	Front Spring & Shock Absorber ([09.2014 - ] (1409- ))
48471-AA011	Seat, Front Coil Spring, Upper Rh	Front Spring & Shock Absorber ([09.2014 - ] (1409- ))
48510-8Z293	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([09.2014 - ] (1409- ))
48510-8Z295	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([09.2014 - ] (1409- ))
48520-8Z151	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([09.2014 - ] (1409- ))
48520-8Z153	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([09.2014 - ] (1409- ))
48609-08030	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([09.2014 - ] (1409- ))
48811-08031	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([09.2014 - ] (1409- ))
48815-AE020	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([09.2014 - ] (1409- ))
48820-08030	Link Assy, Front Stabilizer	Front Spring & Shock Absorber ([09.2014 - ] (1409- ))
48824-08010	Bracket, Front Stabilizer, No.1 Rh	Front Spring & Shock Absorber ([09.2014 - ] (1409- ))
90080-17217	Nut(For Front Support To Front Shock Absorber Rh)	Front Spring & Shock Absorber ([09.2014 - ] (1409- ))
90080-17222	Nut(For Front Stabilizer Link)	Front Spring & Shock Absorber ([09.2014 - ] (1409- ))
90080-17224	Nut(For Front Stabilizer Link)	Front Spring & Shock Absorber ([09.2014 - ] (1409- ))
90080-17225	Nut(For Front Suspension Support)	Front Spring & Shock Absorber ([09.2014 - ] (1409- ))
90119-08D06	BOLT W-WASHER	Front Spring & Shock Absorber ([09.2014 - ] (1409- ))
90178-A0060	Nut(For Front Suspension Support)	Front Spring & Shock Absorber ([09.2014 - ] (1409- ))
90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)	Front Spring & Shock Absorber ([09.2014 - ] (1409- ))
90903-63014	Bearing(For Front Suspension Support)	Front Spring & Shock Absorber ([09.2014 - ] (1409- ))

Source: Public OEM parts-catalog data
Variants: 2 / 14
Category: 311
Collected: 2026-08-04
