Search › Model › GSL30
GSL30

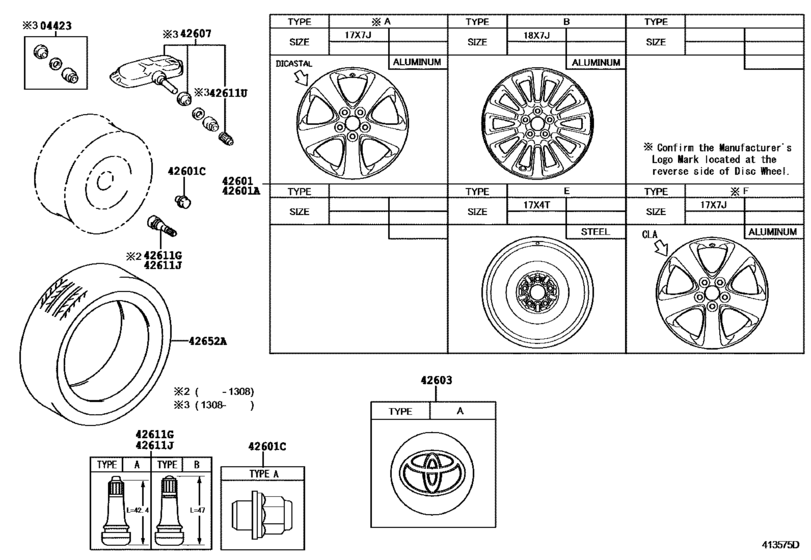

Disc Wheel & Wheel Cap ([07.2011 - ] (1107- )) 9
| # | OEM | Part name |
|---|---|---|
| 4423 | 04423-0C170 | Fitting Kit, Tire Pressure Monitor Or Balancer Valve |
| 42601 | 42611-08050 | Wheel, Disc |
| 42601 | 42611-08111 | Wheel, Disc (For Spare) |
| 42601 | 90084-94001 | Nut, Hub (For Axle) |
| 42601 | 90942-A1009 | Nut, Hub (For Axle) |
| 42603 | 42603-08030 | Ornament Sub-Assy, Wheel Hub |
| 42607 | 42607-08021 | Valve Sub-Assy, Tire Pressure Monitor |
| 42611 | 90080-45006 | Valve (For Tubeless Tire) |
| 42611 | 90942-A5004 | Valve (For Tubeless Tire) - TIRE VALVE |
| OEM | Part name | Category |
|---|---|---|
| 04423-0C170 | Fitting Kit, Tire Pressure Monitor Or Balancer Valve | Disc Wheel & Wheel Cap ([07.2011 - ] (1107- )) |
| 42603-08030 | Ornament Sub-Assy, Wheel Hub | Disc Wheel & Wheel Cap ([07.2011 - ] (1107- )) |
| 42607-08021 | Valve Sub-Assy, Tire Pressure Monitor | Disc Wheel & Wheel Cap ([07.2011 - ] (1107- )) |
| 42611-08050 | Wheel, Disc | Disc Wheel & Wheel Cap ([07.2011 - ] (1107- )) |
| 42611-08111 | Wheel, Disc (For Spare) | Disc Wheel & Wheel Cap ([07.2011 - ] (1107- )) |
| 90080-45006 | Valve (For Tubeless Tire) | Disc Wheel & Wheel Cap ([07.2011 - ] (1107- )) |
| 90084-94001 | Nut, Hub (For Axle) | Disc Wheel & Wheel Cap ([07.2011 - ] (1107- )) |
| 90942-A1009 | Nut, Hub (For Axle) | Disc Wheel & Wheel Cap ([07.2011 - ] (1107- )) |
| 90942-A5004 | Valve (For Tubeless Tire) - TIRE VALVE | Disc Wheel & Wheel Cap ([07.2011 - ] (1107- )) |
