Search › Model › GSL30

GSL30

Toyota SIENNA · 2010 · 3,735 parts · 311 categories

3,735 items

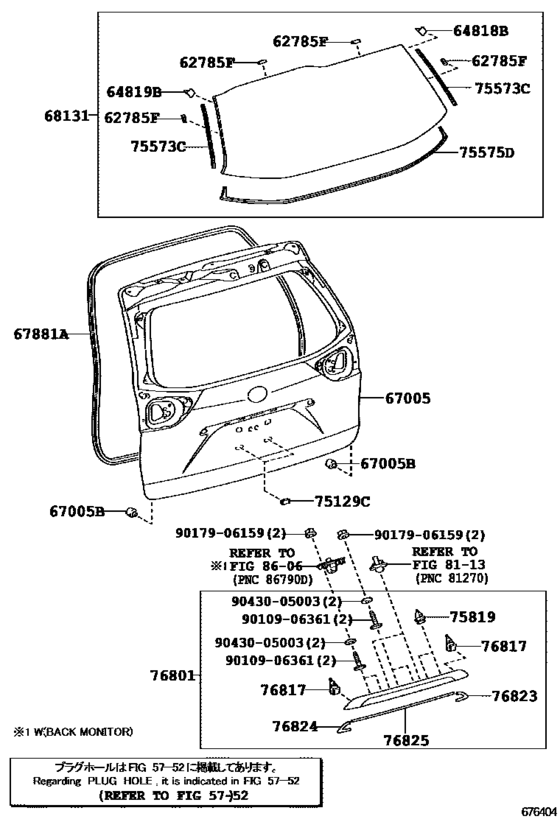

Back Door Panel & Glass ([09.2011 - ] DOOR PANEL (1109- )) 21

#	OEM	Part name
62785	62785-60030	Spacer, Quarter Window Glass
64818	64818-08020	Spacer, Back Door Glass, No.1
64819	64819-08020	Spacer, Back Window Glass, No.2
67005	67005-08100	Panel Sub-Assy, Back Door
67005	90541-A0001	Cushion, Hood Bumper
67881	67881-08030	Weatherstrip, Back Door
68131	68105-08050	Glass, Back Door
75129	75129-AC010	Cushion, Rear Licence Plate
75129	75129-13020	Cushion, Rr Licence Plate
75573	75573-08020	Moulding, Back Window, Outside
75575	75575-08010	Moulding, Back Window, Lower
75819	75819-33010	Clip, Luggage Compartment Door Moulding
76801	76801-08040	Garnish Sub-Assy, Back Door, Outside
76817	76817-07010	Clip, Luggage Compartment Door Moulding - BACK DOOR OUTSIDE GARNISH
76823	76821-08010	Protector, Back Door Garnish Moulding, Rh
76824	76822-08010	Protector, Back Door Garnish Moulding, Lh
76825	76825-08010	Protector, Back Door Outside Garnish
9010906361	90109-06361	BOLT
9017906159	90179-06159	Nut, Rear Wiper Link Pivot, No.1
9017906159	90080-17210	Nut, Rear Wiper Link Pivot, No.1
9043005003	90430-05003	GASKET

OEM	Part name	Category
62785-60030	Spacer, Quarter Window Glass	Back Door Panel & Glass ([09.2011 - ] DOOR PANEL (1109- ))
64818-08020	Spacer, Back Door Glass, No.1	Back Door Panel & Glass ([09.2011 - ] DOOR PANEL (1109- ))
64819-08020	Spacer, Back Window Glass, No.2	Back Door Panel & Glass ([09.2011 - ] DOOR PANEL (1109- ))
67005-08100	Panel Sub-Assy, Back Door	Back Door Panel & Glass ([09.2011 - ] DOOR PANEL (1109- ))
67881-08030	Weatherstrip, Back Door	Back Door Panel & Glass ([09.2011 - ] DOOR PANEL (1109- ))
68105-08050	Glass, Back Door	Back Door Panel & Glass ([09.2011 - ] DOOR PANEL (1109- ))
75129-13020	Cushion, Rr Licence Plate	Back Door Panel & Glass ([09.2011 - ] DOOR PANEL (1109- ))
75129-AC010	Cushion, Rear Licence Plate	Back Door Panel & Glass ([09.2011 - ] DOOR PANEL (1109- ))
75573-08020	Moulding, Back Window, Outside	Back Door Panel & Glass ([09.2011 - ] DOOR PANEL (1109- ))
75575-08010	Moulding, Back Window, Lower	Back Door Panel & Glass ([09.2011 - ] DOOR PANEL (1109- ))
75819-33010	Clip, Luggage Compartment Door Moulding	Back Door Panel & Glass ([09.2011 - ] DOOR PANEL (1109- ))
76801-08040	Garnish Sub-Assy, Back Door, Outside	Back Door Panel & Glass ([09.2011 - ] DOOR PANEL (1109- ))
76817-07010	Clip, Luggage Compartment Door Moulding - BACK DOOR OUTSIDE GARNISH	Back Door Panel & Glass ([09.2011 - ] DOOR PANEL (1109- ))
76821-08010	Protector, Back Door Garnish Moulding, Rh	Back Door Panel & Glass ([09.2011 - ] DOOR PANEL (1109- ))
76822-08010	Protector, Back Door Garnish Moulding, Lh	Back Door Panel & Glass ([09.2011 - ] DOOR PANEL (1109- ))
76825-08010	Protector, Back Door Outside Garnish	Back Door Panel & Glass ([09.2011 - ] DOOR PANEL (1109- ))
90080-17210	Nut, Rear Wiper Link Pivot, No.1	Back Door Panel & Glass ([09.2011 - ] DOOR PANEL (1109- ))
90109-06361	BOLT	Back Door Panel & Glass ([09.2011 - ] DOOR PANEL (1109- ))
90179-06159	Nut, Rear Wiper Link Pivot, No.1	Back Door Panel & Glass ([09.2011 - ] DOOR PANEL (1109- ))
90430-05003	GASKET	Back Door Panel & Glass ([09.2011 - ] DOOR PANEL (1109- ))
90541-A0001	Cushion, Hood Bumper	Back Door Panel & Glass ([09.2011 - ] DOOR PANEL (1109- ))
