GSL25

Toyota SIENNA · 2006 · 5,179 parts · 202 categories

5,179 items

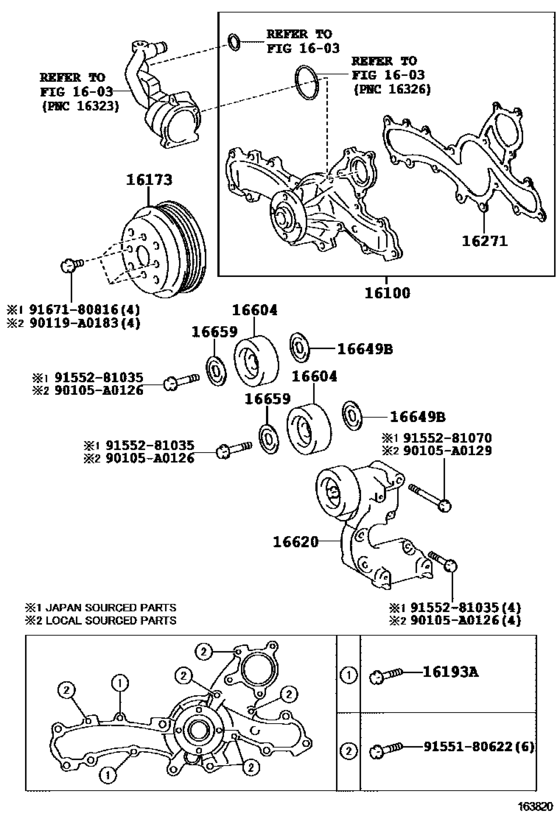

Water Pump ([01.2009 - ] (0901- )) 20

#	OEM	Part name
16100	16100-09440	Pump Assy, Engine Water
16100	16100-09442	Pump Assy, Engine Water
16100	16100-09441	Pump Assy, Engine Water
16173	16173-31010	Pulley, Water Pump
16193	16193-31080	Bolt(For Water Pump Cover)
16271	16271-0P010	Gasket, Water Pump
16271	16271-31030	Gasket, Water Pump
16604	16604-31010	Pulley Sub-Assy, Idler, No.2
16604	16604-31020	Pulley Sub-Assy, Idler, No.2
16620	16620-31040	Tensioner Assy, V-Ribbed Belt
16649	16649-31020	Plate, Idler Pulley Cover
16659	16659-31011	Plate, Idler Pulley Cover, No.2
16659	16659-AD010	Plate, Idler Pulley Cover, No.2
90105	90105-A0126	BOLT FLANGE
90105	90105-A0129	Bolt(For Alternator)
90119	90119-A0183	Bolt (For Transmission Control Cable Bracket)
9155180622	91551-80622	BOLT FLANGE
9155281035	91552-81035	BOLT
9155281070	91552-81070	Bolt(For Alternator)
9167180816	91671-80816	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
16100-09440	Pump Assy, Engine Water	Water Pump ([01.2009 - ] (0901- ))
16100-09441	Pump Assy, Engine Water	Water Pump ([01.2009 - ] (0901- ))
16100-09442	Pump Assy, Engine Water	Water Pump ([01.2009 - ] (0901- ))
16173-31010	Pulley, Water Pump	Water Pump ([01.2009 - ] (0901- ))
16193-31080	Bolt(For Water Pump Cover)	Water Pump ([01.2009 - ] (0901- ))
16271-0P010	Gasket, Water Pump	Water Pump ([01.2009 - ] (0901- ))
16271-31030	Gasket, Water Pump	Water Pump ([01.2009 - ] (0901- ))
16604-31010	Pulley Sub-Assy, Idler, No.2	Water Pump ([01.2009 - ] (0901- ))
16604-31020	Pulley Sub-Assy, Idler, No.2	Water Pump ([01.2009 - ] (0901- ))
16620-31040	Tensioner Assy, V-Ribbed Belt	Water Pump ([01.2009 - ] (0901- ))
16649-31020	Plate, Idler Pulley Cover	Water Pump ([01.2009 - ] (0901- ))
16659-31011	Plate, Idler Pulley Cover, No.2	Water Pump ([01.2009 - ] (0901- ))
16659-AD010	Plate, Idler Pulley Cover, No.2	Water Pump ([01.2009 - ] (0901- ))
90105-A0126	BOLT FLANGE	Water Pump ([01.2009 - ] (0901- ))
90105-A0129	Bolt(For Alternator)	Water Pump ([01.2009 - ] (0901- ))
90119-A0183	Bolt (For Transmission Control Cable Bracket)	Water Pump ([01.2009 - ] (0901- ))
91551-80622	BOLT FLANGE	Water Pump ([01.2009 - ] (0901- ))
91552-81035	BOLT	Water Pump ([01.2009 - ] (0901- ))
91552-81070	Bolt(For Alternator)	Water Pump ([01.2009 - ] (0901- ))
91671-80816	Bolt (For Transmission Control Cable Bracket)	Water Pump ([01.2009 - ] (0901- ))
