Search › Model › GSK50

GSK50

Toyota TUNDRA · 2006 · 4,377 parts · 227 categories

4,377 items

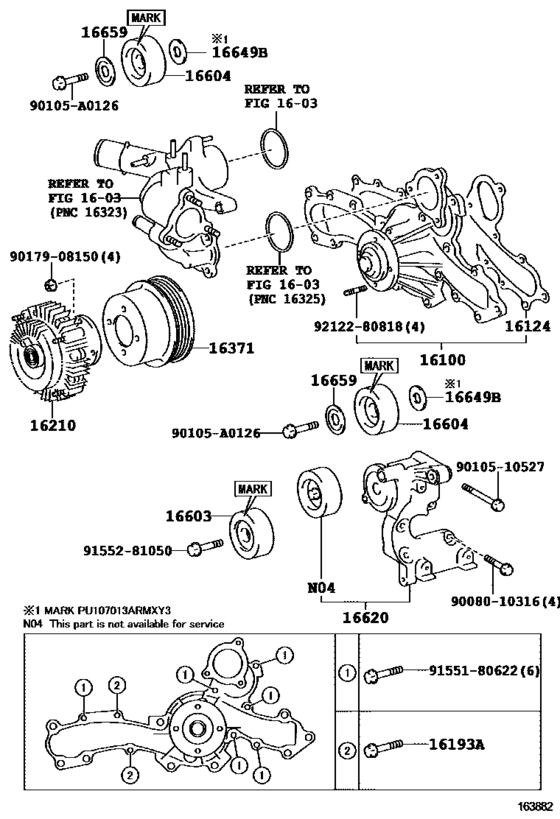

Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE) 29

#	OEM	Part name
16100	16100-09470	Pump Assy, Engine Water
16100	16100-09471	Pump Assy, Engine Water
16100	16100-39545	Pump Assy, Engine Water
16124	16124-0P030	Gasket, Water Pump Cover
16193	16193-31080	Bolt(For Water Pump Cover)
16210	16210-0P010	Coupling Assy, Fluid
16210	16210-31040	Coupling Assy, Fluid
16371	16371-0P010	Pulley, Fan
16371	16371-31040	Pulley, Fan
16603	16603-0P020	Pulley Sub-Assy, Idler, No.1
16603	16603-0P030	Pulley Sub-Assy, Idler, No.1
16603	16603-31050	Pulley Sub-Assy, Idler, No.1
16604	16604-0P010	Pulley Sub-Assy, Idler, No.2
16604	16604-0P011	Pulley Sub-Assy, Idler, No.2
16604	16649-31020	Plate, Idler Pulley Cover
16604	16604-31020	Pulley Sub-Assy, Idler, No.2
16604	16604-31030	Pulley Sub-Assy, Idler, No.2
16620	16620-31012	Tensioner Assy, V-Ribbed Belt
16620	16620-31013	Tensioner Assy, V-Ribbed Belt
16620	16620-31051	Tensioner Assy, V-Ribbed Belt
16659	16659-31011	Plate, Idler Pulley Cover, No.2
16659	16659-AD010	Plate, Idler Pulley Cover, No.2
90105	90105-A0126	BOLT FLANGE
9008010316	90080-10316	New Genuine Part
9010510527	90105-10527	BOLTSHOULDER
9017908150	90179-08150	NUT
9155180622	91551-80622	BOLT FLANGE
9155281050	91552-81050	Bolt, No.2(For Alternator)
9212280818	92122-80818	Bolt, Stud(For Water Pump Pulley Seat)

OEM	Part name	Category
16100-09470	Pump Assy, Engine Water	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
16100-09471	Pump Assy, Engine Water	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
16100-39545	Pump Assy, Engine Water	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
16124-0P030	Gasket, Water Pump Cover	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
16193-31080	Bolt(For Water Pump Cover)	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
16210-0P010	Coupling Assy, Fluid	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
16210-31040	Coupling Assy, Fluid	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
16371-0P010	Pulley, Fan	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
16371-31040	Pulley, Fan	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
16603-0P020	Pulley Sub-Assy, Idler, No.1	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
16603-0P030	Pulley Sub-Assy, Idler, No.1	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
16603-31050	Pulley Sub-Assy, Idler, No.1	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
16604-0P010	Pulley Sub-Assy, Idler, No.2	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
16604-0P011	Pulley Sub-Assy, Idler, No.2	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
16604-31020	Pulley Sub-Assy, Idler, No.2	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
16604-31030	Pulley Sub-Assy, Idler, No.2	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
16620-31012	Tensioner Assy, V-Ribbed Belt	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
16620-31013	Tensioner Assy, V-Ribbed Belt	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
16620-31051	Tensioner Assy, V-Ribbed Belt	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
16649-31020	Plate, Idler Pulley Cover	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
16659-31011	Plate, Idler Pulley Cover, No.2	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
16659-AD010	Plate, Idler Pulley Cover, No.2	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
90080-10316	New Genuine Part	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
90105-10527	BOLTSHOULDER	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
90105-A0126	BOLT FLANGE	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
90179-08150	NUT	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
91551-80622	BOLT FLANGE	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
91552-81050	Bolt, No.2(For Alternator)	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
92122-80818	Bolt, Stud(For Water Pump Pulley Seat)	Water Pump ([11.2006 - 01.2009] (0611-0901)1GRFE)
