Search › Model › GSK30

GSK30

Toyota TUNDRA · 2004 · 3,546 parts · 191 categories

3,546 items

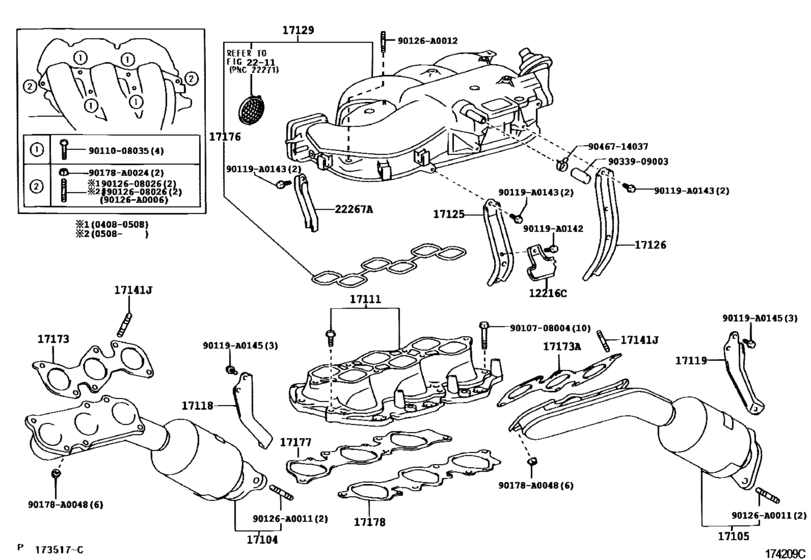

Manifold ([08.2004 - ] (0408- )1GRFE) 36

#	OEM	Part name
12216	12216-0P010	Plate, Oil Baffle
17104	17140-0P010	Manifold Sub-Assy, Exhaust, Rh
17104	17140-0P260	Manifold Sub-Assy, Exhaust, Rh
17105	17150-0P020	Manifold Sub-Assy, Exhaust, Lh
17105	17150-0P260	Manifold Sub-Assy, Exhaust, Lh
17111	17101-0P010	Manifold, Intake
17111	17101-0P011	Manifold, Intake
17111	17101-31010	Manifold, Intake
17111	17101-31011	Manifold, Intake
17118	17118-0P010	Stay, Manifold
17119	17119-0P020	Stay, Manifold, No.2
17125	17125-0P010	Stay, Surge Tank, No.1
17126	17126-0P010	Stay, Surge Tank, No.2
17129	17109-0P010	Tank, Intake Air Surge
17129	17109-0P011	Tank, Intake Air Surge
17141	90126-08052	Bolt, Stud(For Oil Pan)
17173	17173-0P010	Gasket, Exhaust Manifold To Head
17176	17176-0P010	Gasket, Air Surge Tank To Intake Manifold
17177	17177-31010	Gasket, Intake Manifold To Head, No.1
17177	17177-AD010	Gasket, Intake Manifold To Head, No.1
17178	17178-31010	Gasket, Intake Manifold To Head, No.2
17178	17178-AD010	Gasket, Intake Manifold To Head, No.2
22267	22267-0P010	Bracket, Throttle Body
90119	90119-A0142	New Genuine Part
90119	90119-A0143	New Genuine Part
90119	90119-A0145	New Genuine Part
90126	90126-A0006	Bolt, Stud(For Intake Manifold To Cylinder Head)
90126	90126-A0011	Bolt, Stud(For Exhaust Manifold, Rh)
90126	90126-A0012	New Genuine Part
90178	90178-A0024	New Genuine Part
90178	90178-A0048	New Genuine Part
9010708004	90107-08004	New Genuine Part
9011008035	90110-08035	New Genuine Part
9012608026	90126-08026	Bolt, Stud(For Intake Manifold To Cylinder Head)
9033909003	90339-09003	Plug(For Vacuum Hose Union)
9046714037	90467-14037	Clip Or Clamp(For Ventilation Hose)

OEM	Part name	Category
12216-0P010	Plate, Oil Baffle	Manifold ([08.2004 - ] (0408- )1GRFE)
17101-0P010	Manifold, Intake	Manifold ([08.2004 - ] (0408- )1GRFE)
17101-0P011	Manifold, Intake	Manifold ([08.2004 - ] (0408- )1GRFE)
17101-31010	Manifold, Intake	Manifold ([08.2004 - ] (0408- )1GRFE)
17101-31011	Manifold, Intake	Manifold ([08.2004 - ] (0408- )1GRFE)
17109-0P010	Tank, Intake Air Surge	Manifold ([08.2004 - ] (0408- )1GRFE)
17109-0P011	Tank, Intake Air Surge	Manifold ([08.2004 - ] (0408- )1GRFE)
17118-0P010	Stay, Manifold	Manifold ([08.2004 - ] (0408- )1GRFE)
17119-0P020	Stay, Manifold, No.2	Manifold ([08.2004 - ] (0408- )1GRFE)
17125-0P010	Stay, Surge Tank, No.1	Manifold ([08.2004 - ] (0408- )1GRFE)
17126-0P010	Stay, Surge Tank, No.2	Manifold ([08.2004 - ] (0408- )1GRFE)
17140-0P010	Manifold Sub-Assy, Exhaust, Rh	Manifold ([08.2004 - ] (0408- )1GRFE)
17140-0P260	Manifold Sub-Assy, Exhaust, Rh	Manifold ([08.2004 - ] (0408- )1GRFE)
17150-0P020	Manifold Sub-Assy, Exhaust, Lh	Manifold ([08.2004 - ] (0408- )1GRFE)
17150-0P260	Manifold Sub-Assy, Exhaust, Lh	Manifold ([08.2004 - ] (0408- )1GRFE)
17173-0P010	Gasket, Exhaust Manifold To Head	Manifold ([08.2004 - ] (0408- )1GRFE)
17176-0P010	Gasket, Air Surge Tank To Intake Manifold	Manifold ([08.2004 - ] (0408- )1GRFE)
17177-31010	Gasket, Intake Manifold To Head, No.1	Manifold ([08.2004 - ] (0408- )1GRFE)
17177-AD010	Gasket, Intake Manifold To Head, No.1	Manifold ([08.2004 - ] (0408- )1GRFE)
17178-31010	Gasket, Intake Manifold To Head, No.2	Manifold ([08.2004 - ] (0408- )1GRFE)
17178-AD010	Gasket, Intake Manifold To Head, No.2	Manifold ([08.2004 - ] (0408- )1GRFE)
22267-0P010	Bracket, Throttle Body	Manifold ([08.2004 - ] (0408- )1GRFE)
90107-08004	New Genuine Part	Manifold ([08.2004 - ] (0408- )1GRFE)
90110-08035	New Genuine Part	Manifold ([08.2004 - ] (0408- )1GRFE)
90119-A0142	New Genuine Part	Manifold ([08.2004 - ] (0408- )1GRFE)
90119-A0143	New Genuine Part	Manifold ([08.2004 - ] (0408- )1GRFE)
90119-A0145	New Genuine Part	Manifold ([08.2004 - ] (0408- )1GRFE)
90126-08026	Bolt, Stud(For Intake Manifold To Cylinder Head)	Manifold ([08.2004 - ] (0408- )1GRFE)
90126-08052	Bolt, Stud(For Oil Pan)	Manifold ([08.2004 - ] (0408- )1GRFE)
90126-A0006	Bolt, Stud(For Intake Manifold To Cylinder Head)	Manifold ([08.2004 - ] (0408- )1GRFE)
90126-A0011	Bolt, Stud(For Exhaust Manifold, Rh)	Manifold ([08.2004 - ] (0408- )1GRFE)
90126-A0012	New Genuine Part	Manifold ([08.2004 - ] (0408- )1GRFE)
90178-A0024	New Genuine Part	Manifold ([08.2004 - ] (0408- )1GRFE)
90178-A0048	New Genuine Part	Manifold ([08.2004 - ] (0408- )1GRFE)
90339-09003	Plug(For Vacuum Hose Union)	Manifold ([08.2004 - ] (0408- )1GRFE)
90467-14037	Clip Or Clamp(For Ventilation Hose)	Manifold ([08.2004 - ] (0408- )1GRFE)

Source: Public OEM parts-catalog data
Variants: 2 / 5
Category: 191
Collected: 2026-08-04
