Search › Model › GSK30

GSK30

Toyota TUNDRA · 2004 · 3,546 parts · 191 categories

3,546 items

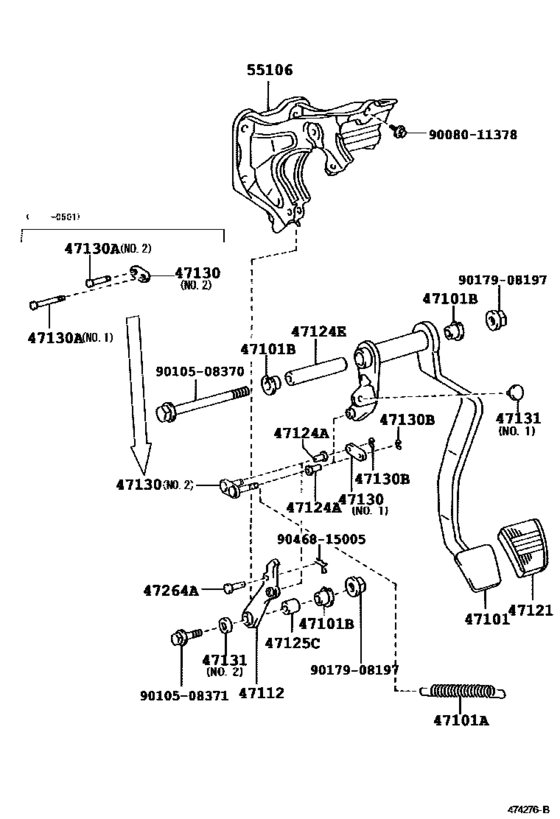

Brake Pedal & Bracket ([08.2004 - ] (0408- )6F) 25

#	OEM	Part name
47101	47101-34051	Pedal Sub-Assy, Brake
47101	47101-34120	Pedal Sub-Assy, Brake
47101	90905-07023	Spring(For Brake Pedal Return)
47101	90386-14015	Bush(For Clutch Pedal)
47112	47112-34010	Lever, Brake Pedal
47121	31321-14020	Pad, Clutch Pedal
47124	47144-34010	Collar(For Brake Pedal Shaft)
47124	90387-08156	Collar, Brake Pedal Shaft, No.2
47125	90387-08157	Collar(For Brake Pedal Bracket)
47130	47130-60010	Link Assy, Brake Pedal
47130	47130-60011	Link Assy, Brake Pedal
47130	90249-06171	Pin, Brake Pedal Link
47130	90249-06172	Pin, Brake Pedal Link
47130	96160-00400	Ring, E(For Release Arm)
47131	47131-34010	Cushion(For Stop Lamp Switch)
47131	90541-06036	Cushion, No.1(For Clutch Pedal)
47264	90240-06023	Pin(For Push Rod)
47264	90240-10037	Pin(For Push Rod)
55106	55106-34020	Support Sub-Assy, Brake Pedal
55106	55106-34060	Support Sub-Assy, Brake Pedal
9008011378	90080-11378	New Genuine Part
9010508370	90105-08370	New Genuine Part
9010508371	90105-08371	New Genuine Part
9017908197	90179-08197	Nut, No.1 (For Propeller Shaft & Differential Setting)
9046815005	90468-15005	CLIP

OEM	Part name	Category
31321-14020	Pad, Clutch Pedal	Brake Pedal & Bracket ([08.2004 - ] (0408- )6F)
47101-34051	Pedal Sub-Assy, Brake	Brake Pedal & Bracket ([08.2004 - ] (0408- )6F)
47101-34120	Pedal Sub-Assy, Brake	Brake Pedal & Bracket ([08.2004 - ] (0408- )6F)
47112-34010	Lever, Brake Pedal	Brake Pedal & Bracket ([08.2004 - ] (0408- )6F)
47130-60010	Link Assy, Brake Pedal	Brake Pedal & Bracket ([08.2004 - ] (0408- )6F)
47130-60011	Link Assy, Brake Pedal	Brake Pedal & Bracket ([08.2004 - ] (0408- )6F)
47131-34010	Cushion(For Stop Lamp Switch)	Brake Pedal & Bracket ([08.2004 - ] (0408- )6F)
47144-34010	Collar(For Brake Pedal Shaft)	Brake Pedal & Bracket ([08.2004 - ] (0408- )6F)
55106-34020	Support Sub-Assy, Brake Pedal	Brake Pedal & Bracket ([08.2004 - ] (0408- )6F)
55106-34060	Support Sub-Assy, Brake Pedal	Brake Pedal & Bracket ([08.2004 - ] (0408- )6F)
90080-11378	New Genuine Part	Brake Pedal & Bracket ([08.2004 - ] (0408- )6F)
90105-08370	New Genuine Part	Brake Pedal & Bracket ([08.2004 - ] (0408- )6F)
90105-08371	New Genuine Part	Brake Pedal & Bracket ([08.2004 - ] (0408- )6F)
90179-08197	Nut, No.1 (For Propeller Shaft & Differential Setting)	Brake Pedal & Bracket ([08.2004 - ] (0408- )6F)
90240-06023	Pin(For Push Rod)	Brake Pedal & Bracket ([08.2004 - ] (0408- )6F)
90240-10037	Pin(For Push Rod)	Brake Pedal & Bracket ([08.2004 - ] (0408- )6F)
90249-06171	Pin, Brake Pedal Link	Brake Pedal & Bracket ([08.2004 - ] (0408- )6F)
90249-06172	Pin, Brake Pedal Link	Brake Pedal & Bracket ([08.2004 - ] (0408- )6F)
90386-14015	Bush(For Clutch Pedal)	Brake Pedal & Bracket ([08.2004 - ] (0408- )6F)
90387-08156	Collar, Brake Pedal Shaft, No.2	Brake Pedal & Bracket ([08.2004 - ] (0408- )6F)
90387-08157	Collar(For Brake Pedal Bracket)	Brake Pedal & Bracket ([08.2004 - ] (0408- )6F)
90468-15005	CLIP	Brake Pedal & Bracket ([08.2004 - ] (0408- )6F)
90541-06036	Cushion, No.1(For Clutch Pedal)	Brake Pedal & Bracket ([08.2004 - ] (0408- )6F)
90905-07023	Spring(For Brake Pedal Return)	Brake Pedal & Bracket ([08.2004 - ] (0408- )6F)
96160-00400	Ring, E(For Release Arm)	Brake Pedal & Bracket ([08.2004 - ] (0408- )6F)
