Search › Model › GSJ15
GSJ15

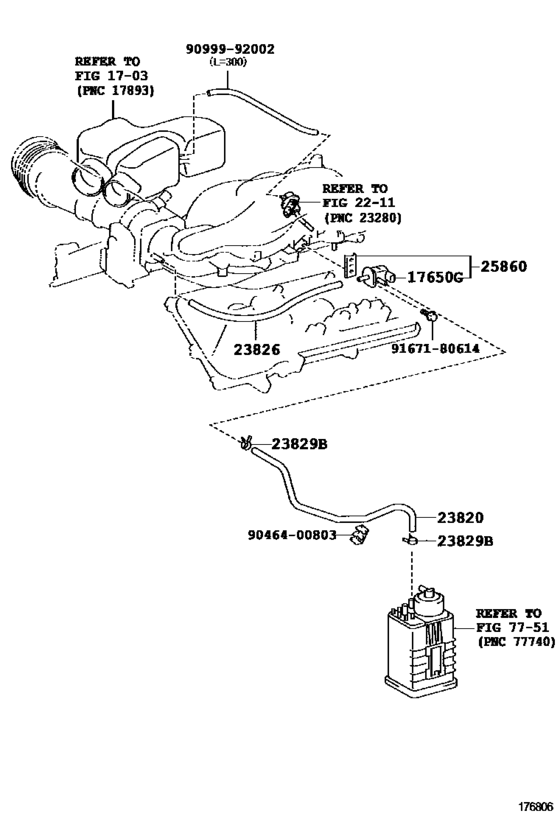

Vacuum Piping ([08.2009 - ] (0908- )) 10
| # | OEM | Part name |
|---|---|---|
| 17650 | 90910-12276 | Valve, Duty Vacuum Switching |
| 23820 | 23820-31200 | Hose Assy, Fuel Vapor Feed |
| 23820 | 23820-31210 | Hose Assy, Fuel Vapor Feed |
| 23826 | 23826-31160 | Hose, Fuel Vapor Feed, No.1 |
| 23829 | 90466-11003 | Clamp Or Clip(For Radiator Reserve Tank Hose) |
| 23829 | 90466-A0001 | Clip(For Fuel Vapor Feed Hose, No.1) |
| 25860 | 25860-36020 | Valve Assy, Vacuum Switching, No.1 |
| 9046400803 | 90464-00803 | New Genuine Part |
| 9099992002 | 90999-92002 | Air Hose (300 mm) |
| 9167180614 | 91671-80614 | Bolt (For Transmission Control Cable Bracket) |
| OEM | Part name | Category |
|---|---|---|
| 23820-31200 | Hose Assy, Fuel Vapor Feed | Vacuum Piping ([08.2009 - ] (0908- )) |
| 23820-31210 | Hose Assy, Fuel Vapor Feed | Vacuum Piping ([08.2009 - ] (0908- )) |
| 23826-31160 | Hose, Fuel Vapor Feed, No.1 | Vacuum Piping ([08.2009 - ] (0908- )) |
| 25860-36020 | Valve Assy, Vacuum Switching, No.1 | Vacuum Piping ([08.2009 - ] (0908- )) |
| 90464-00803 | New Genuine Part | Vacuum Piping ([08.2009 - ] (0908- )) |
| 90466-11003 | Clamp Or Clip(For Radiator Reserve Tank Hose) | Vacuum Piping ([08.2009 - ] (0908- )) |
| 90466-A0001 | Clip(For Fuel Vapor Feed Hose, No.1) | Vacuum Piping ([08.2009 - ] (0908- )) |
| 90910-12276 | Valve, Duty Vacuum Switching | Vacuum Piping ([08.2009 - ] (0908- )) |
| 90999-92002 | Air Hose (300 mm) | Vacuum Piping ([08.2009 - ] (0908- )) |
| 91671-80614 | Bolt (For Transmission Control Cable Bracket) | Vacuum Piping ([08.2009 - ] (0908- )) |
