GSJ15

Toyota FJ-CRUISER · 2006 · 4,222 parts · 196 categories
GSJ15 ×

← Back to categories

4,222 items

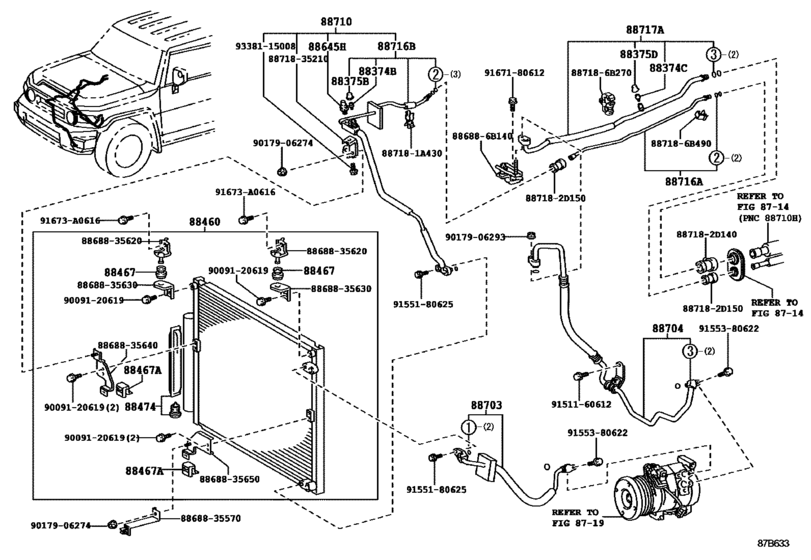

Heating & Air Conditioning - Cooler Piping ([08.2009 - ] (0908- )ARL,CHI,GEN,SA) 36
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88460 88460-35380 Condenser Assy, Cooler
88467 88467-28050 Cushion, Cooler Condenser, No.1
88467 88467-35080 Cushion, Cooler Condenser, No.1
88474 88474-17010 Dryer, Cooler
88645 88645-34010 Switch, Pressure
88645 88645-04040 Switch, Pressure
88703 88703-35052 Hose Sub-Assy, Discharge
88704 88704-35080 Hose Sub-Assy, Suction
88710 88710-35700 Tube Assy, Air Conditioner - AIRCONDITIONER
88716 88716-35740 Pipe, Cooler Refrigerant Liquid, A
88716 88716-35730 Pipe, Cooler Refrigerant Liquid, B
88717 88717-35240 Pipe, Cooler Refrigerant Suction, A
91673 91673-A0616 BOLT, FLANGE
886886 88688-6B140 Bracket, Cooler Condenser, No.1
887181 88718-1A430 Clamp(For Cooler Refrigerant Pipe), No.1
887182 88718-2D140 Clamp(For Cooler Refrigerant Pipe), No.1
887182 88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1
887186 88718-6B270 Pipe, Cooler Refrigerant Suction, No.2
887186 88718-6B490 Pipe, Cooler Refrigerant Suction, No.2
8868835570 88688-35570 Bracket, Cooler Condenser, No.1
8868835620 88688-35620 Bracket, Cooler Diaphragm
8868835630 88688-35630 Bracket, Cooler Diaphragm
8868835640 88688-35640 Bracket, Cooler Diaphragm
8868835650 88688-35650 Bracket, Cooler Diaphragm
8871835210 88718-35210 Pipe, Cooler Refrigerant Suction, No.2
9009120619 90091-20619 BOLT
9017906274 90179-06274 Nut
9017906293 90179-06293 NUT
9151160612 91511-60612 BOLT
9155180625 91551-80625 Bolt(For Camshaft Housing Set)
9155380622 91553-80622 BOLT FLANGE
9167180612 91671-80612 Bolt
9338115008 93381-15008 SCREWWWASHER
