Search › Model › GSJ15

GSJ15

Toyota FJ-CRUISER · 2006 · 4,222 parts · 196 categories

4,222 items

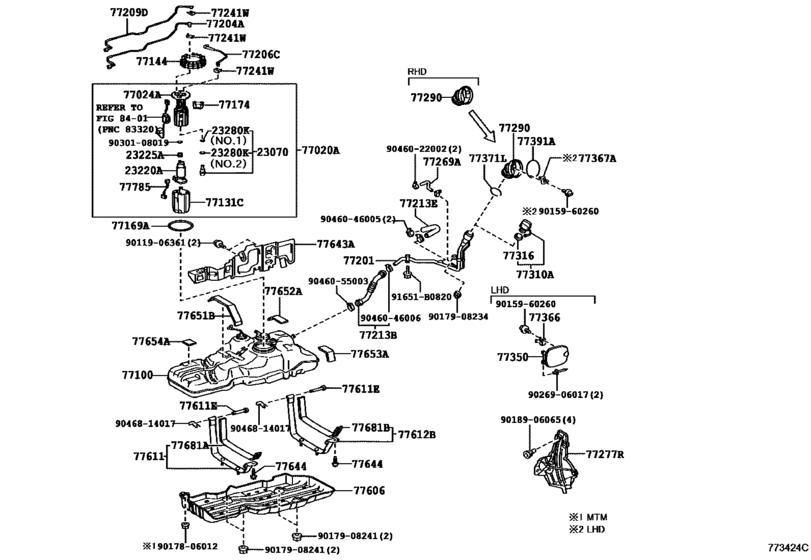

Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA) 69

#	OEM	Part name
23070	23070-31010	Valve Assy, Fuel Main
23220	23220-31430	Pump Assy, Fuel W/filter
23220	23220-31460	Pump Assy, Fuel W/filter
23225	23225-23010	Spacer, Fuel Pump
23280	90301-04013	Ring, O(For Fuel Pump)
23280	90301-15024	Ring, O(For Fuel Pump)
77020	77020-35180	Tube Assy, Fuel Suction W/pump & Gage
77020	77020-35181	Tube Assy, Fuel Suction W/pump & Gage
77020	77020-35200	Tube Assy, Fuel Suction W/pump & Gage
77024	77024-60260	Plate Sub-Assy, Fuel Suction
77024	77024-60270	Plate Sub-Assy, Fuel Suction
77100	77001-35A10	Tank Assy, Fuel
77100	77001-35A11	Tank Assy, Fuel
77100	77001-35A40	Tank Assy, Fuel
77100	77001-35A41	Tank Assy, Fuel
77131	77131-60090	Sub-Tank, Fuel, No.1
77144	77144-35010	Retainer, Fuel Pump Gauge
77169	77169-47030	Gasket, Fuel Suction Tube Set
77174	77174-60020	Support, Fuel Suction, No.1
77201	77201-35810	Pipe Sub-Assy, Fuel Tank Inlet
77201	77201-35830	Pipe Sub-Assy, Fuel Tank Inlet
77201	77201-35860	Pipe Sub-Assy, Fuel Tank Inlet
77204	77204-35080	Tube, Fuel Tank Return
77206	77206-60530	Tube Sub-Assy, Fuel Main, No.2
77209	77209-35450	Tube Sub-Assy, Fuel Tank Main
77213	77213-35380	Hose, Fuel Tank To Filler Pipe
77213	77213-35400	Hose, Fuel Tank To Filler Pipe
77241	77241-33011	Clip, Tube Joint
77269	77269-35040	Hose, Fuel Tank Breather
77277	77277-35031	Protector, Fuel Tank Filler Pipe
77290	77291-35160	Shield Assy, Fuel Tank Filler Pipe
77310	77300-52030	Cap Assy, Fuel Tank
77316	77316-52040	Gasket, Fuel Tank Cap
77350	77350-35080	Lid Assy, Fuel Filler Opening
77366	77360-30070	Spring, Fuel Filler Opening Lid Hinge
77366	77360-0R010	Spring Assy, Charging Port Opening Lid
77371	77371-35010	Ring, Fuel Tank Filler Pipe Shield
77391	77391-12010	Ring, Fuel Inlet Box
77606	77606-35070	Protector Sub-Assy, Fuel Tank, No.1
77611	77601-35110	Band, Fuel Tank
77611	77653-35040	Pin (For Fuel Tank Band)
77612	77602-35050	Band, Fuel Tank, No.2
77643	77643-35050	Protector, Fuel Tank, No.3
77644	77644-35030	Bolt, Fuel Tank
77644	77644-60020	Bolt, Fuel Tank
77651	77651-35070	Cushion, Fuel Tank
77652	77652-35060	Cushion, Fuel Tank, No.2
77653	77653-35050	Cushion, Fuel Tank, No.3
77654	77654-35010	Cushion, Fuel Tank, No.4
77681	77681-35060	Seat, Fuel Tank Band
77681	77681-35041	Seat, Fuel Tank Band
77785	77785-60020	Harness, Fuel Pump
77785	77785-60021	HARNESS FUEL PUMP
91651	91651-B0820	Bolt, Radiator Side Support Plate
91651	90080-11347	New Genuine Part
9011906361	90119-06361	BOLT WWASHER
9015960260	90159-60260	SCREW
9017806012	90178-06012	NUT FLANGE
9017908234	90179-08234	NUT
9017908241	90179-08241	NUT
9018906065	90189-06065	CLIP
9026906017	90269-06017	RIVET
9030108019	90301-08019	Ring, O(For Fuel Pressure Regulator)
9046022002	90460-22002	CLAMP
9046022002	90460-22001	CLAMP
9046046005	90460-46005	Clamp (For Fuel Filler Pipe)
9046046006	90460-46006	Clamp (For Fuel Filler Pipe)
9046055003	90460-55003	Clamp Or Clip(For Air Hose, No.1)
9046814017	90468-14017	Clip, No.2(For Parking Brake)

OEM	Part name	Category
23070-31010	Valve Assy, Fuel Main	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
23220-31430	Pump Assy, Fuel W/filter	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
23220-31460	Pump Assy, Fuel W/filter	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
23225-23010	Spacer, Fuel Pump	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77001-35A10	Tank Assy, Fuel	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77001-35A11	Tank Assy, Fuel	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77001-35A40	Tank Assy, Fuel	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77001-35A41	Tank Assy, Fuel	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77020-35180	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77020-35181	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77020-35200	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77024-60260	Plate Sub-Assy, Fuel Suction	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77024-60270	Plate Sub-Assy, Fuel Suction	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77131-60090	Sub-Tank, Fuel, No.1	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77144-35010	Retainer, Fuel Pump Gauge	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77169-47030	Gasket, Fuel Suction Tube Set	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77174-60020	Support, Fuel Suction, No.1	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77201-35810	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77201-35830	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77201-35860	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77204-35080	Tube, Fuel Tank Return	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77206-60530	Tube Sub-Assy, Fuel Main, No.2	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77209-35450	Tube Sub-Assy, Fuel Tank Main	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77213-35380	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77213-35400	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77241-33011	Clip, Tube Joint	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77269-35040	Hose, Fuel Tank Breather	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77277-35031	Protector, Fuel Tank Filler Pipe	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77291-35160	Shield Assy, Fuel Tank Filler Pipe	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77300-52030	Cap Assy, Fuel Tank	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77316-52040	Gasket, Fuel Tank Cap	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77350-35080	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77360-0R010	Spring Assy, Charging Port Opening Lid	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77360-30070	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77371-35010	Ring, Fuel Tank Filler Pipe Shield	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77391-12010	Ring, Fuel Inlet Box	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77601-35110	Band, Fuel Tank	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77602-35050	Band, Fuel Tank, No.2	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77606-35070	Protector Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77643-35050	Protector, Fuel Tank, No.3	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77644-35030	Bolt, Fuel Tank	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77644-60020	Bolt, Fuel Tank	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77651-35070	Cushion, Fuel Tank	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77652-35060	Cushion, Fuel Tank, No.2	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77653-35040	Pin (For Fuel Tank Band)	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77653-35050	Cushion, Fuel Tank, No.3	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77654-35010	Cushion, Fuel Tank, No.4	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77681-35041	Seat, Fuel Tank Band	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77681-35060	Seat, Fuel Tank Band	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77785-60020	Harness, Fuel Pump	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
77785-60021	HARNESS FUEL PUMP	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
90080-11347	New Genuine Part	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
90119-06361	BOLT WWASHER	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
90159-60260	SCREW	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
90178-06012	NUT FLANGE	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
90179-08234	NUT	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
90179-08241	NUT	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
90189-06065	CLIP	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
90269-06017	RIVET	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
90301-04013	Ring, O(For Fuel Pump)	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
90301-08019	Ring, O(For Fuel Pressure Regulator)	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
90301-15024	Ring, O(For Fuel Pump)	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
90460-22001	CLAMP	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
90460-22002	CLAMP	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
90460-46005	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
90460-46006	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
90460-55003	Clamp Or Clip(For Air Hose, No.1)	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
90468-14017	Clip, No.2(For Parking Brake)	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
91651-B0820	Bolt, Radiator Side Support Plate	Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA)
