| 23264-31011 |
Bracket |

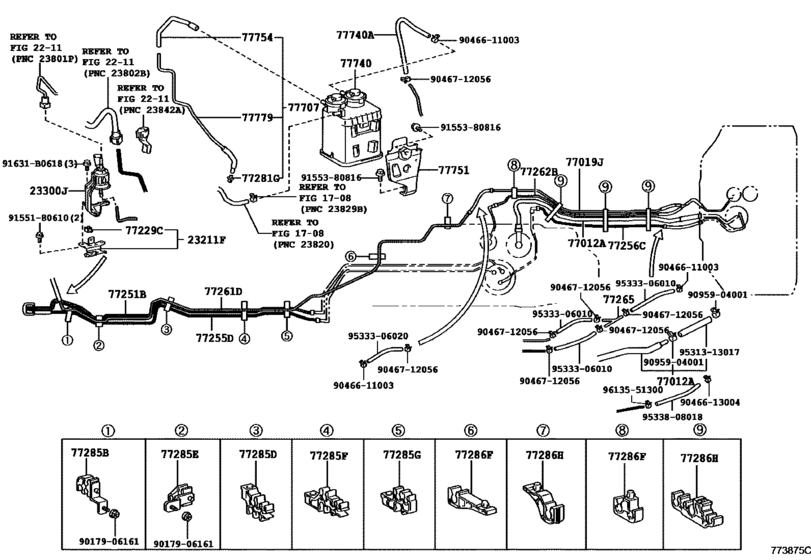

Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 23300-31160 |
Filter Assy, Fuel |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77012-35140 |
Tube Sub-Assy, Fuel Tank Breather, No.1 |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77205-35320 |
Tube, Fuel Main |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77205-6A340 |
Tube, Fuel Main |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77229-33090 |
Clamp, Breather Tube |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77255-35A00 |
Tube, Fuel Return, No.2 |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77255-35A30 |
Tube, Fuel Return, No.2 |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77255-60B80 |
Tube, Fuel Return |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77261-35620 |
Tube Sub-Assy, Fuel Tank To Canister |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77261-35630 |
Tube, Fuel Tank To Canister |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77261-35660 |
Tube, Fuel Tank To Canister |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77261-35690 |
Tube Sub-Assy, Fuel Tank To Canister |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77262-35130 |
Tube, Fuel Tank To Canister, No.2 |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77262-35150 |
Tube, Fuel Tank To Canister, No.2 |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77281-60430 |
Clamp, Fuel Hose |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77285-35610 |
Clamp, Fuel Tube, No.1 |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77285-35620 |
Clamp, Fuel Tube, No.1 |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77285-35631 |
Clamp, Fuel Tube W/grommet, No.1 |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77285-35641 |
Clamp, Fuel Tube W/grommet, No.1 |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77285-35670 |
Clamp, Fuel Tube, No.1 |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77285-35680 |
Clamp, Fuel Tube, No.1 |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77285-35690 |
Clamp, Fuel Tube, No.1 |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77285-35860 |
Clamp, Fuel Tube, No.3 |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77285-35880 |
Clamp, Fuel Tube, No.3 |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77297-60030 |
Connector, Fuel Main Tube - FUEL TUBE |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77704-60330 |
Canister Assy, Charcoal |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77704-63010 |
Canister Sub-Assy, Charcoal |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77707-60041 |
Tube Sub-Assy, Charcoal Canister Outlet |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77707-60051 |
Tube Sub-Assy, Charcoal Canister Outlet |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77751-60290 |
Bracket, Charcoal Canister Base |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77751-60340 |
Bracket, Charcoal Canister Base |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77754-60370 |
Hose, Charcoal Canister Outlet, No.1 |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77754-60380 |
Hose, Charcoal Canister Outlet, No.1 |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77779-60071 |
Tube, Charcoal Canister Outlet |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 77779-60081 |
Tube, Charcoal Canister Outlet |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 90179-06161 |
Bolt, Union(For Clutch Accumulator) |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 90466-11003 |
Clamp Or Clip(For Radiator Reserve Tank Hose) |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 90466-13004 |
Clip(For Fuel Vapor Feed Hose, No.1) |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 90466-A0001 |
Clip(For Fuel Vapor Feed Hose, No.1) |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 90466-T0048 |
New Genuine Part |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 90467-12056 |
Clamp Or Clip(For Throttle Body Hose) |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 90959-04001 |
Clip, Fuel Hose |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 91551-80610 |
BOLT FLANGE |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 91553-80816 |
Bolt (For Transmission Control Cable Bracket) |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 91631-B0618 |
BOLT WWASHER |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 95313-13017 |
Hose, Fuel, No.1(For Fuel Tank Inlet Pipe) |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 95333-06010 |
Hose, Fuel |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 95333-06020 |
Hose, Fuel(For Injection Pump To Fuel Pipe) |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 95333-06030 |
Hose, Fuel |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 95333-06040 |
Hose |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 95337-06020 |
Hose, Differential Pressure Control |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 95338-06030 |
HOSE, FUEL |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 95338-08018 |
Hose, Fuel, No.2 (For Fuel Return Tube) - FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE) |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
| 96135-51300 |
Clamp, Hose |
Fuel Tank & Tube ([11.2012 - 03.2014] FUEL TUBE,W(SUB TANK) (1211-1403)ARL,GEN,SA) |
