GSJ15

Toyota FJ-CRUISER · 2006 · 4,222 parts · 196 categories
GSJ15 ×

← Back to categories

4,222 items

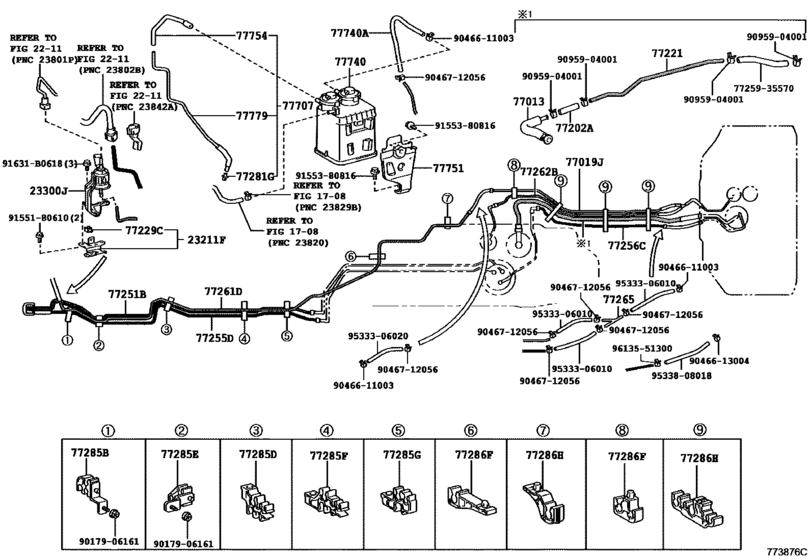

Fuel Tank & Tube ([03.2014 - 08.2016] FUEL TUBE,W(SUB TANK) (1403-1608)ARL,GEN,SA) 57
#OEMPart name
23211 23264-31011 Bracket
23300 23300-31160 Filter Assy, Fuel
77013 77013-35030 Tube Sub-Assy, Fuel Tank Breather, No.2
77019 77261-35620 Tube Sub-Assy, Fuel Tank To Canister
77019 77261-35690 Tube Sub-Assy, Fuel Tank To Canister
77202 77269-35050 Hose, Fuel, No.1 (For Breather Tube)
77221 77221-35390 Tube, Fuel Tank Breather, No.1
77221 77221-35400 Tube, Fuel Tank Breather, No.1
77229 77229-33090 Clamp, Breather Tube
77251 77205-35320 Tube, Fuel Main
77251 77205-6A340 Tube, Fuel Main
77255 77255-60B80 Tube, Fuel Return
77256 77255-35A00 Tube, Fuel Return, No.2
77256 77255-35A30 Tube, Fuel Return, No.2
77261 77261-35630 Tube, Fuel Tank To Canister
77261 77261-35660 Tube, Fuel Tank To Canister
77262 77262-35130 Tube, Fuel Tank To Canister, No.2
77262 77262-35150 Tube, Fuel Tank To Canister, No.2
77265 77297-60030 Connector, Fuel Main Tube - FUEL TUBE
77281 77281-60430 Clamp, Fuel Hose
77285 77285-35631 Clamp, Fuel Tube W/grommet, No.1
77285 77285-35670 Clamp, Fuel Tube, No.1
77285 77285-35641 Clamp, Fuel Tube W/grommet, No.1
77285 77285-35680 Clamp, Fuel Tube, No.1
77285 77285-35690 Clamp, Fuel Tube, No.1
77286 77285-35610 Clamp, Fuel Tube, No.1
77286 77285-35620 Clamp, Fuel Tube, No.1
77286 77285-35860 Clamp, Fuel Tube, No.3
77286 77285-35880 Clamp, Fuel Tube, No.3
77707 77707-60041 Tube Sub-Assy, Charcoal Canister Outlet
77707 77707-60051 Tube Sub-Assy, Charcoal Canister Outlet
77740 77704-60330 Canister Assy, Charcoal
77740 77704-63010 Canister Sub-Assy, Charcoal
77740 95333-06030 Hose, Fuel
77740 95338-06030 HOSE, FUEL
77740 95333-06040 Hose
77751 77751-60290 Bracket, Charcoal Canister Base
77751 77751-60340 Bracket, Charcoal Canister Base
77754 77754-60370 Hose, Charcoal Canister Outlet, No.1
77754 77754-60380 Hose, Charcoal Canister Outlet, No.1
77779 77779-60071 Tube, Charcoal Canister Outlet
77779 77779-60081 Tube, Charcoal Canister Outlet
91631 91631-B0618 BOLT WWASHER
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9046611003 90466-11003 Clamp Or Clip(For Radiator Reserve Tank Hose)
9046611003 90466-A0001 Clip(For Fuel Vapor Feed Hose, No.1)
9046613004 90466-13004 Clip(For Fuel Vapor Feed Hose, No.1)
9046712056 90467-12056 Clamp Or Clip(For Throttle Body Hose)
9046712056 90466-T0048 New Genuine Part
9095904001 90959-04001 Clip, Fuel Hose
9155180610 91551-80610 BOLT FLANGE
9155380816 91553-80816 Bolt (For Transmission Control Cable Bracket)
9533306010 95333-06010 Hose, Fuel
9533306020 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
9533306020 95337-06020 Hose, Differential Pressure Control
9533808018 95338-08018 Hose, Fuel, No.2 (For Fuel Return Tube) - FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE)
9613551300 96135-51300 Clamp, Hose
